Sunroof / Moonroof Module




Component Connector End Views

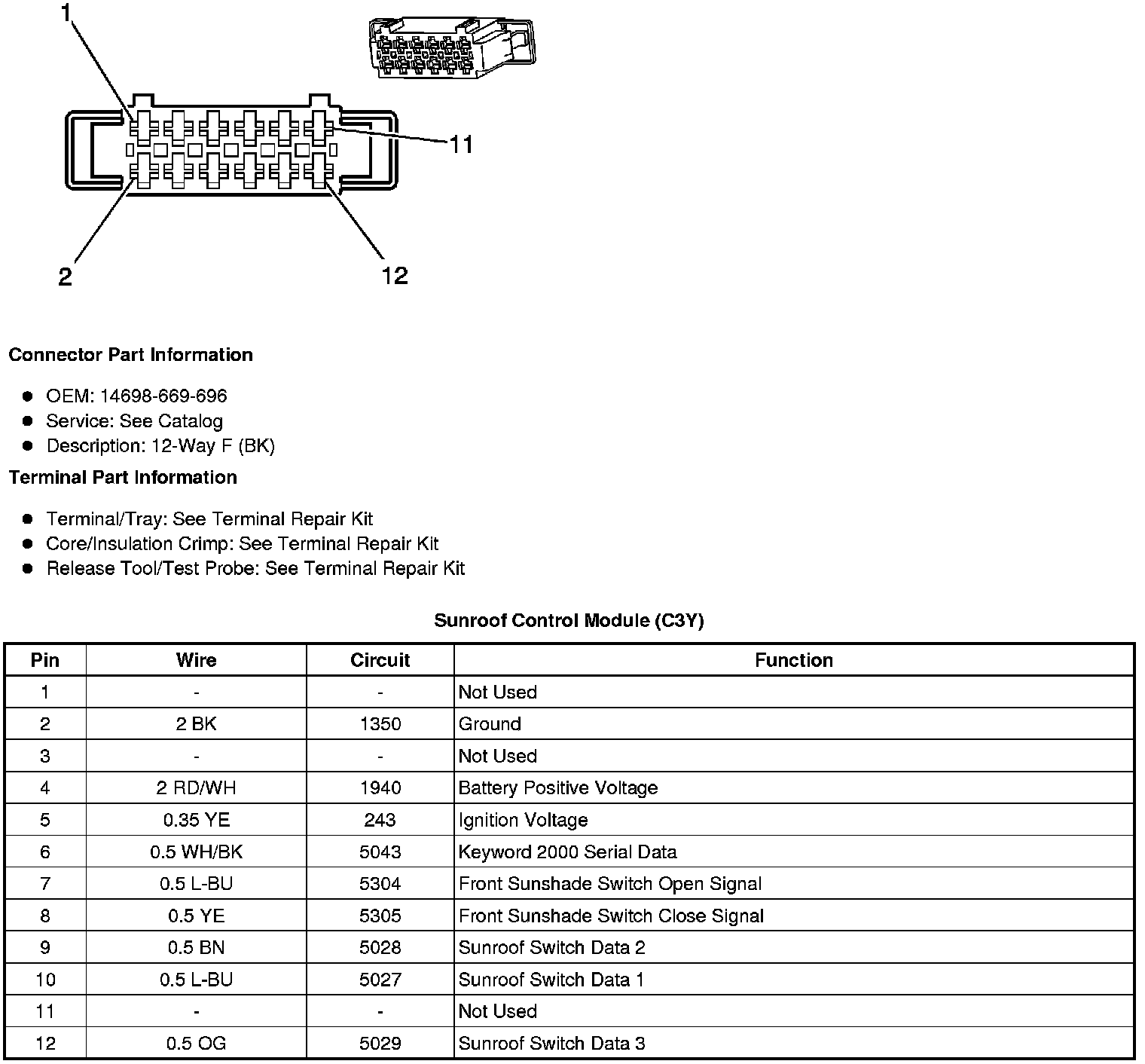

Sunroof Control Module (C3Y)

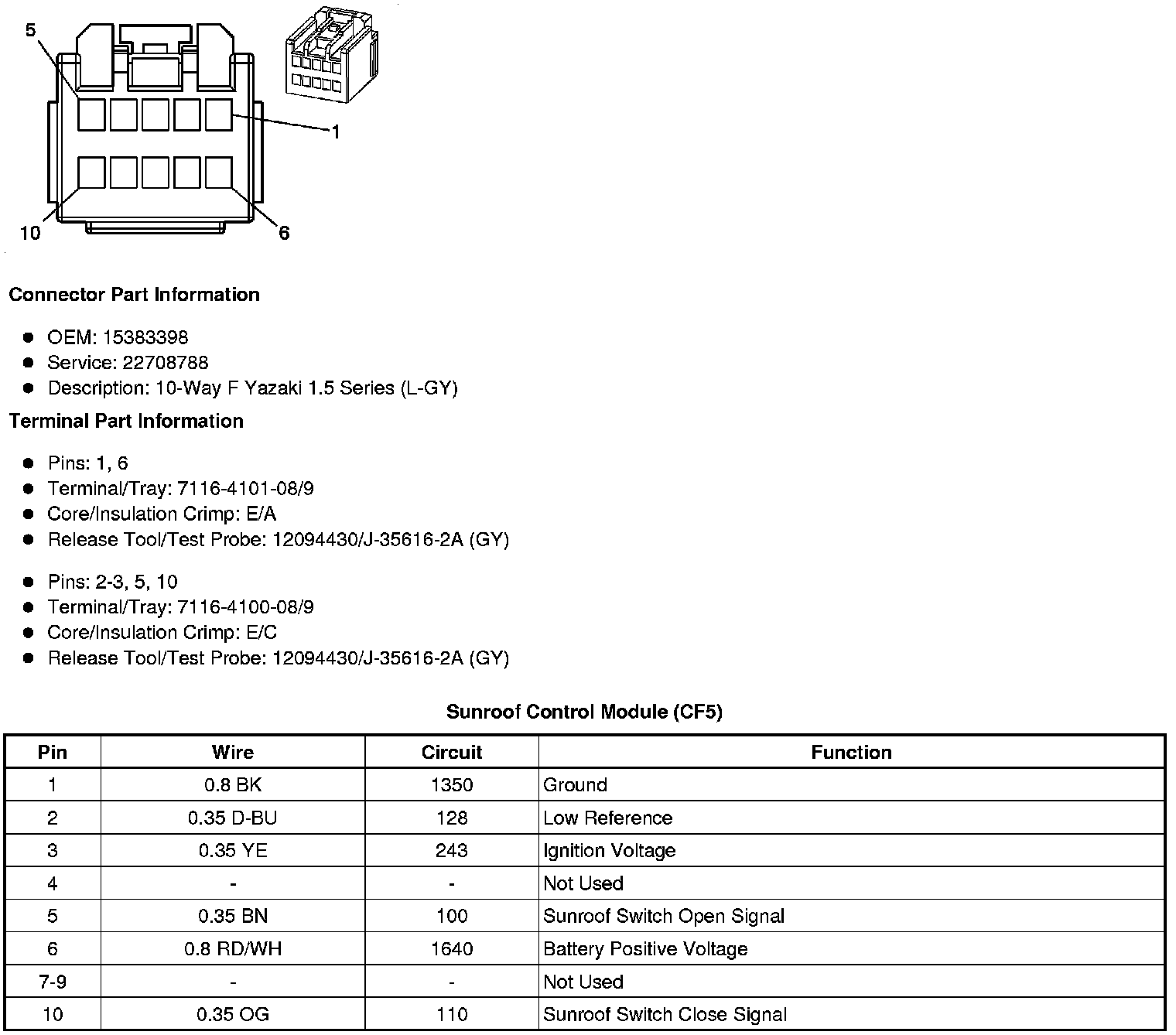

Sunroof Control Module (CF5)

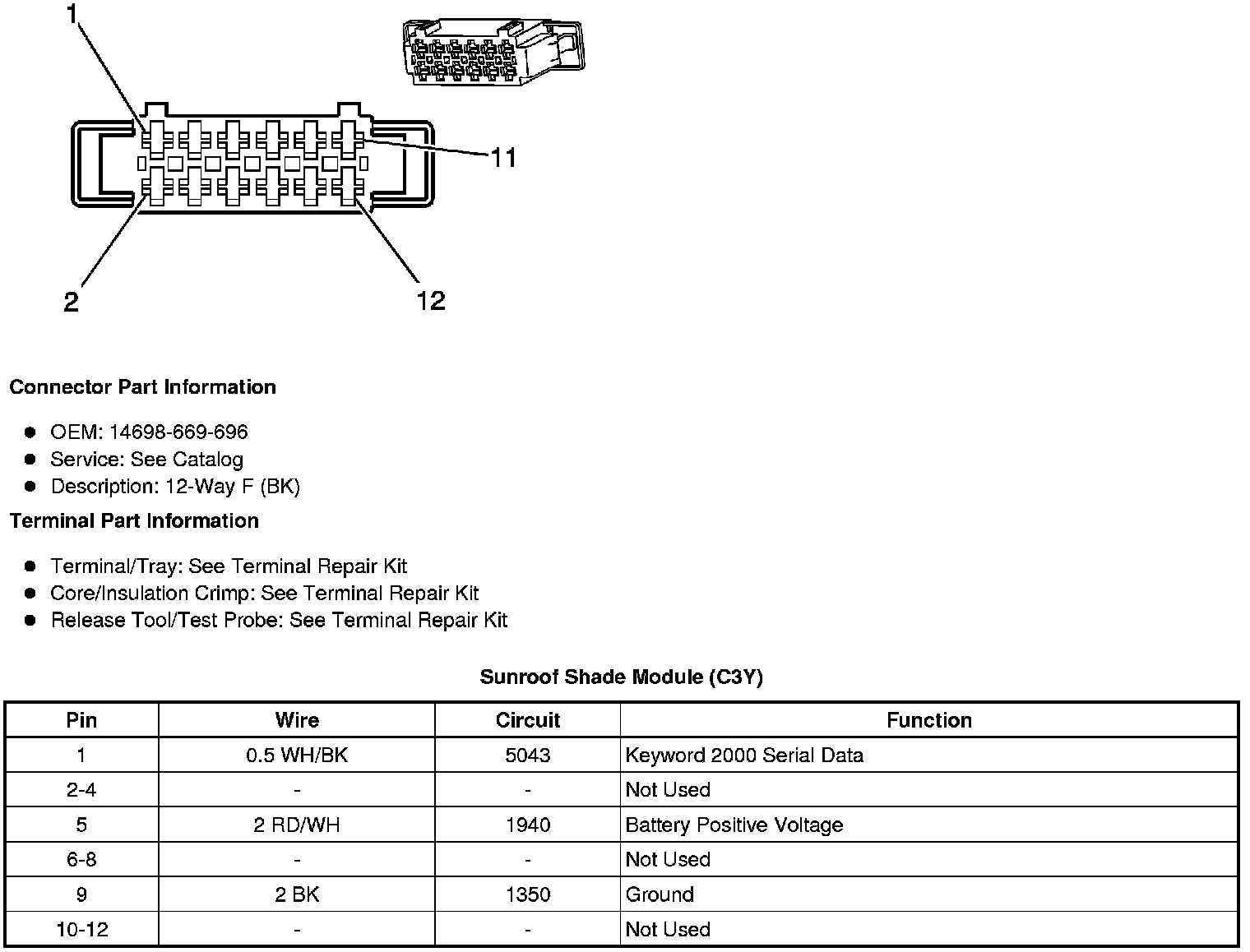

Sunroof Shade Module (C3Y)
