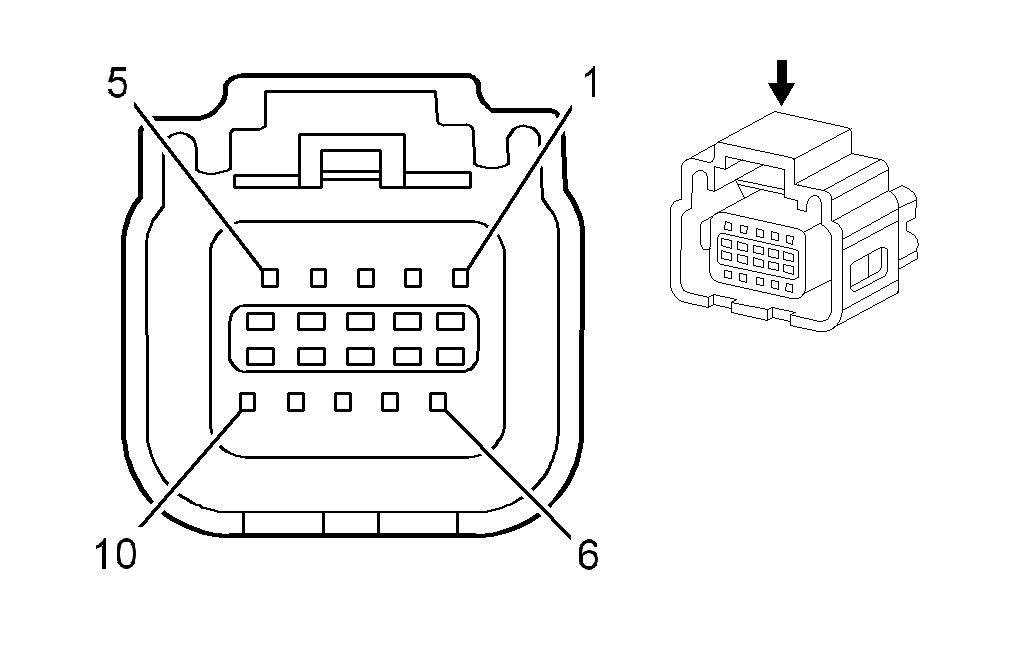

Inflatable Restraint Front Passenger Presence System (PPS) Module X1
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Front Passenger Presence System (PPS) Module X1
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.35 WH/PK |
3940 |
PPS Supply Voltage |
| 2 |
0.5 BK/WH |
1751 |
Ground |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 D-GN/RD |
5060 |
Low Speed GMLAN Serial Data |
| 5-10 |
- |
- |
Not Used |
Connector Part Information
- OEM: 28032115
- Service: See Catalog
- Description: 10-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
