Accelerator Pedal Position (APP) Sensor

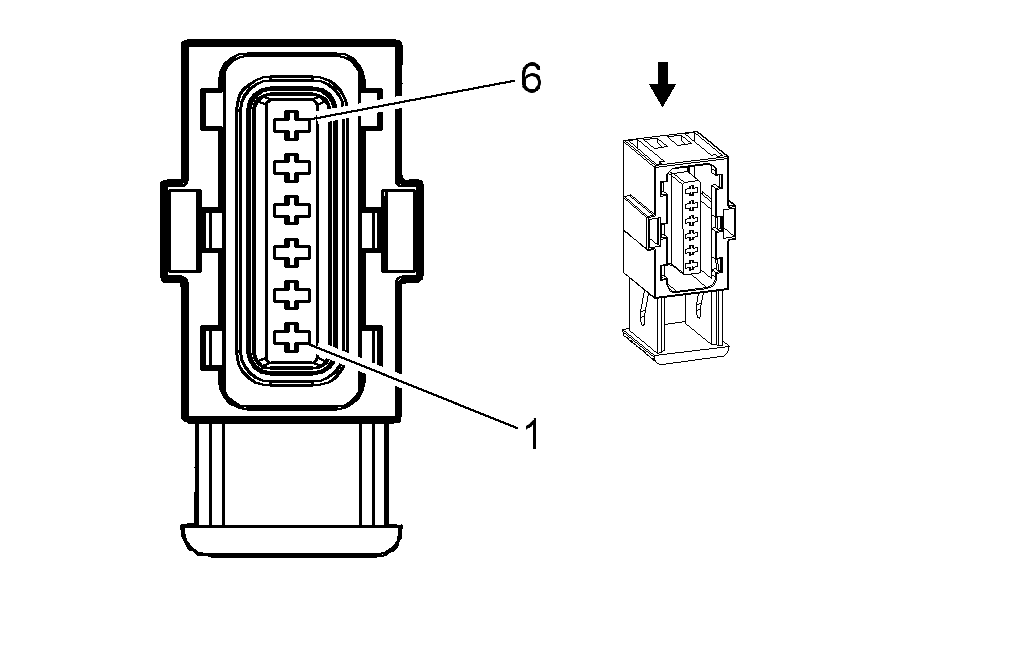

Courtesy of GENERAL MOTORS CORP. Accelerator Pedal Position (APP) Sensor
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.5 BN/YE |
1274 |
5-Volt Reference |
| 2 |
0.5 WH/BK |
1164 |
5-Volt Reference |
| 3 |
0.5 D-BU/WH |
1161 |
APP Sensor 1 Signal |
| 4 |
0.5 BN |
1271 |
Low Reference |
| 5 |
0.5 PU |
1272 |
Low Reference |
| 6 |
0.5 L-BU |
1162 |
APP Sensor 2 Signal |
Connector Part Information
- OEM: 7283-6463-30
- Service: See Catalog
- Description: 6-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: 4-964274-1/25
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)
|
