Blower Motor Control Module
Courtesy of GENERAL MOTORS CORP. Blower Motor Control Module
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
3 BK |
850 |
Ground |
| 2 |
0.5 GY/BK |
754 |
Blower Motor Speed Control |
| 3 |
3 PU |
65 |
Blower Motor Supply Voltage |
| 4 |
3 OG |
5987 |
Blower Motor Low Reference |

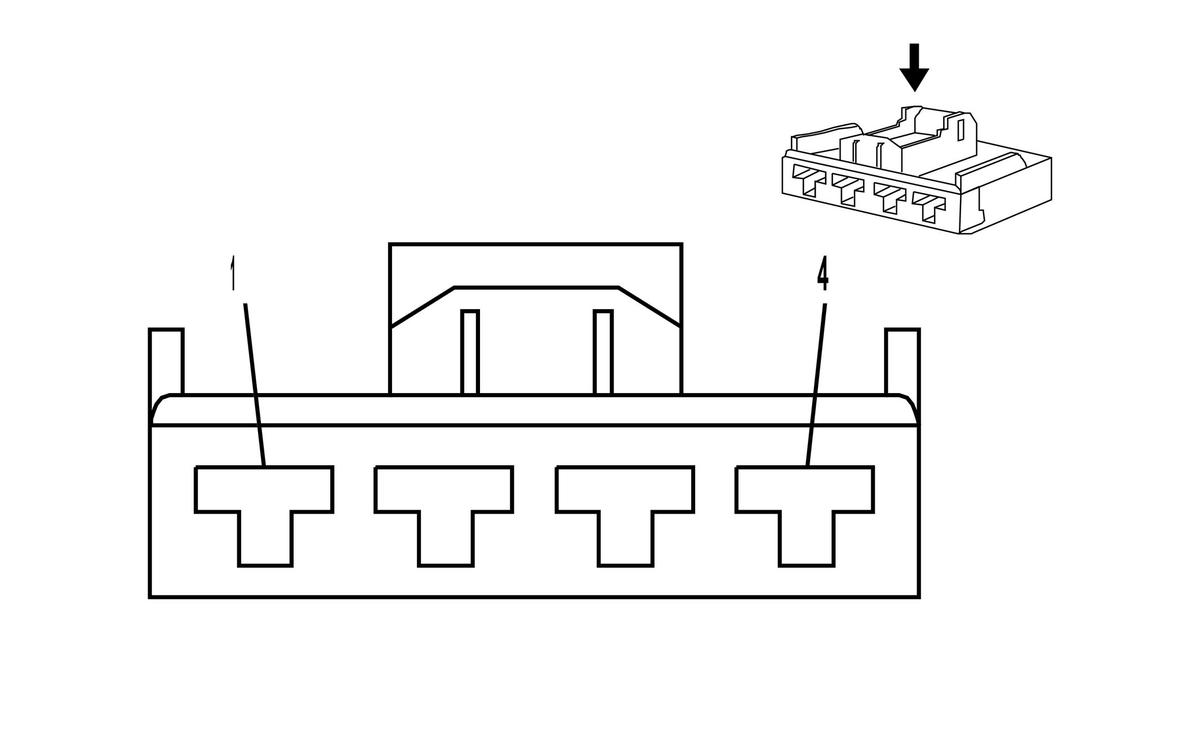

Connector Part Information
- OEM: 7283-3141-30
- Service: See Catalog
- Description: 4-Way F (BK)
|
Terminal Part Information
- Pins: 1, 3, 4
- Terminal/Tray: 7116-6041/11
- Core/Insulation Crimp: A/B
- Release Tool/Test Probe: 12094430/J-35616-44 (YE)
- Pin: 2
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
