Inflatable Restraint Roof Rail Module - Right

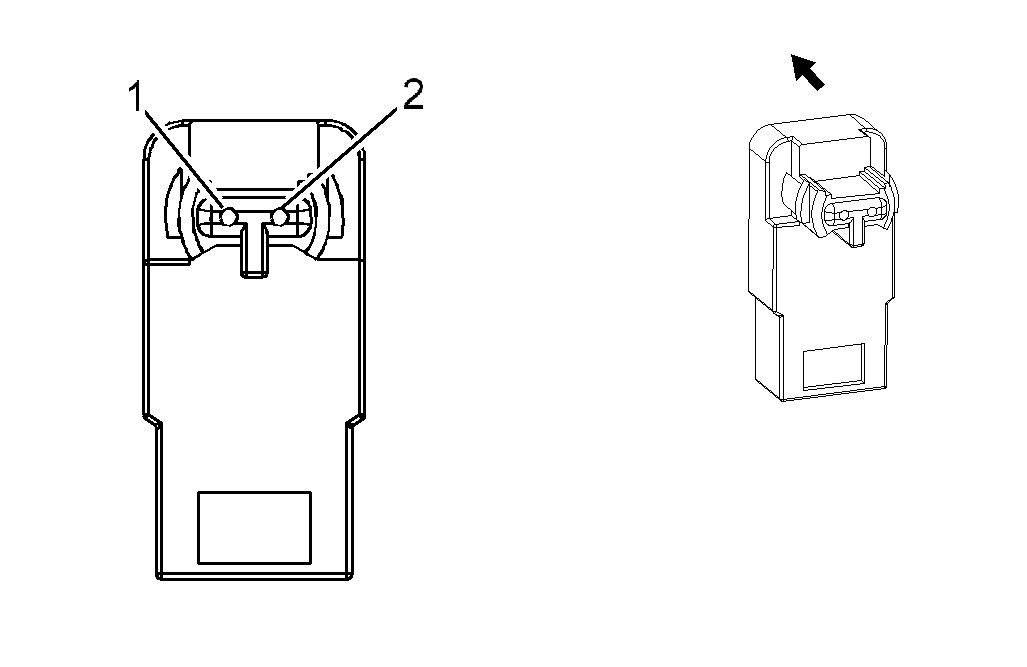

Fig 1: Inflatable Restraint Roof Rail Module - Right Connector End View
GM1989454Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Roof Rail Module - Right

Pin Wire Color Circuit No. Function
1 0.5 PU/YE 5021 Roof Rail Module - Right - High Control
2 0.5 WH/BK 5022 Roof Rail Module - Right - Low Control
Connector Part Information
  • OEM: 7335-6471
  • Service: See Catalog
  • Description: 2-Way M (GN)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
