Steering Angle Sensor

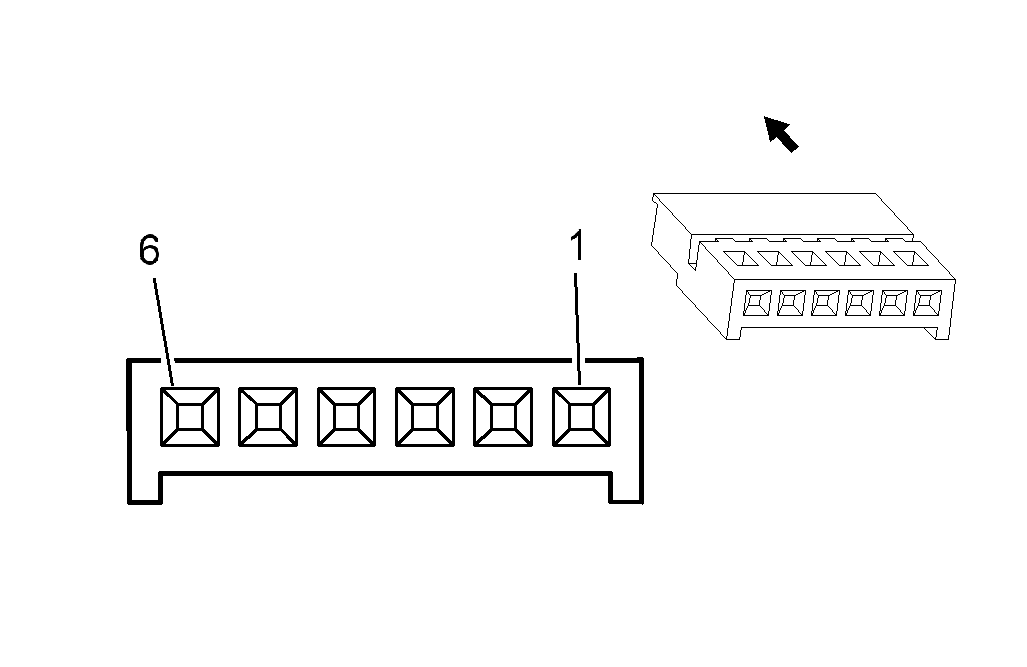

Fig 1: Steering Angle Sensor Connector End View
GM1989572Courtesy of GENERAL MOTORS CORP.
Steering Angle Sensor

Pin Wire Color Circuit No. Function
1 0.5 PU 2501 High Speed GMLAN Serial Data Bus (-)
2 0.5 D-BU 2501 High Speed GMLAN Serial Data Bus (-)
3 0.5 GY 2500 High Speed GMLAN Serial Data Bus (+)
4 0.5 BN 2500 High Speed GMLAN Serial Data Bus (+)
5 0.5 L-GN 5986 Communication Enable Relay Supply Voltage
6 0.5 OG 2088 Steering Wheel Position Sensor Low Reference
  • OEM: 7282-7166
  • Service: See Catalog
  • Description: 6-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 7114-4020/10
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-19 (BK)
