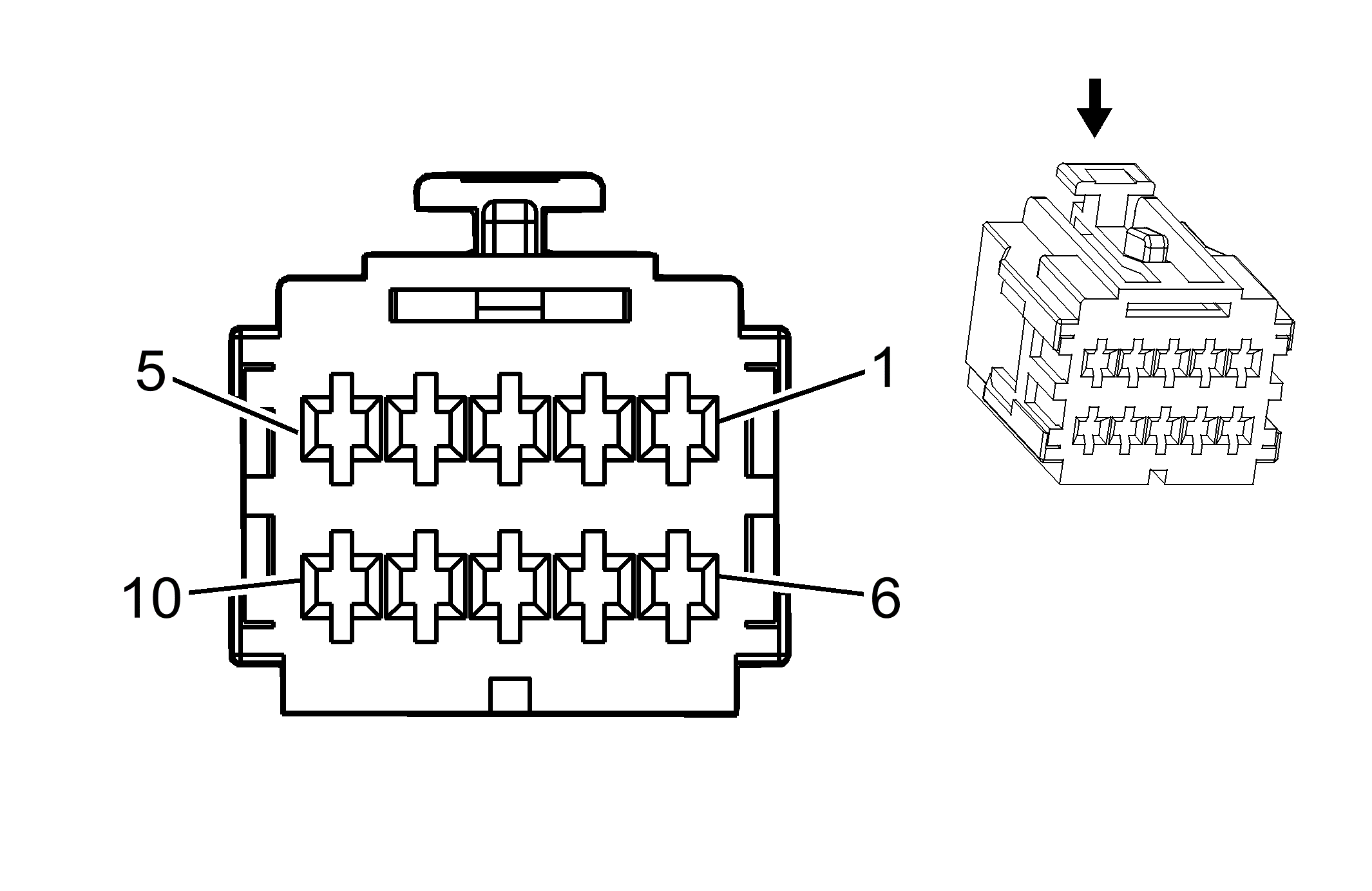

Sunroof Control Module (CF5)
Courtesy of GENERAL MOTORS CORP. Sunroof Control Module (CF5)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
1.25 BK |
850 |
Ground |
| 2 |
0.3 D-GN |
5027 |
Sunroof Switch - Data 1 |
| 3 |
0.3 YE |
5028 |
Sunroof Switch - Data 2 |
| 4 |
0.3 OG |
5029 |
Sunroof Switch - Data 3 |
| 5 |
0.3 WH |
5030 |
Sunroof Switch - Data 4 |
| 6 |
1.25 OG/BU |
3040 |
Battery Voltage Supply |
| 7-8 |
- |
- |
Not Used |
| 9 |
0.5 YE |
443 |
Ignition Voltage 1 |
| 10 |
- |
- |
Not Used |
- OEM: 18101EV
- Service: See Catalog
- Description: 10-Way F
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
