Theft Deterrent Module (TDM)

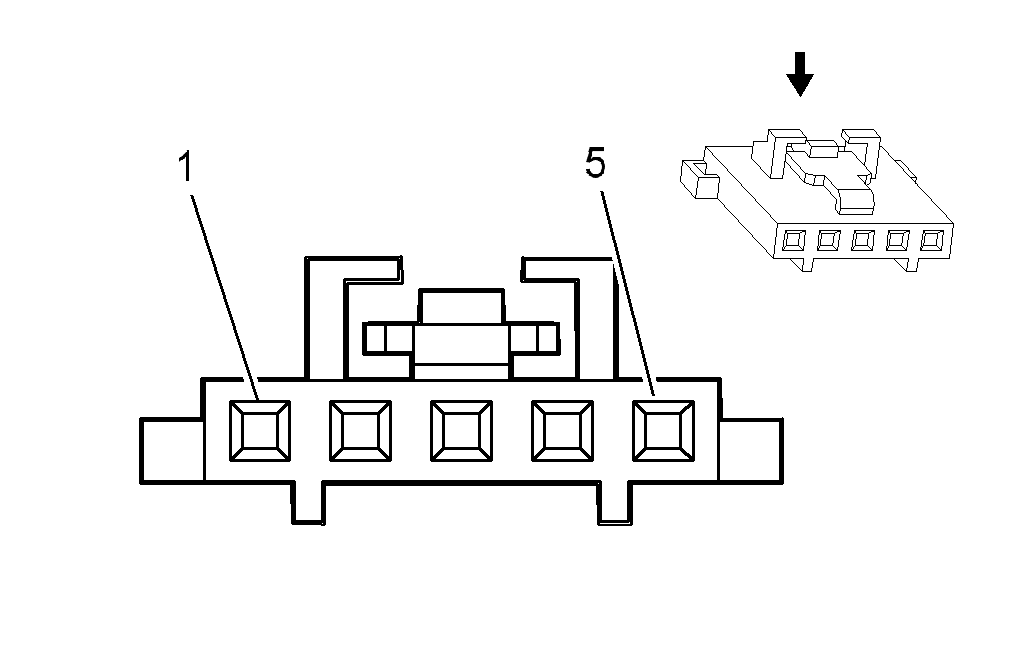

Fig 1: Theft Deterrent Module (TDM) Connector End View
GM1989590Courtesy of GENERAL MOTORS CORP.
Theft Deterrent Module (TDM)

Pin Wire Color Circuit No. Function
1 0.3 OG/BK 1040 Battery Positive Voltage
2 0.3 BN 4 Ignition 1 Voltage
3 0.3 BK 850 Ground
4 - - Not Used
5 0.35 D-GN 9206 Low Speed GMLAN Serial Data
  • OEM: 7183-2179-30
  • Service: See Catalog
  • Description: 5-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 16-02-1110/20
  • Core/Insulation Crimp: H/H
  • Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)
