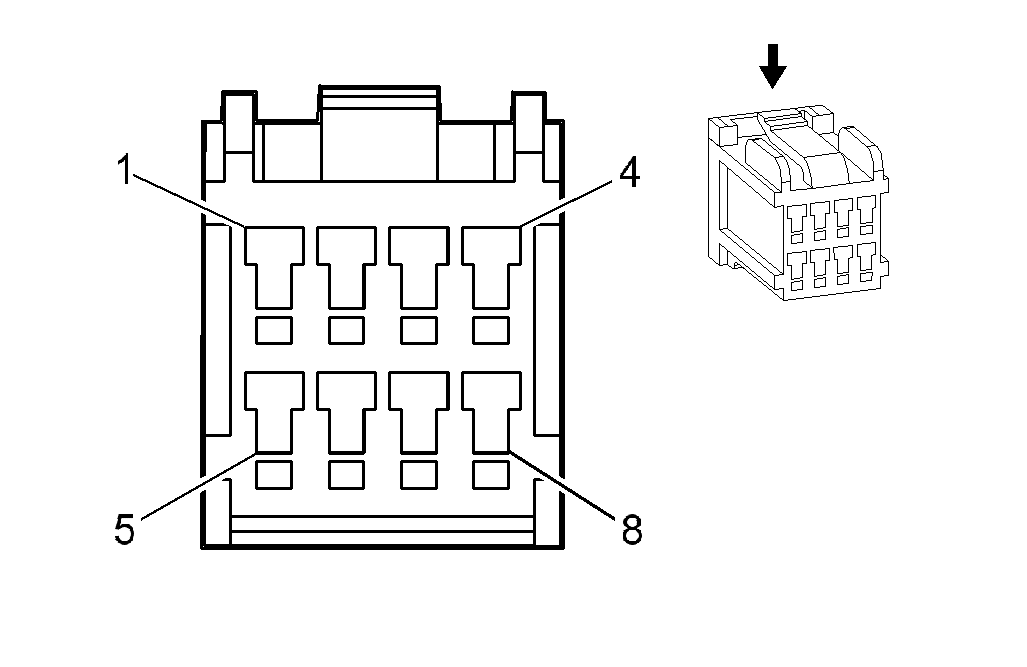

Turn Signal/Multifunction Switch
Courtesy of GENERAL MOTORS CORP. Turn Signal/Multifunction Switch
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.3 BK |
850 |
Ground |
| 2 |
0.3 BN/RD |
1356 |
Flash To Pass Switch Signal |
| 3 |
0.3 PU/YE |
524 |
Headlamp Dimmer Switch High Beam Signal |
| 4 |
0.3 BK |
850 |
Ground |
| 5 |
0.5 GY |
1884 |
Cruise Control Switch Signal |
| 6 |
0.3 PU |
1375 |
Steering Wheel Control Supply Voltage |
| 7 |
0.3 D-BU/WH |
1415 |
Right Front Turn Signal Switch Signal |
| 8 |
0.3 L-BU/WH |
1414 |
Left Front Turn Signal Switch Signal |
Connector Part Information
- OEM: 7123-1685
- Service: See Catalog
- Description: 8-Way F 040 Multilock Series (WH)
|
Terminal Part Information
- Terminal/Tray: 173681-2/17
- Core/Insulation Crimp: E/4
- Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)
|
