Instrument Panel/Center Console Component Views

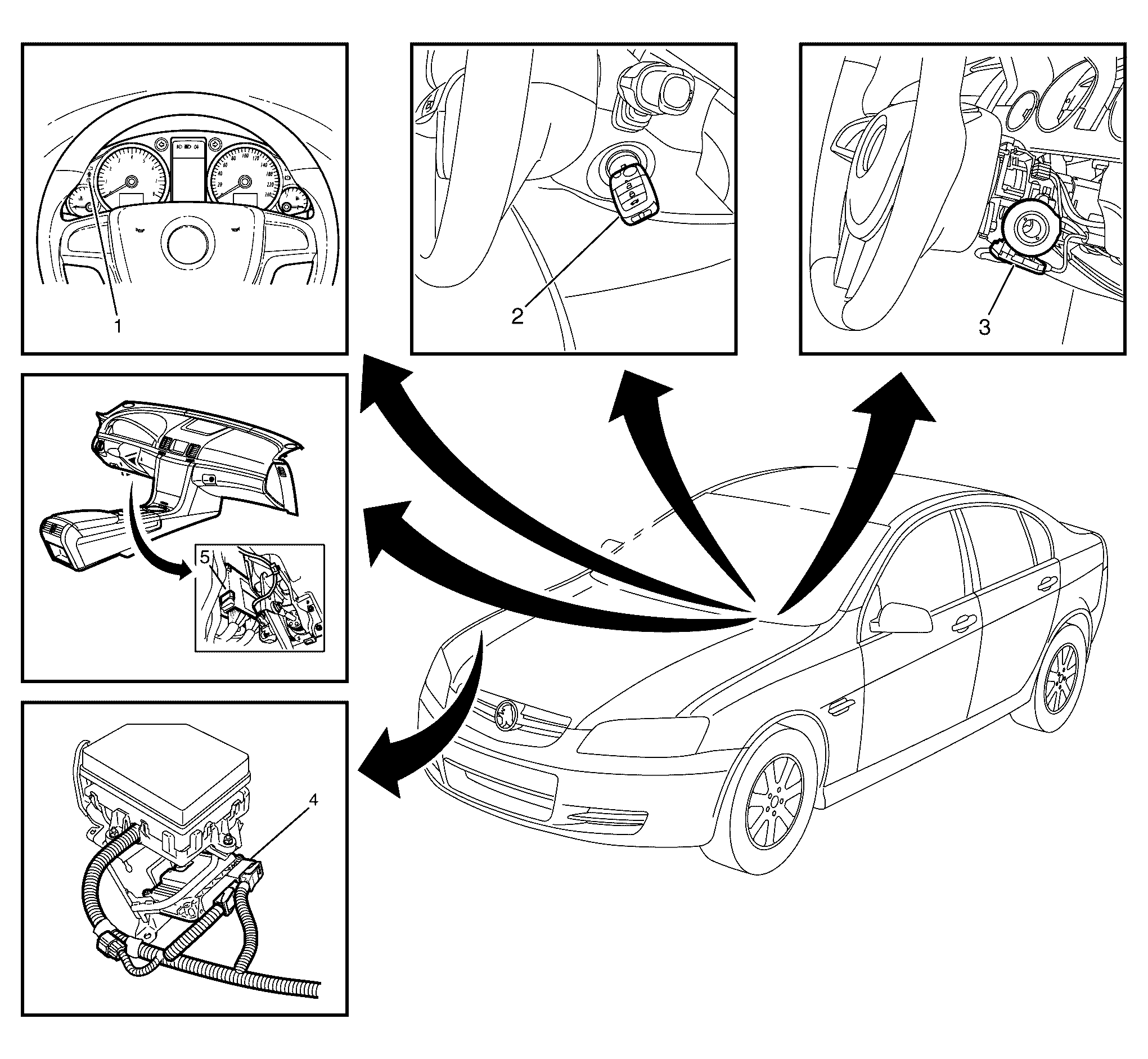

Fig 1: Security Warning Lamp, Ignition key (Transponder), Theft Deterrent Module (TDM), Engine Control Module (ECM) and Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Security Warning Lamp
2	Ignition Key (Transponder)
3	Theft Deterrent Module (TDM)
4	Engine Control Module (ECM)
5	Body Control Module (BCM)

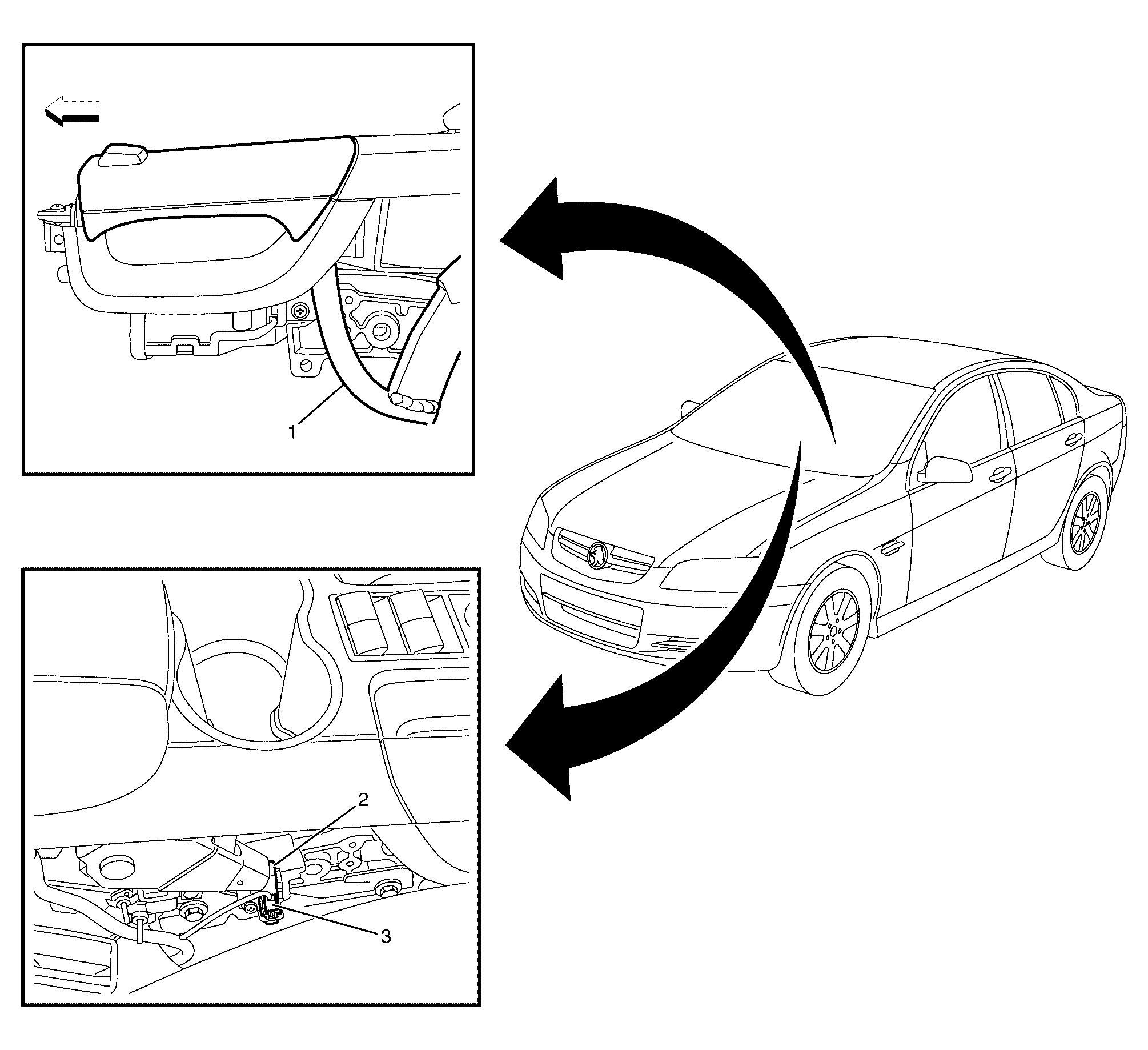

Fig 2: Park Brake Subsystem Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Assembly
2	Park Brake Switch
3	Park Brake Switch Electrical Connector

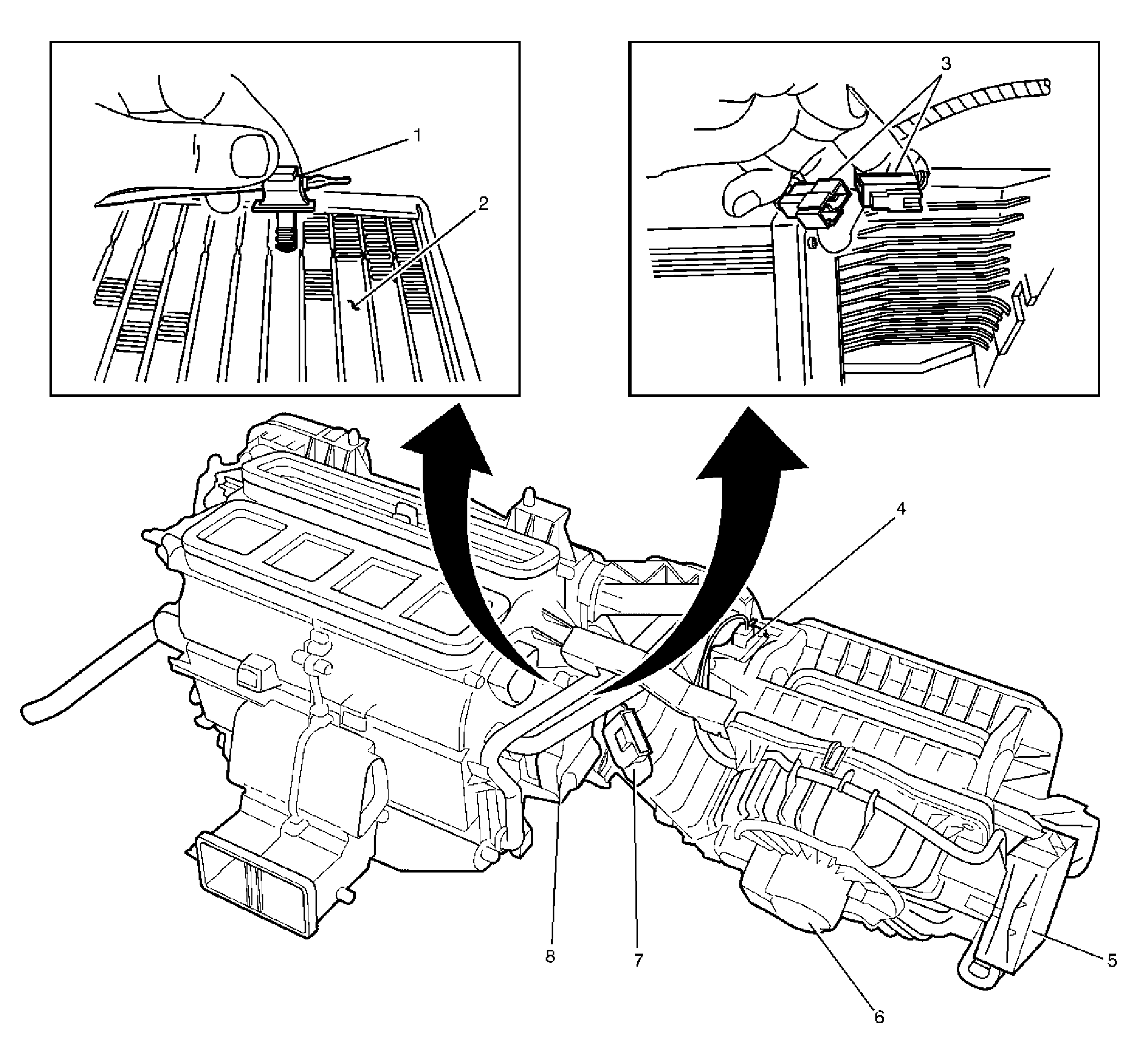

Fig 3: Dual Zone - View Of Passenger Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporator Temperature Sensor
2	Evaporator Core
3	Evaporator Temperature Sensor Connector
4	Recirculation Actuator
5	HVAC Control Module
6	Blower Motor
7	Blower Motor Control Module
8	Air Temperature Actuator - Right

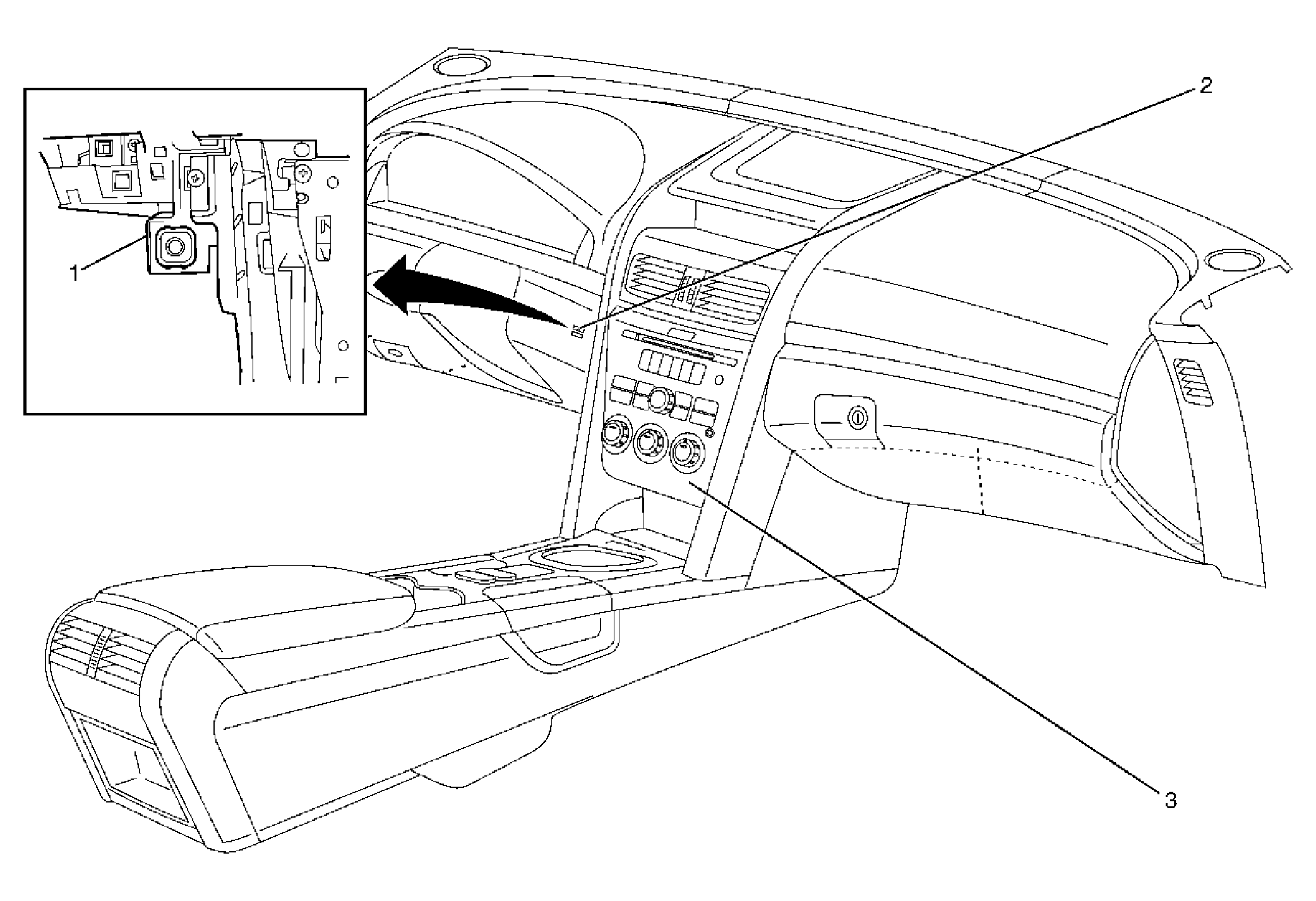

Fig 4: Dual Zone - I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Air Temperature Sensor
2	Inside Air Temperature Sensor Vent
3	Infotainment Unit (Incorporates HVAC Controls)

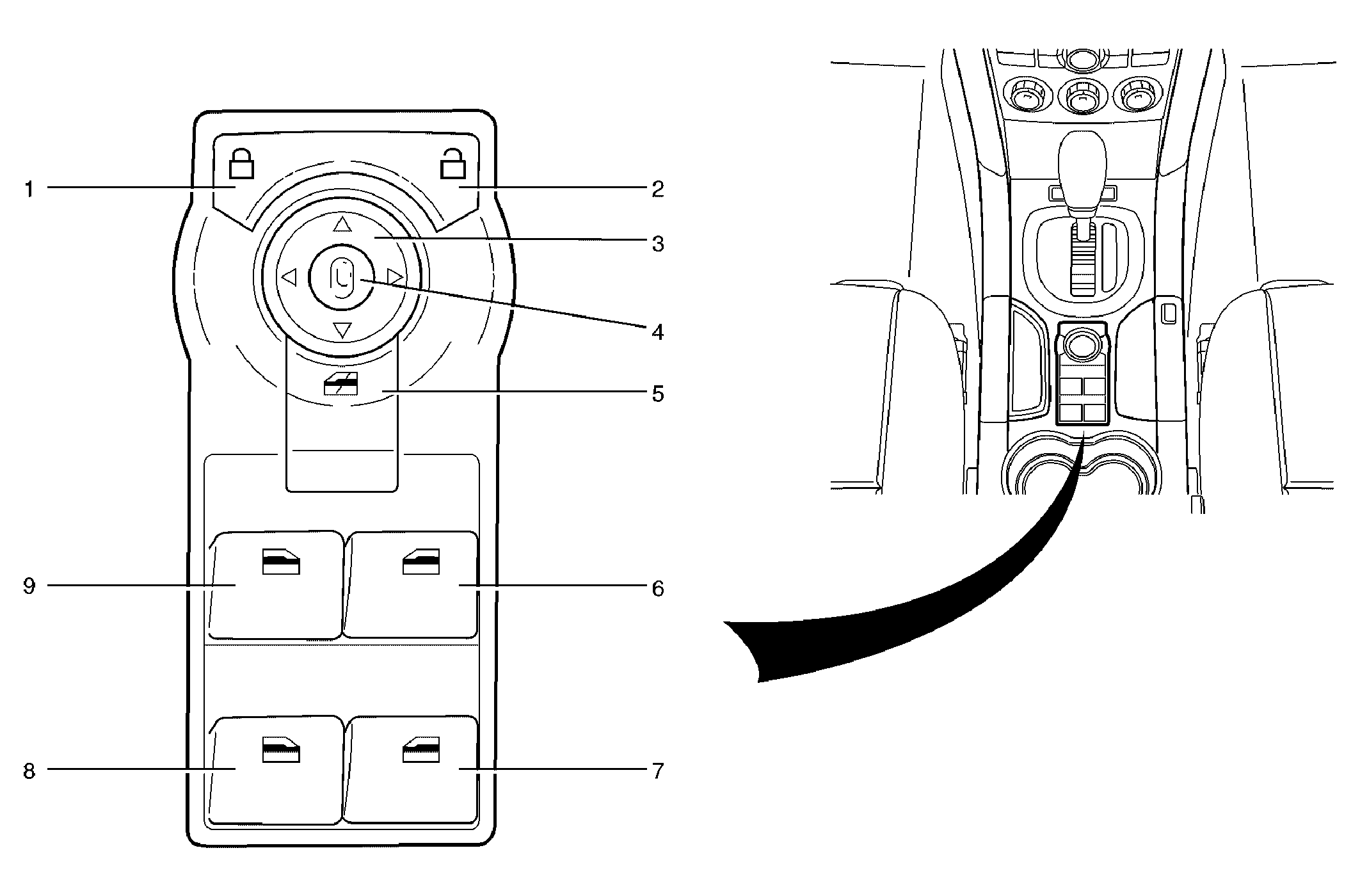

Fig 5: Door Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch
2	Door Unlock Switch
3	Mirror Direction Switch
4	Mirror Selection Switch
5	Window Lock Switch
6	R/H Front Window Switch
7	R/H Rear Window Switch
8	L/H Rear Window Switch
9	L/H Front Window Switch

Fig 6: Dual Zone - View Of Passenger Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporator Temperature Sensor
2	Evaporator Core
3	Evaporator Temperature Sensor Connector
4	Recirculation Actuator
5	HVAC Control Module
6	Blower Motor
7	Blower Motor Control Processor
8	Air Temperature Actuator - Right

Fig 7: Dual Zone - View Of Drivers Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Inside Air Temperature Sensor Venturi
3	Air Temperature Lever- Rear
4	Mode Door Actuator - Auxiliary
5	Air Temperature Actuator - Left

Fig 8: Dual Zone - I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Air Temperature Sensor
2	Inside Air Temperature Sensor Vent
3	Infotainment Unit (Incorporates HVAC Controls)

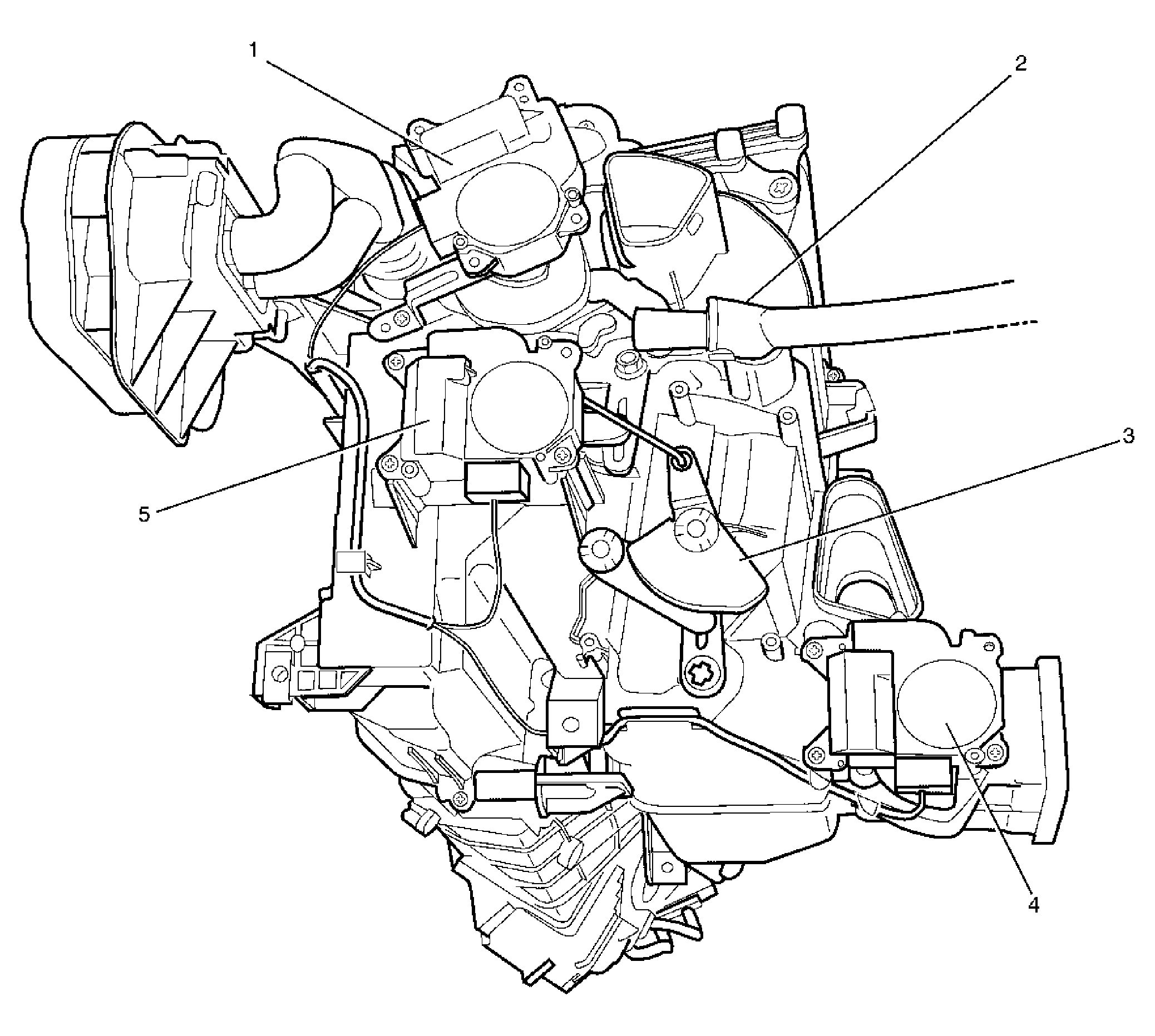

Fig 9: Dual Zone - View Of Drivers Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Air Temperature Lever - Rear
3	Mode Door Actuator - Auxiliary
4	Air Temperature Actuator - Left

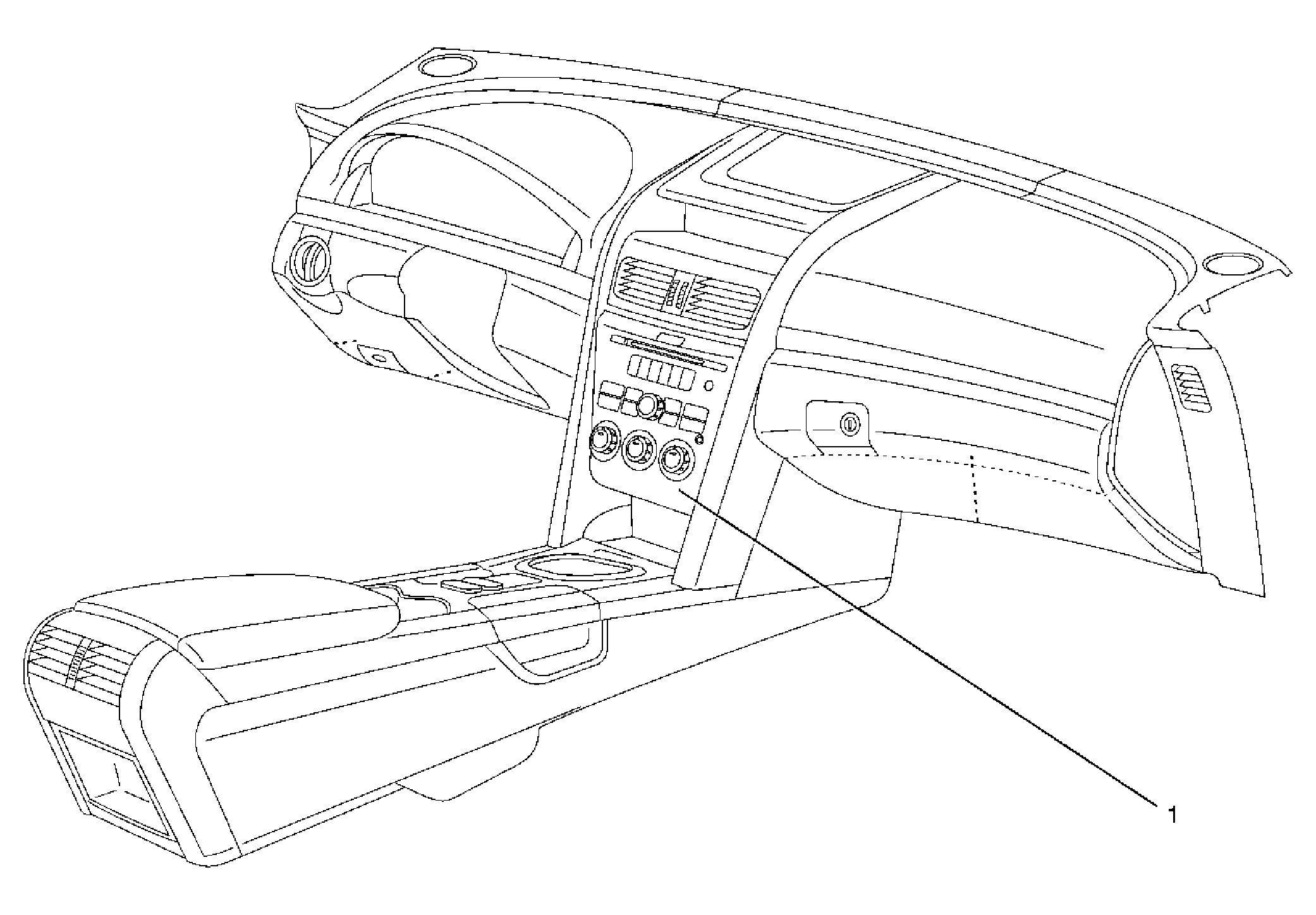

Fig 10: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Infotainment Unit (Incorporates HVAC Controls)

Fig 11: View From Passenger Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporator Temperature Sensor
2	Evaporator Core
3	Evaporator Temperature Sensor Connector
4	Recirculation Actuator
5	HVAC Control Module
6	Blower Motor
7	Blower Motor Control Processor
8	Air Temperature Actuator - Right (CJ2)
