Installation Procedure

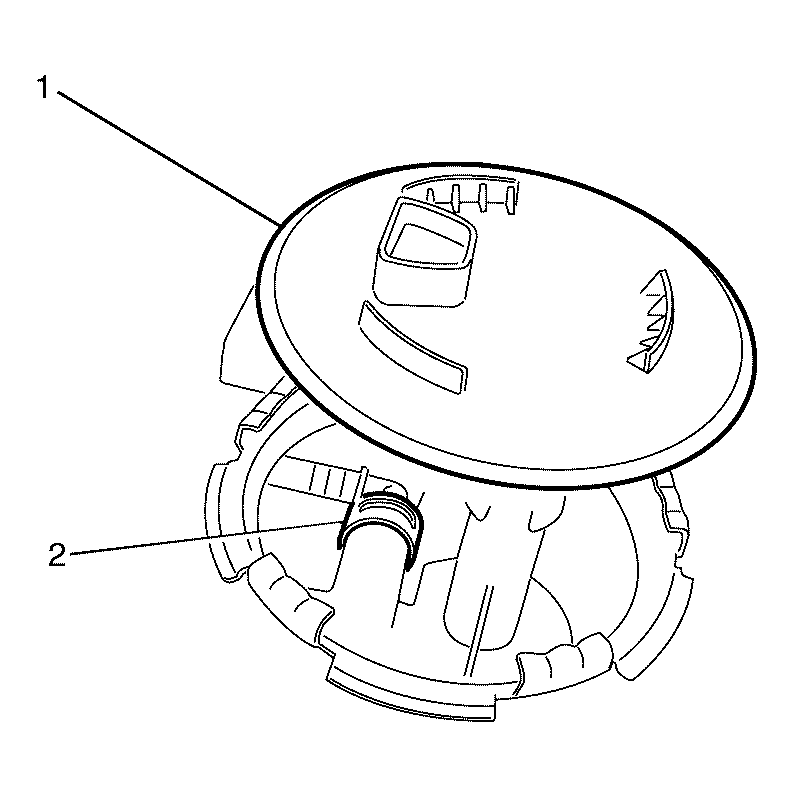

Fig 1: Identifying Primary/Secondary Fuel Tank Module Seal

Courtesy of GENERAL MOTORS CORP.

Install a NEW secondary fuel tank module seal (1) to the fuel tank assembly.

Fig 2: Secondary Fuel Tank Module & Transfer Tube

Courtesy of GENERAL MOTORS CORP.

NOTE: Do not to damage the fuel level sensor float rod when installing the secondary fuel tank module (1) to the fuel tank assembly.

NOTE: Make sure the fuel level float is free from binding while inserting the secondary fuel tank module (1).

Carefully install the secondary fuel tank module (1) to the fuel tank assembly just enough to connect the transfer tube (2) to the secondary fuel tank module (1).

NOTE: Listen for an audible click to confirm the correct installation of the transfer tube (2) to the secondary fuel tank module (1).

Connect the transfer tube (2) to the secondary fuel tank module (1).
Carefully install the secondary fuel tank module (1) to the fuel tank assembly.

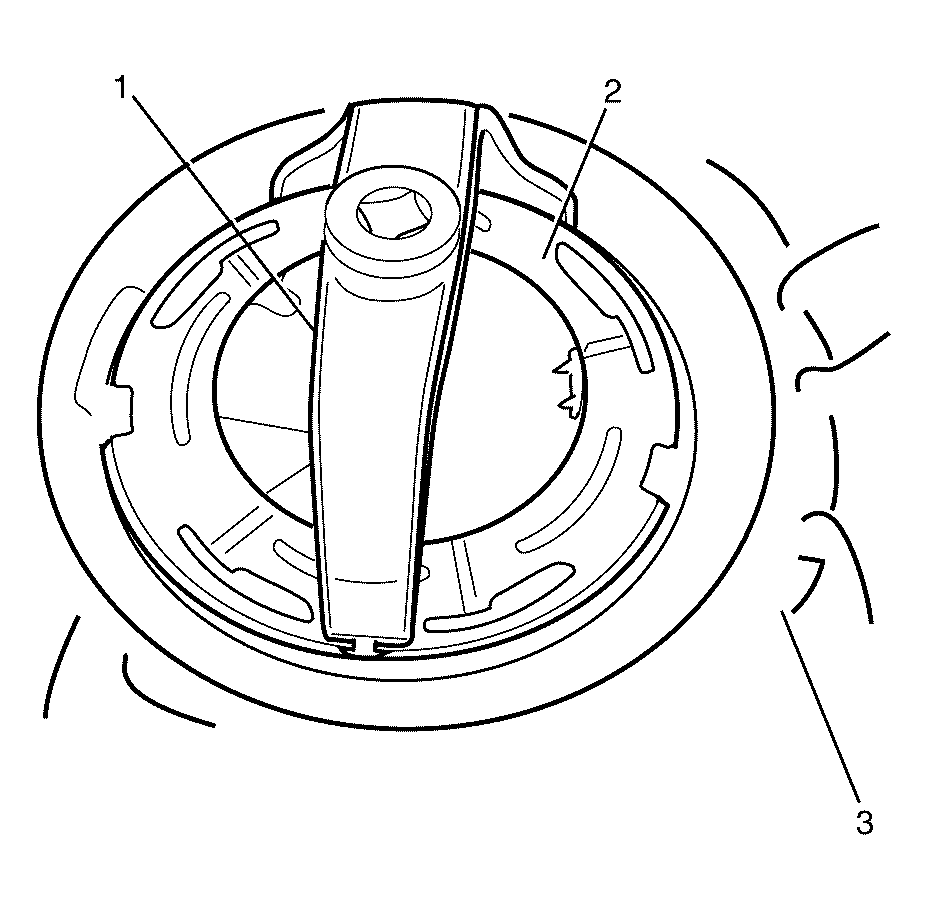

Fig 3: Primary Fuel Tank Module, Cam Lock Ring & Special Tool

Courtesy of GENERAL MOTORS CORP.

NOTE: The secondary fuel tank module is spring loaded when installed in the fuel tank assembly. Apply suitable pressure to the secondary fuel tank module while installing the NEW cam lock ring (2)

Install a NEW cam lock ring (2) to the fuel tank (3).
Rotate the NEW cam lock ring (2) clockwise using CH-48482 (1) until the NEW cam lock ring (2) is fully seated. See Special Tools .

Fig 4: Identifying Secondary Fuel Tank Module Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Listen for an audible click to confirm the correct installation of the secondary fuel tank module electrical connector (1).

Connect the secondary fuel tank module electrical connector (1) to the secondary fuel tank module assembly.
Install the fuel tank assembly. Refer to Fuel Tank Replacement .
Lower the vehicle to the ground.
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
