Installation Procedure

CAUTION: Do not touch the connector pins or soldered components on the circuit board in order to prevent possible electrostatic discharge (ESD) damage to the PCM.

CAUTION: In order to prevent internal damage to the PCM, the ignition must be OFF when disconnecting or reconnecting the PCM connector.

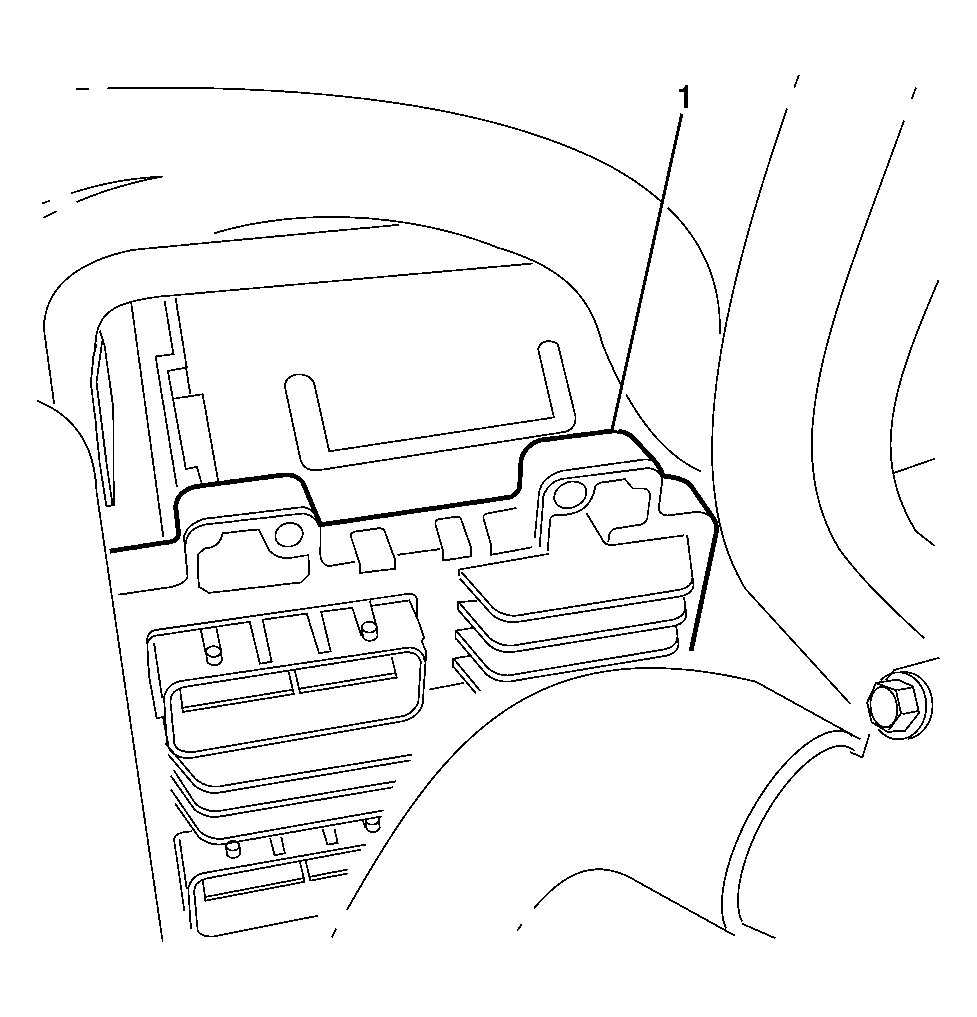

Fig 1: Identifying ECM

Courtesy of GENERAL MOTORS CORP.

Install the ECM to the vehicle.

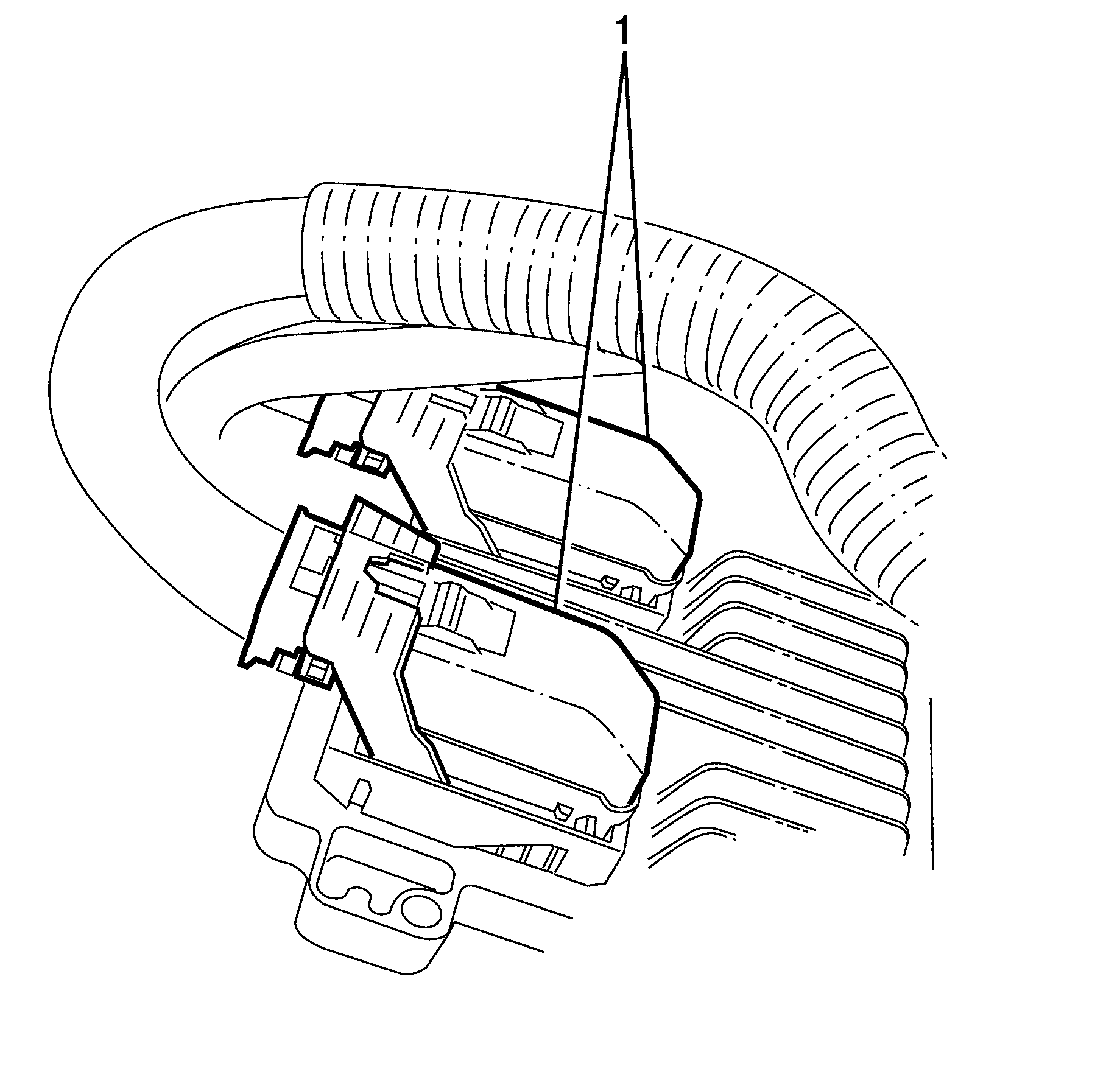

Fig 2: Identifying ECM Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the ECM electrical connectors (1).

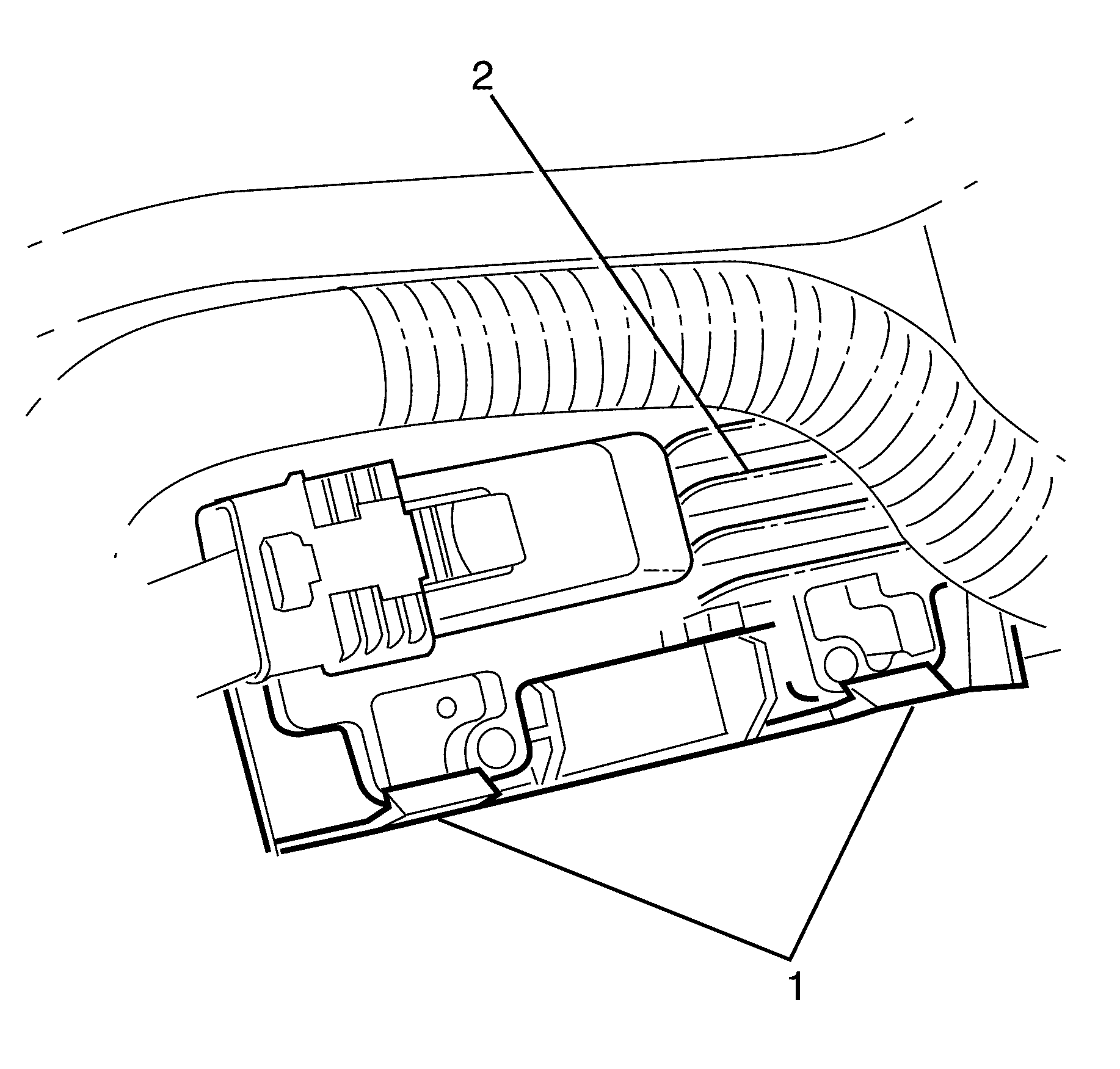

Fig 3: Identifying ECM & Retaining Clips

Courtesy of GENERAL MOTORS CORP.

Engage the ECM retaining clips (1) to secure the ECM (2).
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
If a new ECM is being installed, program the ECM. Refer to Service Programming System (SPS) .
