Starting and Charging Schematics

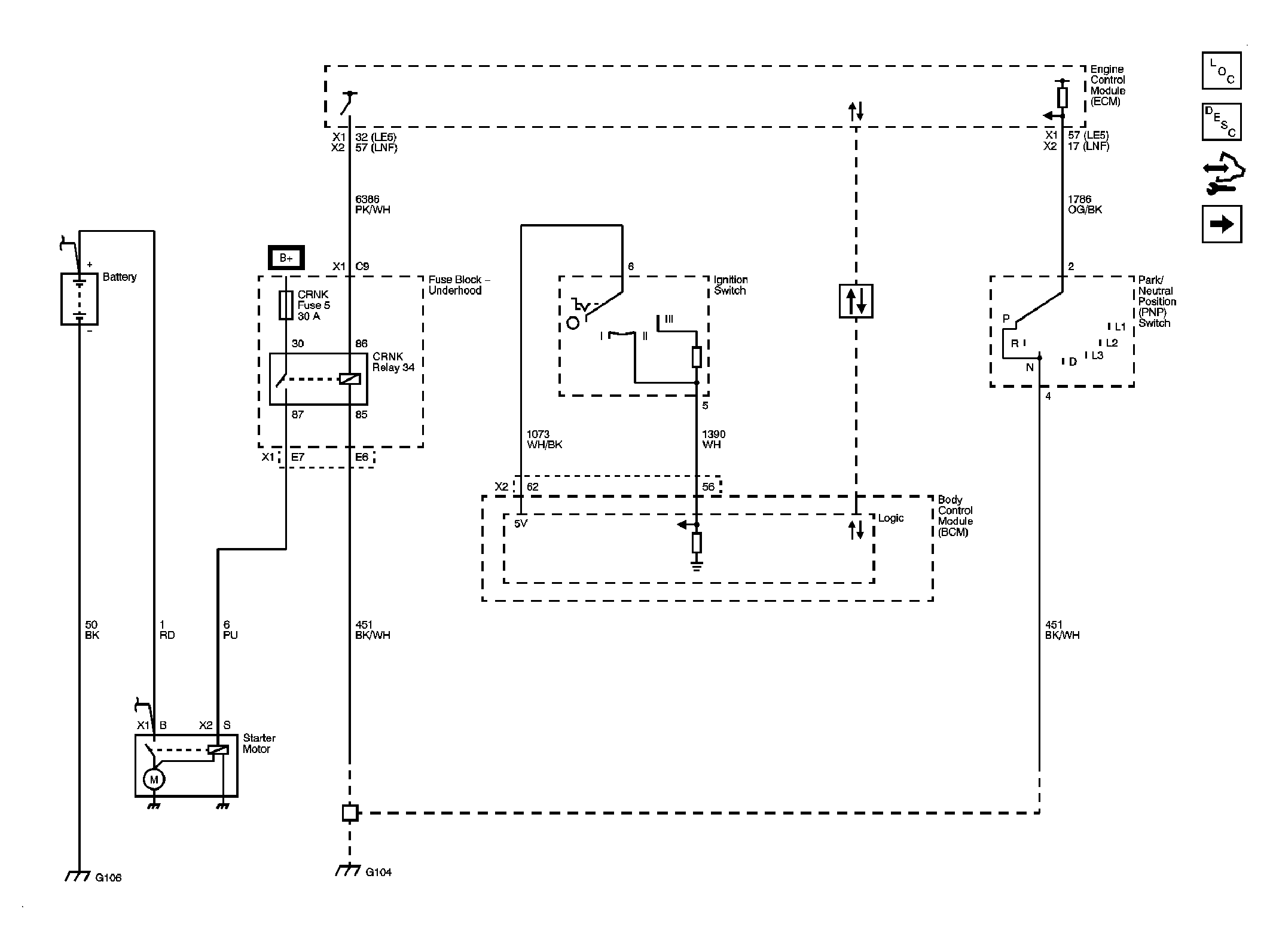

Fig 1: Starting
Courtesy of GENERAL MOTORS CORP.
Fig 2: Charging
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
