DTC B1000: Communication Circuit Error (BUS-OFF)

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A  ).
  1. Clear the DTCs with the HDS.
  2. Turn the ignition switch to LOCK (0) and then back to ON (II).
  3. Wait for at least 6 seconds.
  4. Check for DTCs with the HDS.

    Is DTC B1000 indicated?

    YES  -Go to step 5.

    NO  -Intermittent failure. The communication bus line is OK at this time.

  5. Turn the ignition switch to LOCK (0).
  6. Disconnect the appropriate connector at each control unit in the table.
    GAUGE CONTROL MODULE CHART

    Unit Connector
    Gauge control module 32P connector
    Climate control unit 36P connector
    HandsFreeLink control unit 28P connector
    Immobilizer-keyless control unit 7P connector
  7. Turn the ignition switch to ON (II).
  8. Clear the DTCs with the HDS.
  9. Turn the ignition switch to LOCK (0) and then back to ON (II).
  10. Wait for at least 6 seconds.
  11. Check for DTCs with the HDS.

    Is DTC B1000 indicated?

    YES  -Go to step 12.

    NO  -Turn the ignition switch to LOCK (0), then go to step  15.

  12. Turn the ignition switch to LOCK (0).
  13. Disconnect the under-dash fuse/relay box connector Q(16P).
  14. Check for continuity between under-dash fuse/relay box connector Q (16P) terminal No. 3 and body ground.

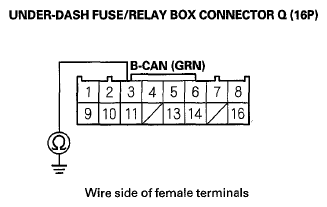

    Fig 1: Checking Continuity Between Under-Dash Fuse/Relay Box Connector Q (16P) Terminal No. 3 And Body Ground
    G06431505Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to ground in the wire between the under-dash fuse/relay box connector and the affected control unit.

    NO  -Faulty MICU, replace the under-dash fuse/relay box.

  15. Reconnect the gauge control module 32P connector.
  16. Turn the ignition switch to ON (II).
  17. Clear the DTCs with the HDS.
  18. Turn the ignition switch to LOCK (0) and then back to ON (II).
  19. Wait for at least 6 seconds.
  20. Check for DTCs with the HDS.

    Is DTC B1000 indicated?

    YES  -Replace the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).

    NO  -Go to step 21.

  21. Reconnect the climate control unit 36P connector.
  22. Turn the ignition switch to ON (II).
  23. Clear the DTCs with the HDS.
  24. Turn the ignition switch to LOCK (0) and then back to ON (II).
  25. Wait for at least 6 seconds.
  26. Check for DTCs with the HDS.

    Is DTC B1000 indicated?

    YES  -Replace the climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION ).

    NO  -Go to step 27.

  27. Reconnect the HandsFreeLink control unit 28P connector.
  28. Turn the ignition switch to ON (II).
  29. Clear the DTCs with the HDS.
  30. Turn the ignition switch to LOCK (0) and then back to ON (II).
  31. Wait for at least 6 seconds.
  32. Check for DTCs with the HDS.

    Is DTC B1000 Indicated?

    YES  -Replace the HandsFreeLink control unit (see CONTROL UNIT INPUT TEST/REPLACEMENT ).

    NO  -Replace the immobilizer-keyless control unit (see IMMOBILIZER-KEYLESS CONTROL UNIT REPLACEMENT ).
