Digital Radio Receiver Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

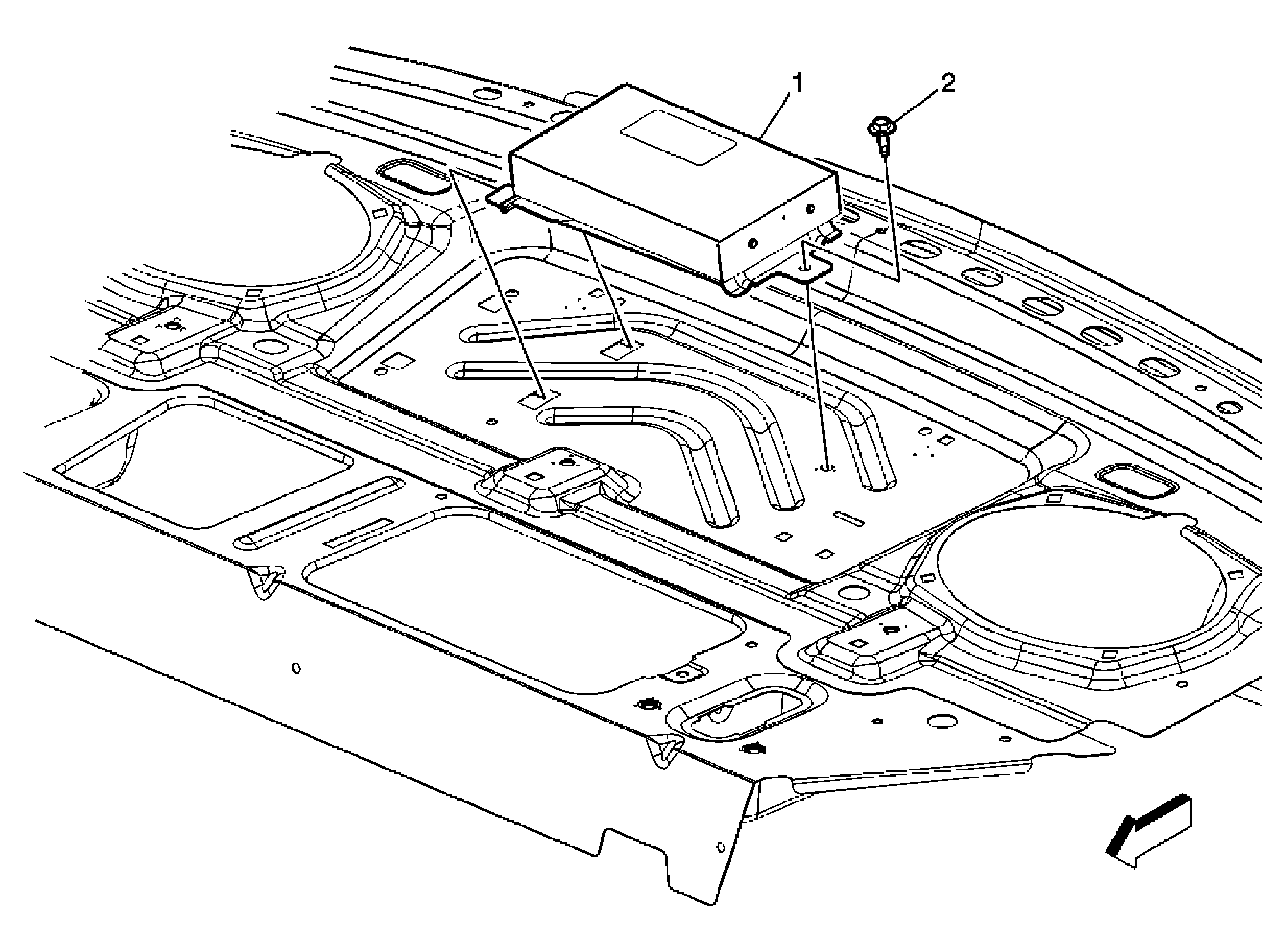

Fig 1: View Of Receiver - Digital Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
1	Digital Radio Receiver Assembly Tip: Disconnect the electrical connectors. Perform the digital radio receiver set up procedure. Refer to Control Module References for programming and setup information.
2	Digital Radio Receiver Screw CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
