Radio Replacement

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

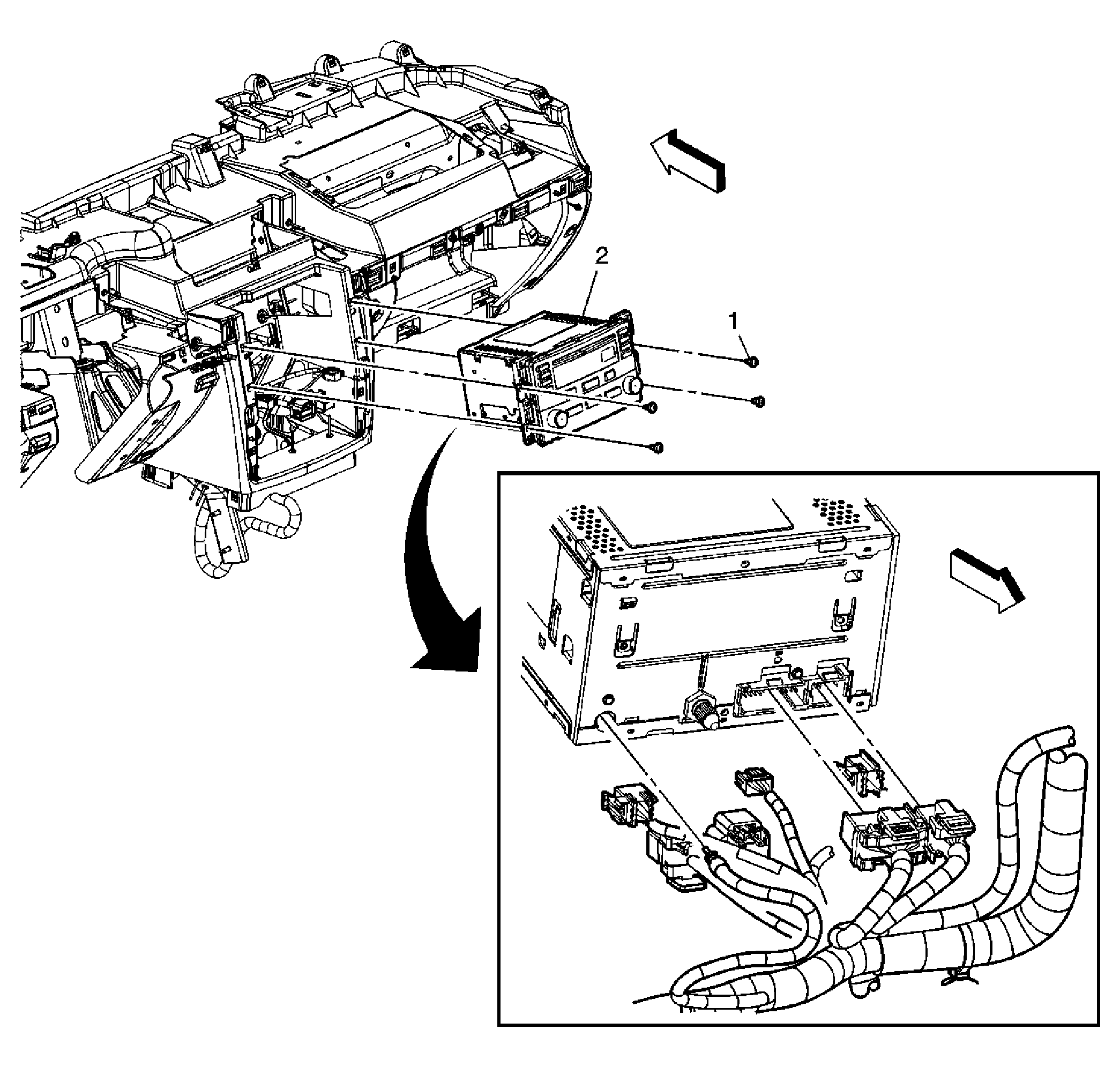

Fig 1: View Of Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the center instrument trim panel. Refer to Instrument Panel Center Trim Panel Replacement . Remove the HVAC controls.
1	Radio Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Radio Procedure Disconnect the electrical and antenna connectors. Reprogram the radio. Refer to Control Module References . Tip: The HVAC control connector-1 and the radio connector-2 can be interchanged. Mark or place tape on the connector to avoid accidental interchange.

Callout

Component Name

Preliminary Procedures

Remove the center instrument trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
Remove the HVAC controls.

Radio Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Radio

Procedure

Disconnect the electrical and antenna connectors.
Reprogram the radio. Refer to Control Module References .

Tip: The HVAC control connector-1 and the radio connector-2 can be interchanged. Mark or place tape on the connector to avoid accidental interchange.
