Park Lamp - Right Front (SKY)

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

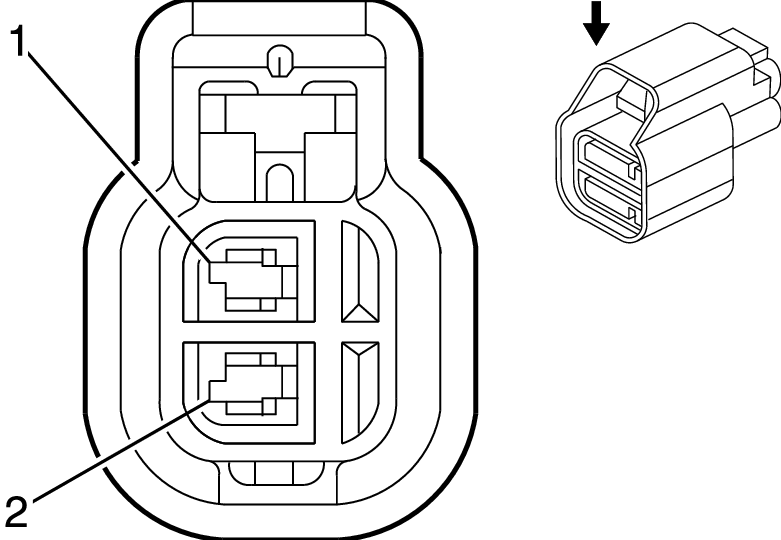

Fig 1: Park Lamp - Right Front (SKY) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 BN	9	Park Lamp Supply Voltage
2	0.8 BK	250	Ground

Connector Part Information

OEM: E-3550-000
Service: 89046838
Description: 2-Way F 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal: Pin 1: 7116-4102-08/9
Pin 2: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)
