Fuse Block - Underhood Label (LE5 w/MA5)
WARNING:
This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

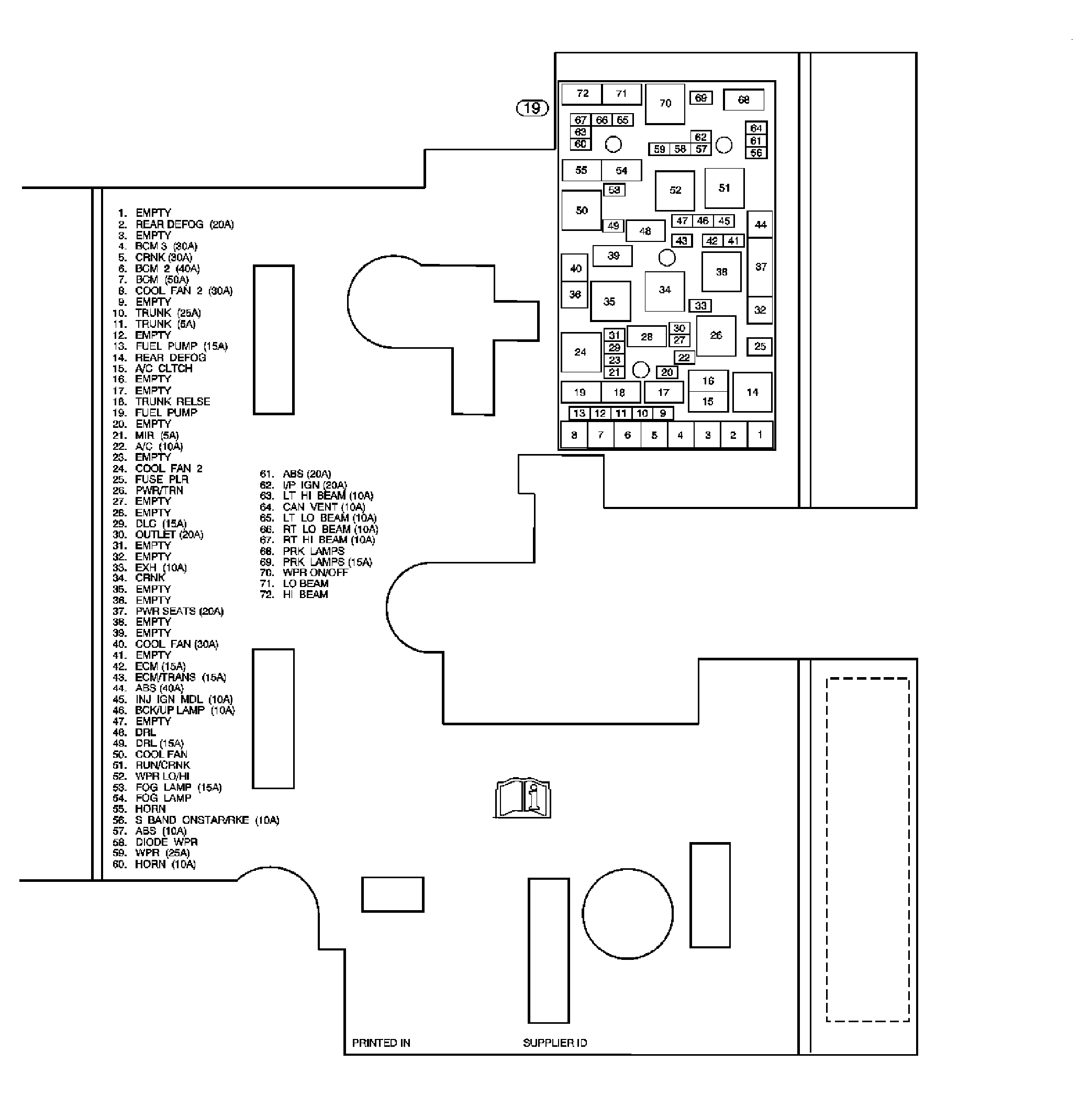

Fig 1: Fuse Block - Underhood Label (LE5 w/MA5)
Courtesy of GENERAL MOTORS CORP.
