Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Fastener Notice .

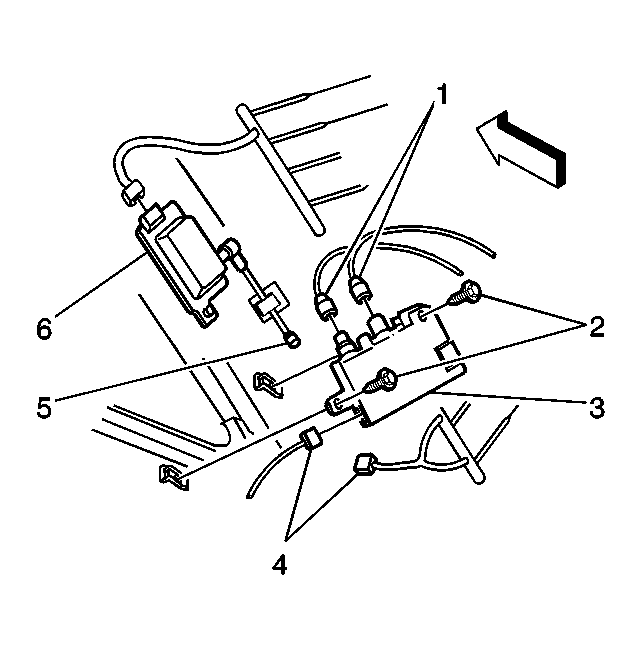

    Fig 1: View Of TV Antenna Module & Components
    GM517240Courtesy of GENERAL MOTORS CORP.
  1. Install the TV antenna module (3) and fasteners (2).

    Tighten:  Tighten the TV antenna module (3) fasteners (2) to 9 N.m (80 lb in).

  2. Connect the electrical wiring and coaxial cables (1, 4, 5) to the TV antenna module (3).
  3. Install the passenger side sail panel. Refer to Sail Panel Replacement .
