Antilock Brake System Schematics

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

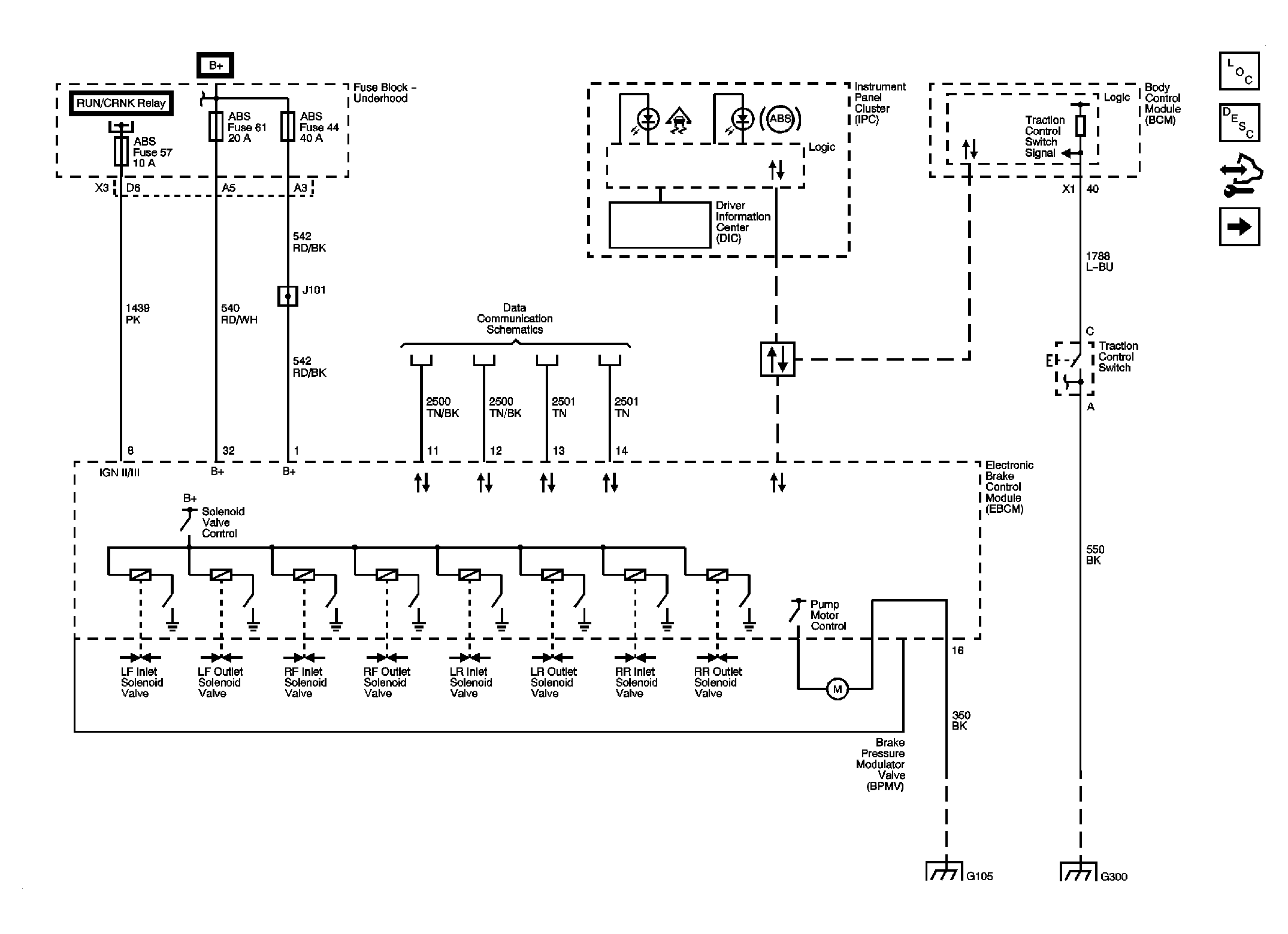

Fig 1: Power, Ground & Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

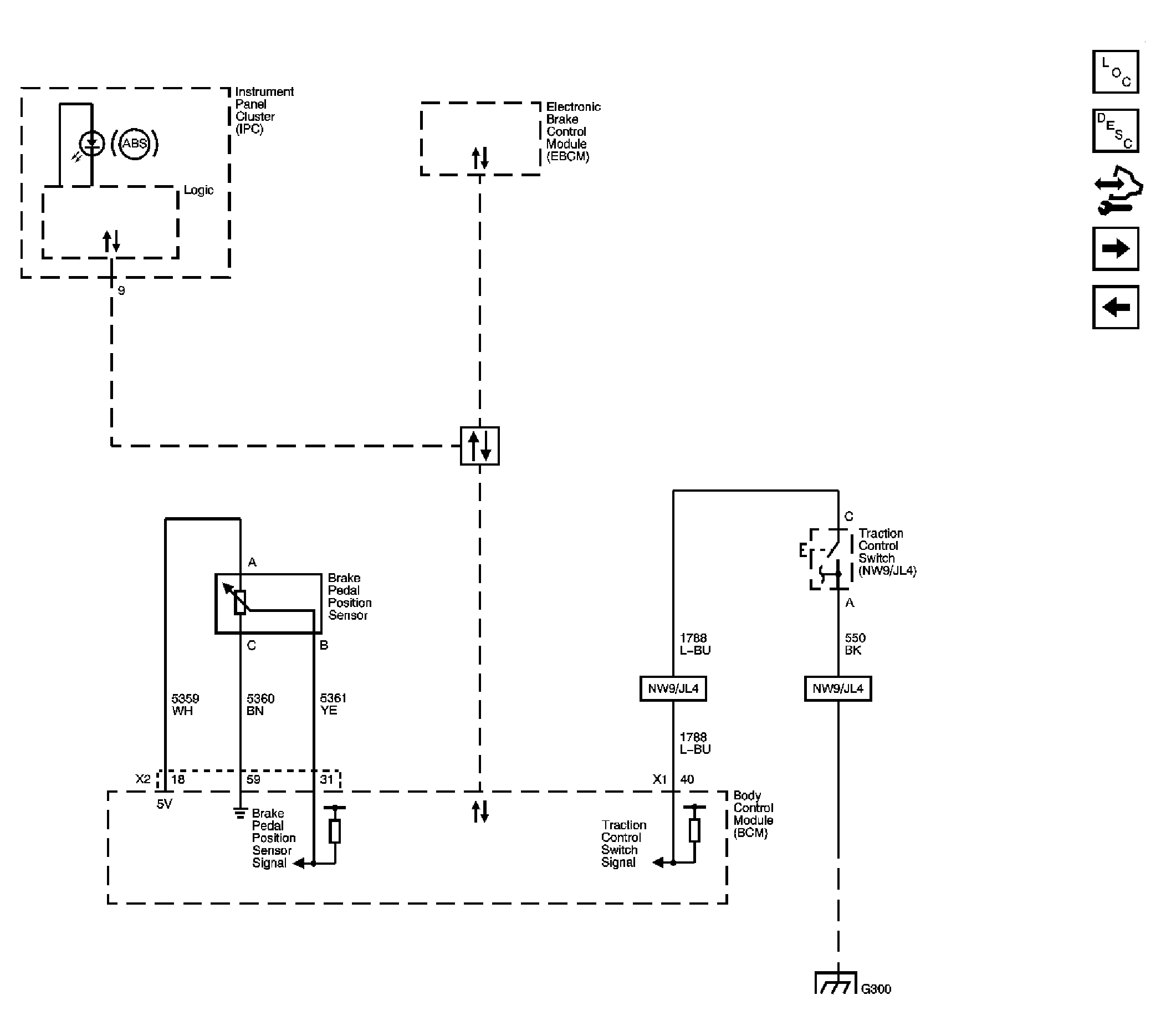

Fig 2: Brake Pedal Sensor, Indicator & Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.

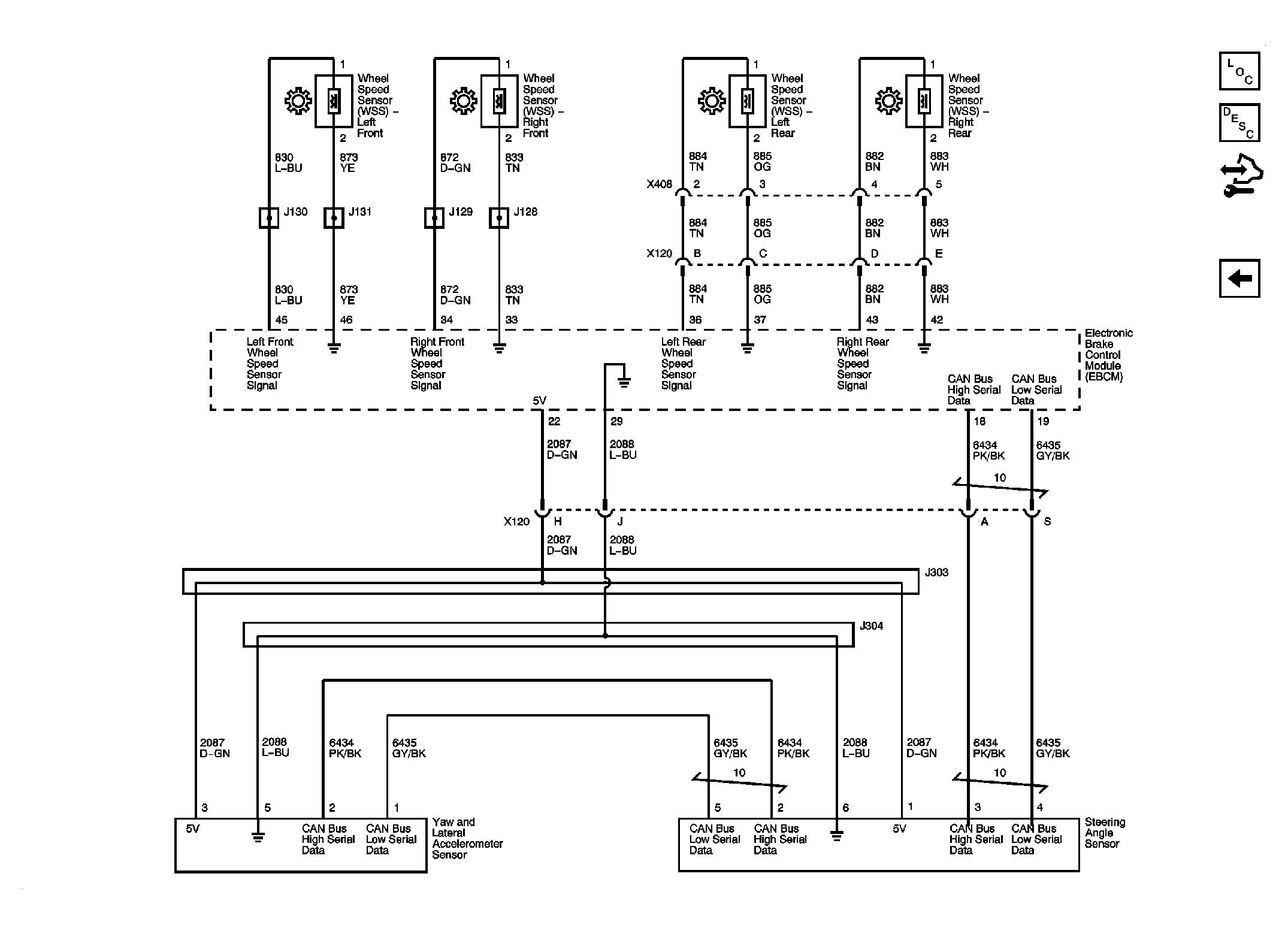

Fig 3: Stability Control Sensors Schematic (JL4)

Courtesy of GENERAL MOTORS CORP.
