Digital Radio Antenna Cable Replacement (Convertible)

WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

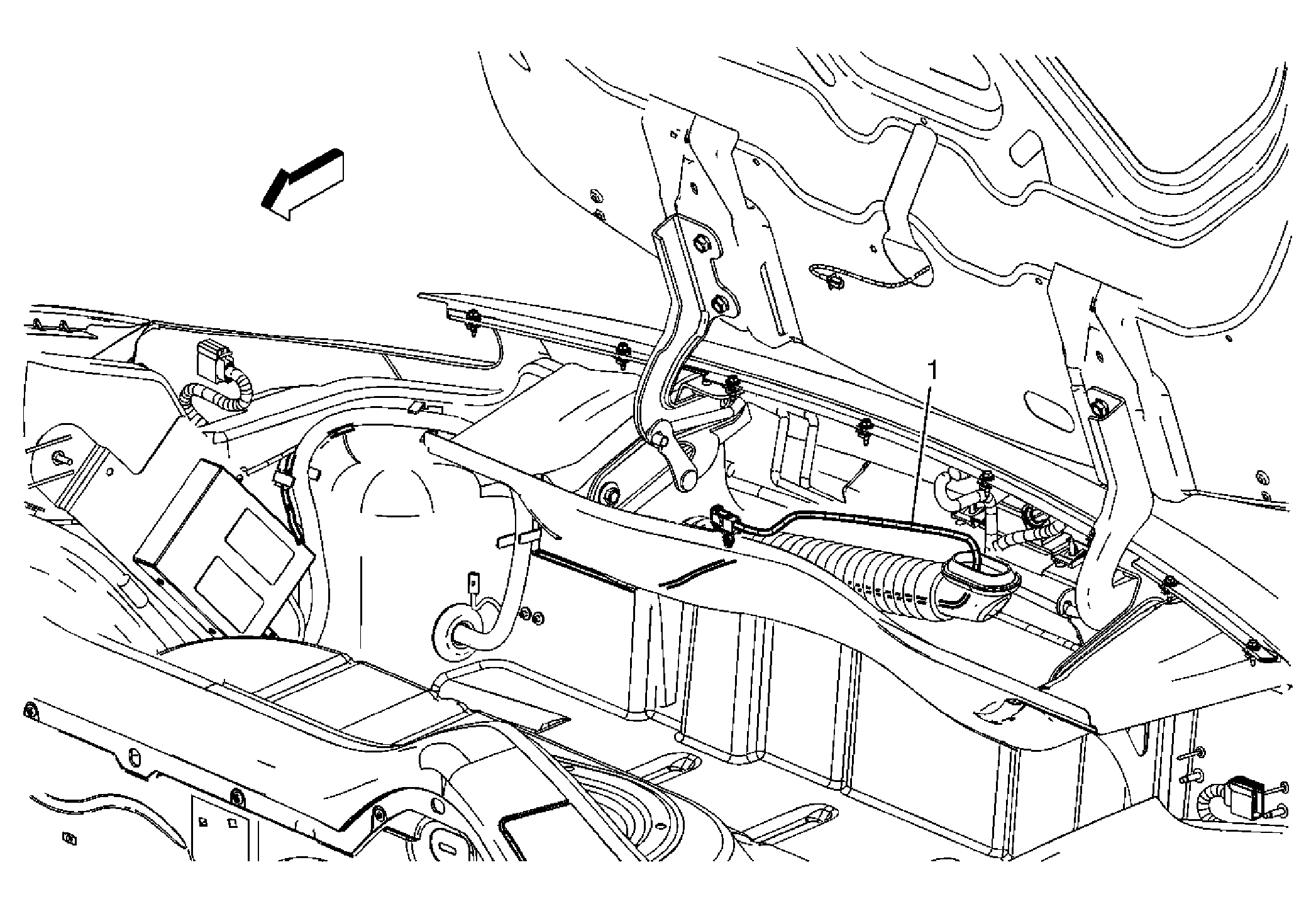

Fig 1: Identifying Digital Radio Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement (Convertible) .
1	Digital Radio Antenna Cable Assembly Tip: Disconnect the electrical connectors. Remove the cable conduit, to the rear compartment lid, in order to access the cable connection at the XM radio antenna.
