Digital Radio Antenna Replacement (Convertible)
WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

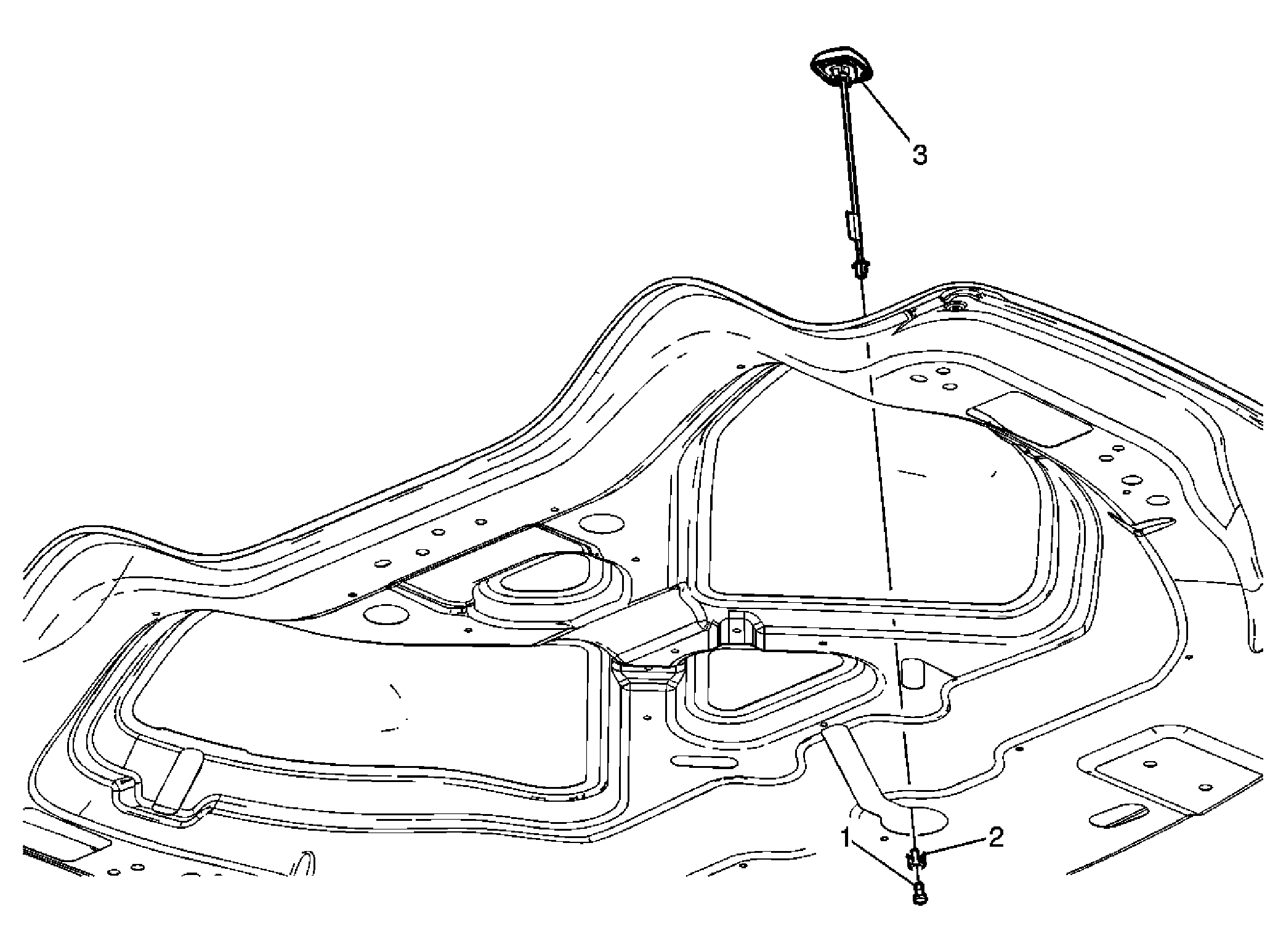

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear compartment lid trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement (Solstice) or Rear Compartment Lid Inner Panel Trim Replacement (SKY) . |
|
| 1 | Bolt, Mobile Telephone and Vehicle Location Antenna
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Expansion Sleeve, Mobile Telephone and Vehicle Location Antenna |
| 3 | Antenna and Base Assembly, Mobile Telephone and Vehicle Location |
