OnStar Schematics

WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

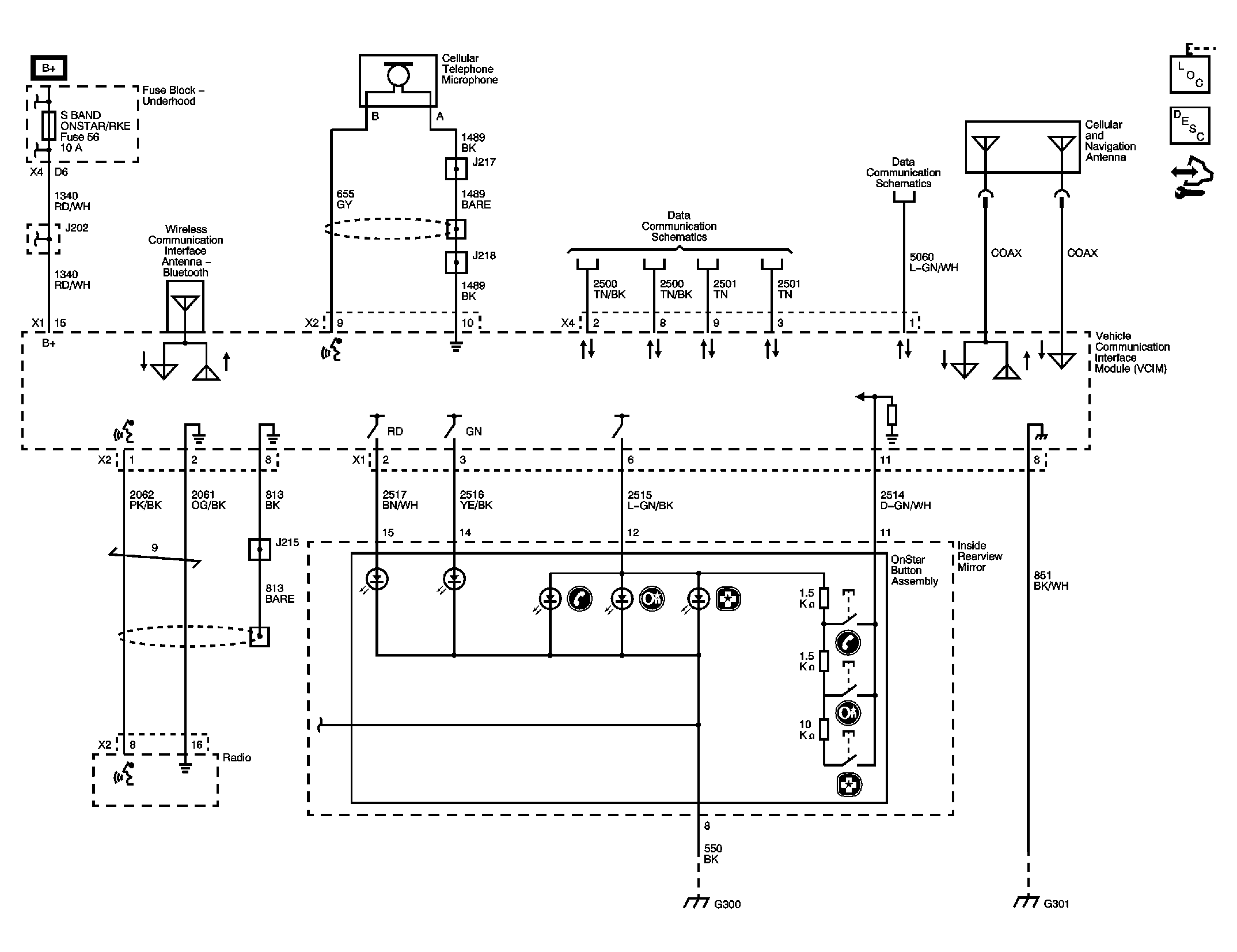

Fig 1: OnStar Circuit Schematic
GM2225161Courtesy of GENERAL MOTORS CORP.
