Radio Front Side Door Speaker Replacement
WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

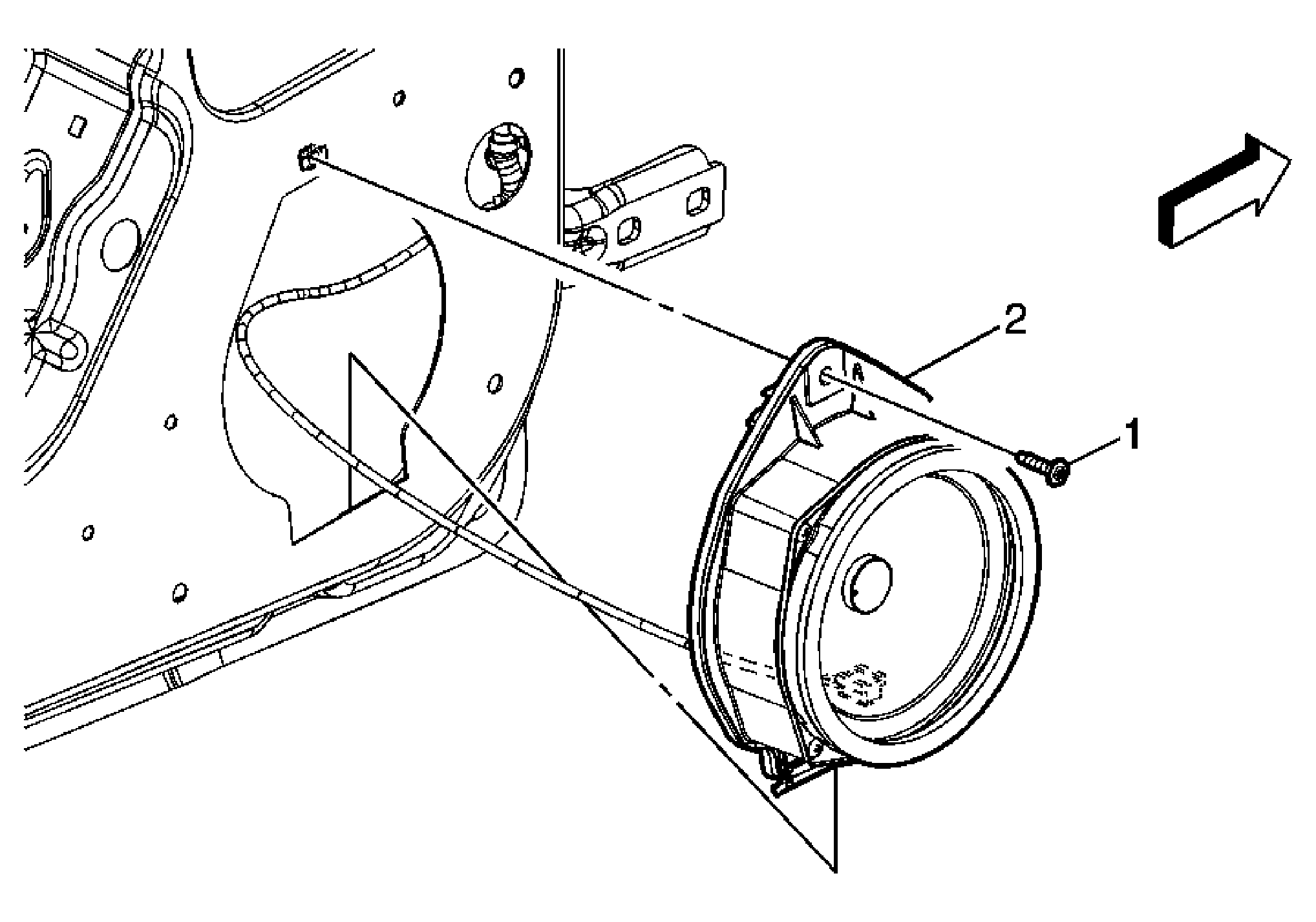

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the door trim panel. Refer to Door Trim Panel Replacement . |
|
| 1 | Bolt/Screw, Radio Side Door Speaker
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Speaker Assembly, Front Side Door |
