Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor Replacement

Removal Procedure

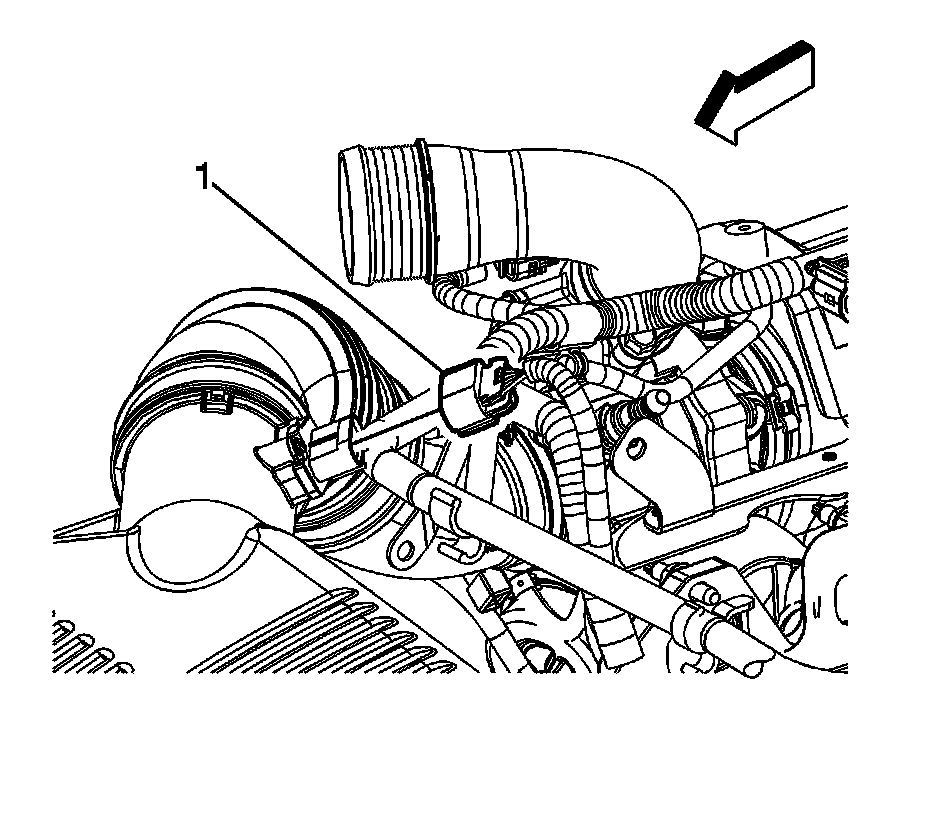

1. Disconnect the engine wiring harness electrical connector (1) from the mass air flow (MAF) sensor.

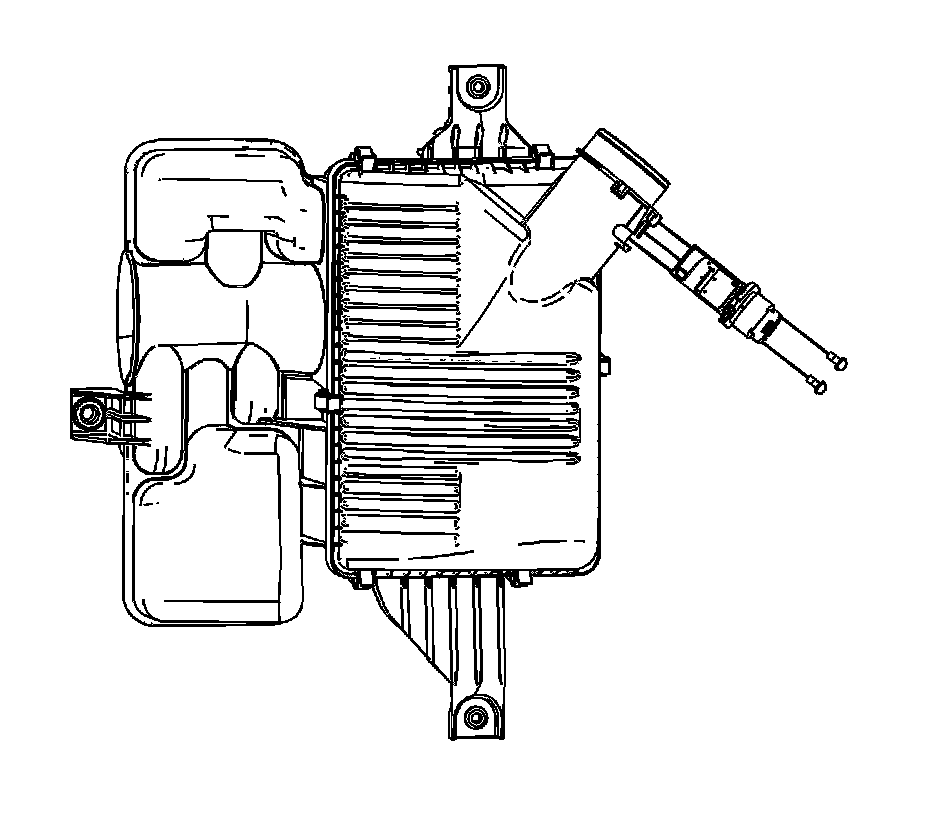

2. Remove the MAF sensor screws.
3. Remove the MAF sensor.

Installation Procedure




1. Install the MAF sensor.
Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the MAF sensor screws and tighten to 0.6 Nm (5 lb in).




3. Connect the engine wiring harness electrical connector (1) to the MAF sensor.
