Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

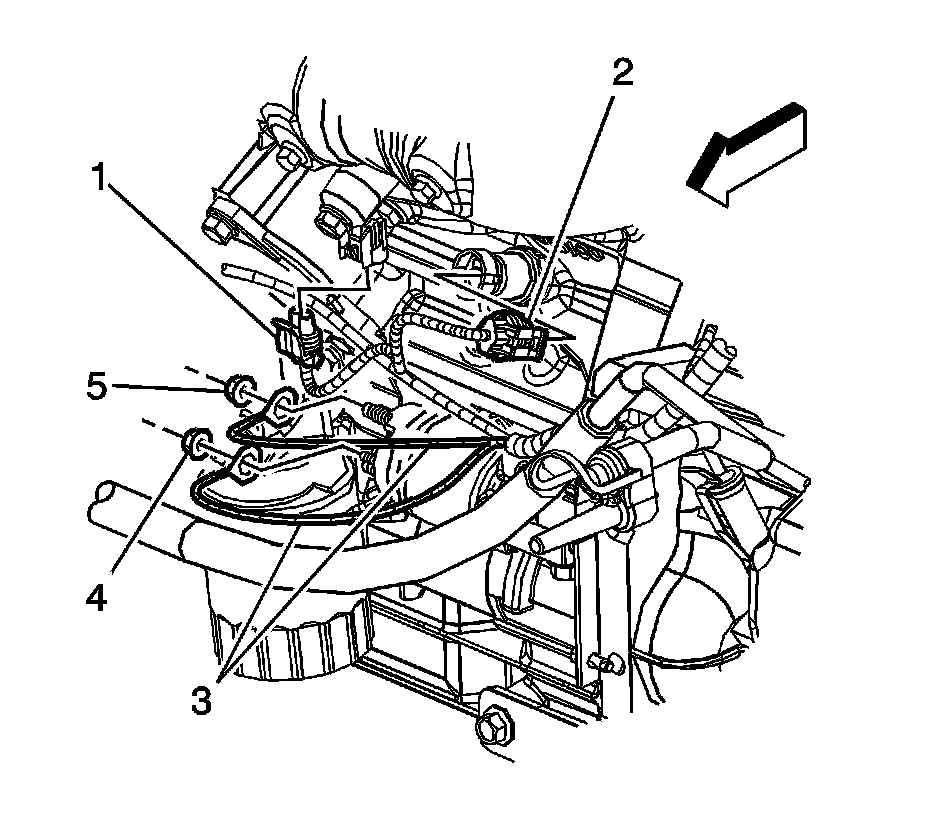

2. Disconnect the oil pressure indicator switch electrical connector (2).

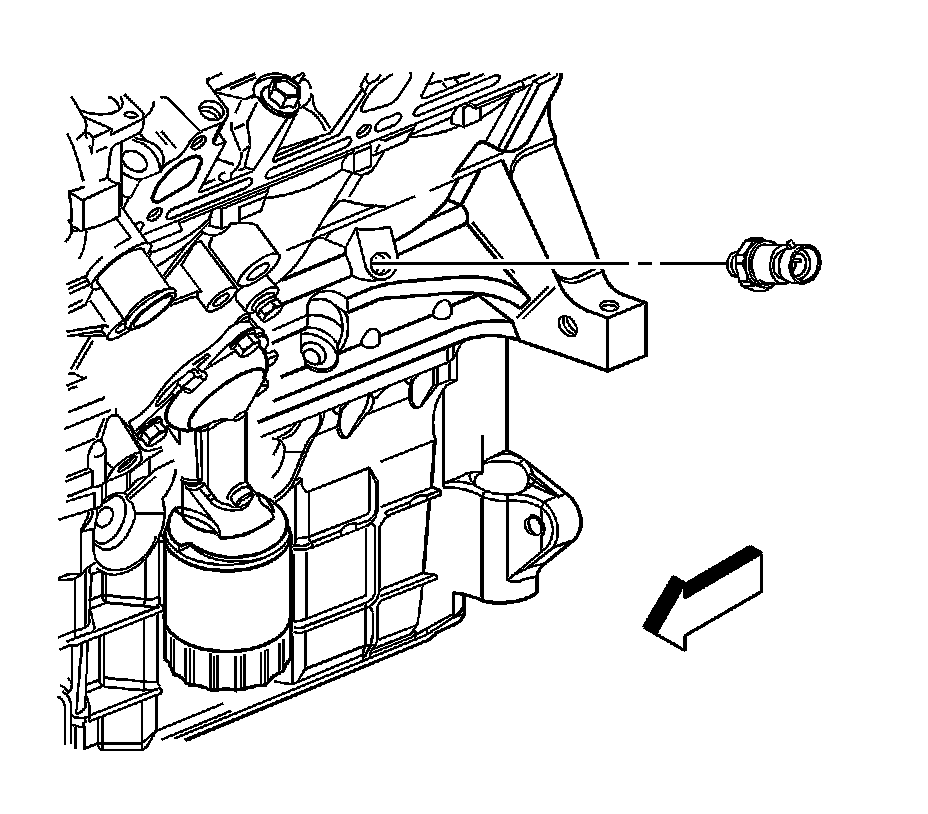

3. Remove the oil pressure indicator switch from the engine block.

Installation Procedure




1. Apply sealer to the oil pressure indicator switch threads. Refer to Adhesives, Fluids, Lubricants, and Sealers (Specifications) for the correct part number.

Caution: Refer to Component Fastener Tightening Caution (Component Fastener Tightening Caution).

2. Install the oil pressure indicator switch and tighten to 16 Nm (12 lb ft).




3. Connect the oil pressure indicator switch electrical connector (2).
4. Lower the vehicle.
