Control Assembly, HVAC
Component Connector End Views

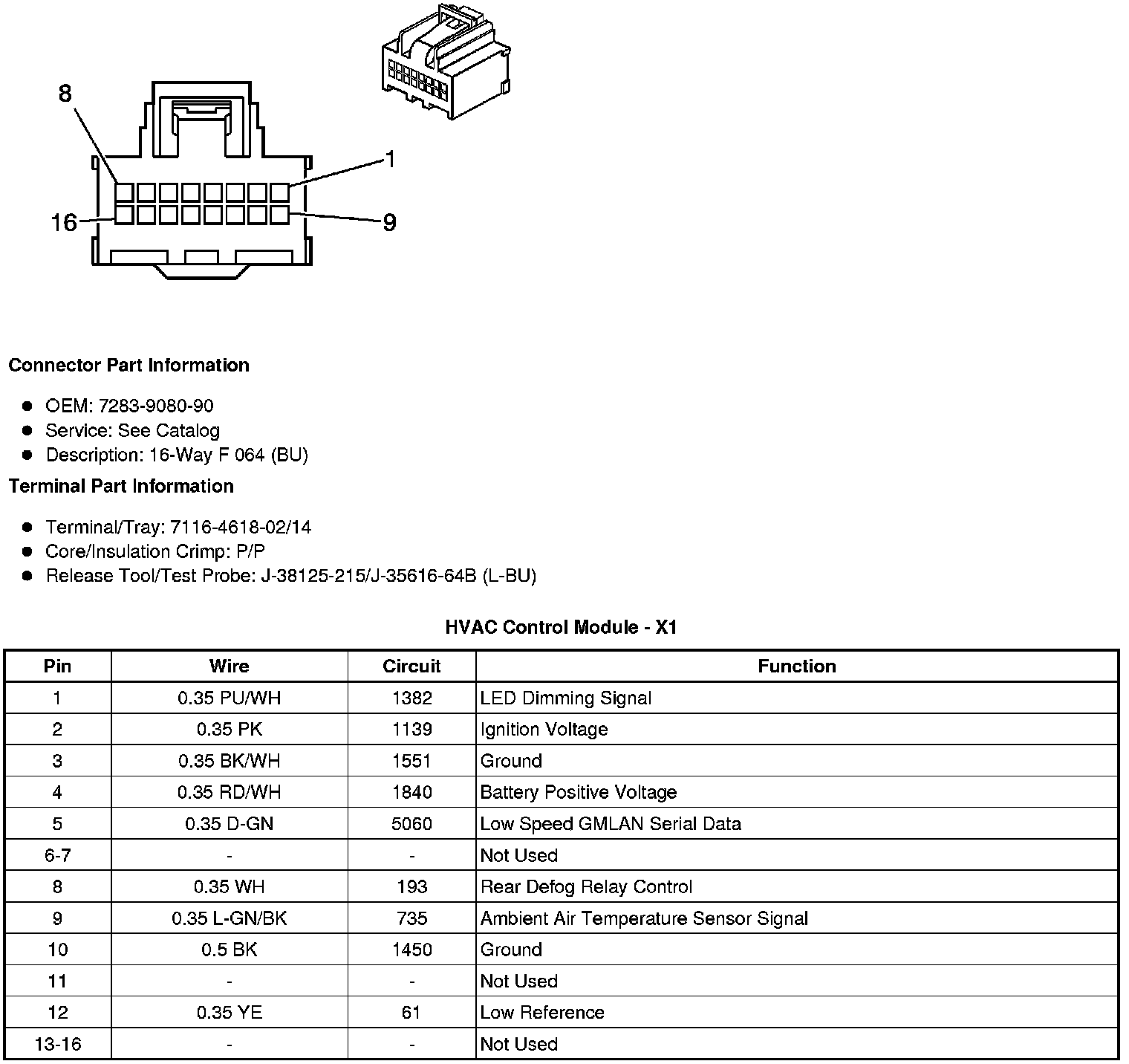

HVAC Control Module - X1

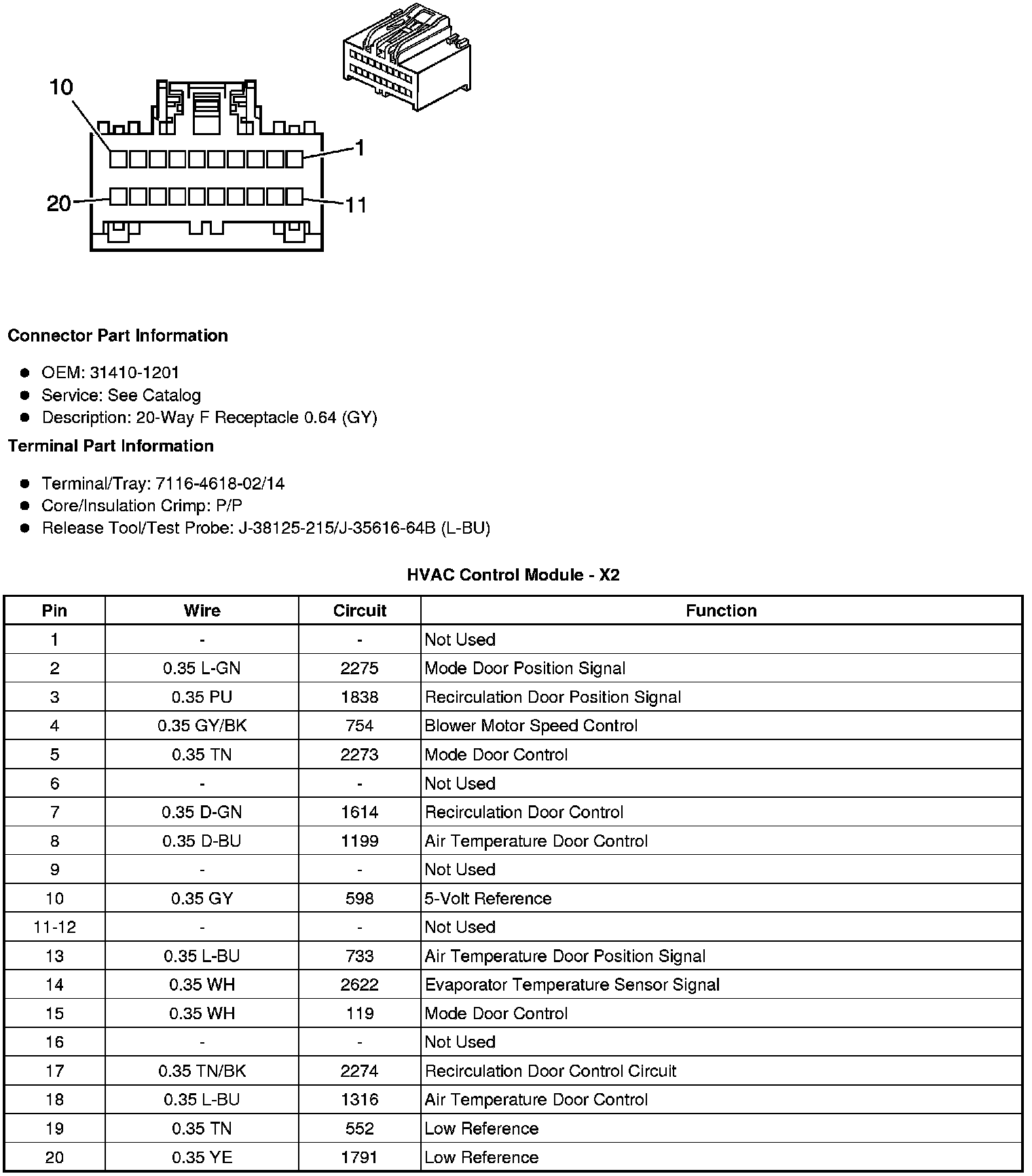

HVAC Control Module - X2
