Control Unit, Differential Lock




Component Connector End Views

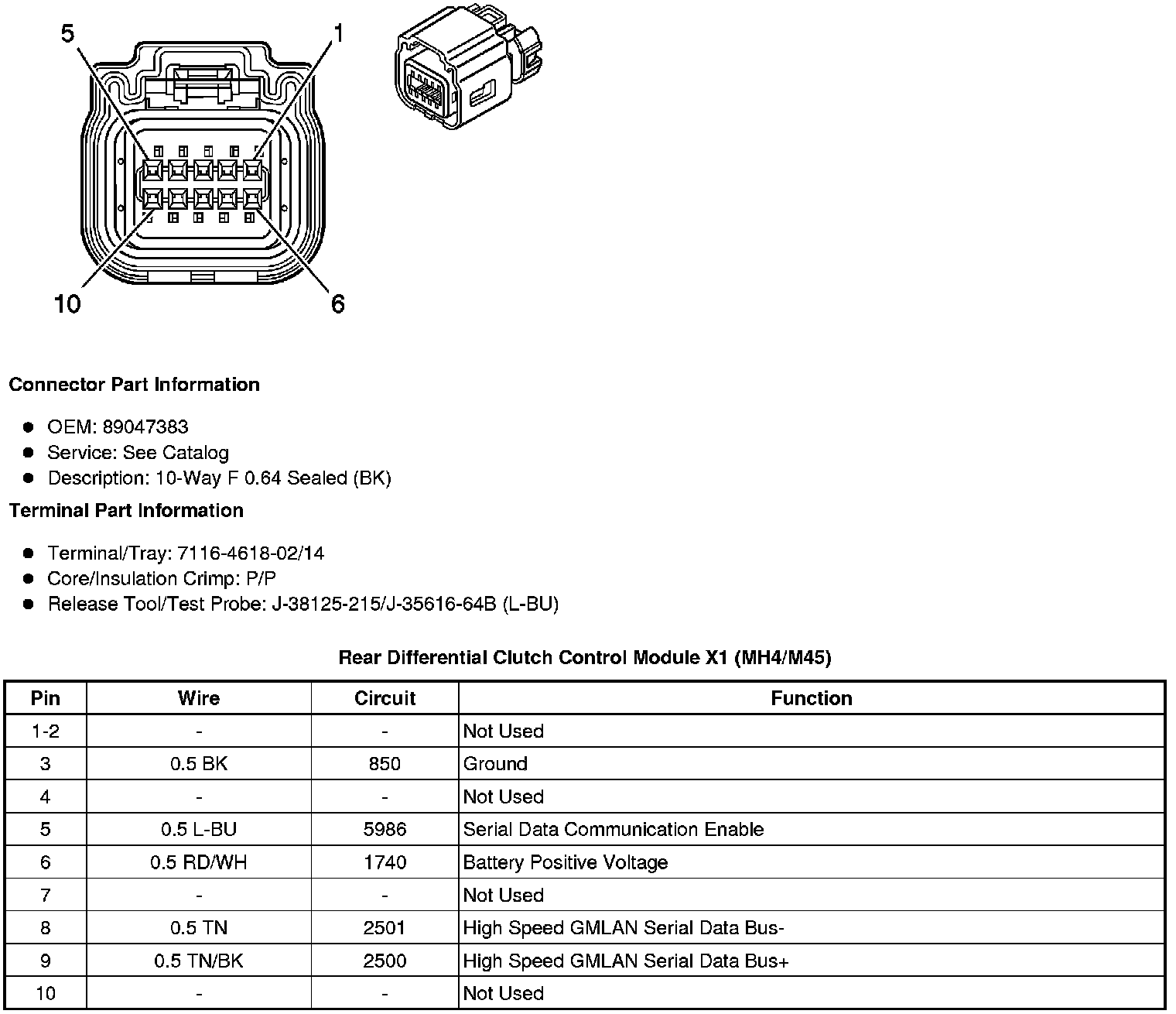

Rear Differential Clutch Control Module X1 (MH4/M45)

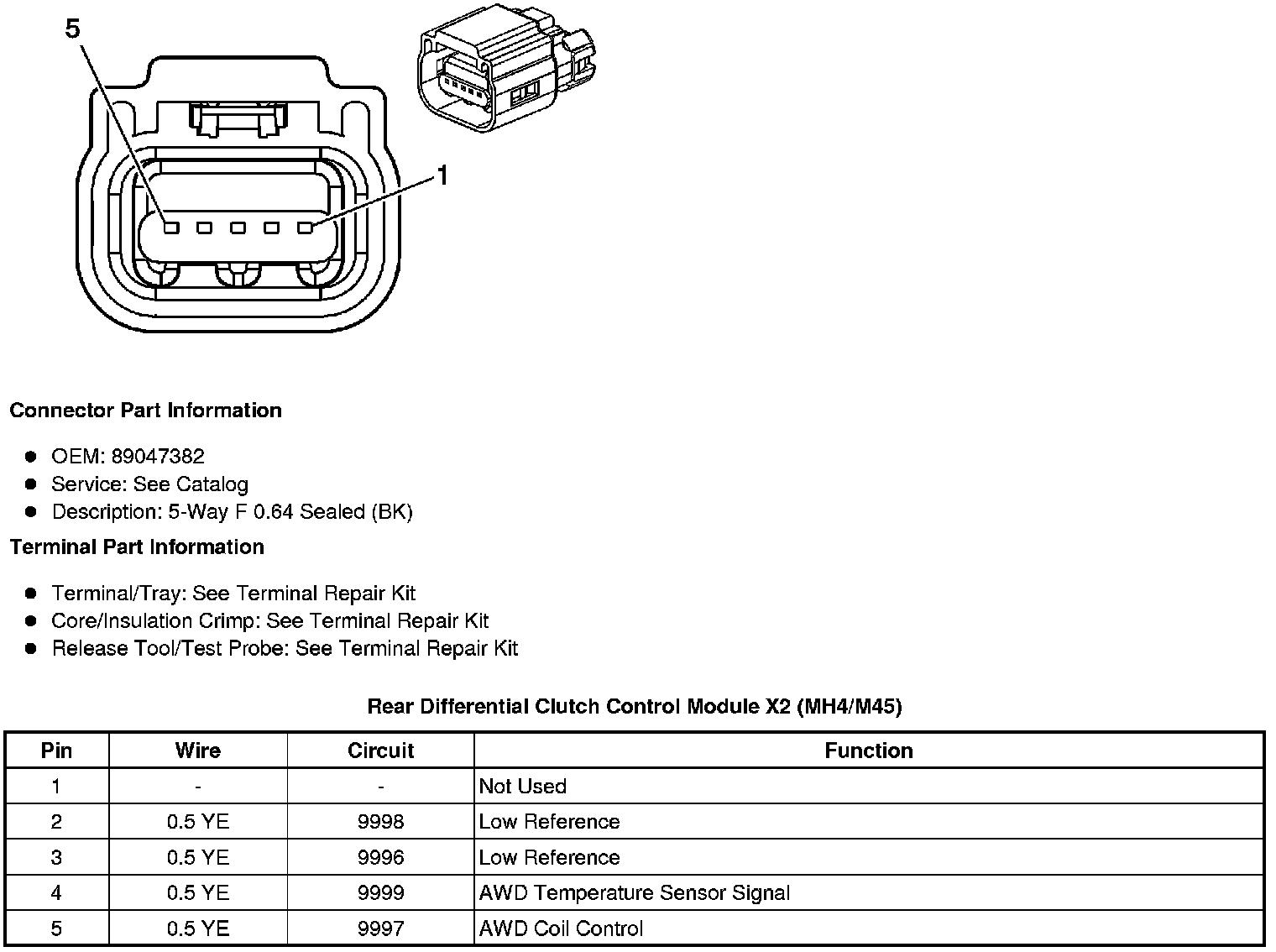

Rear Differential Clutch Control Module X2 (MH4/M45)

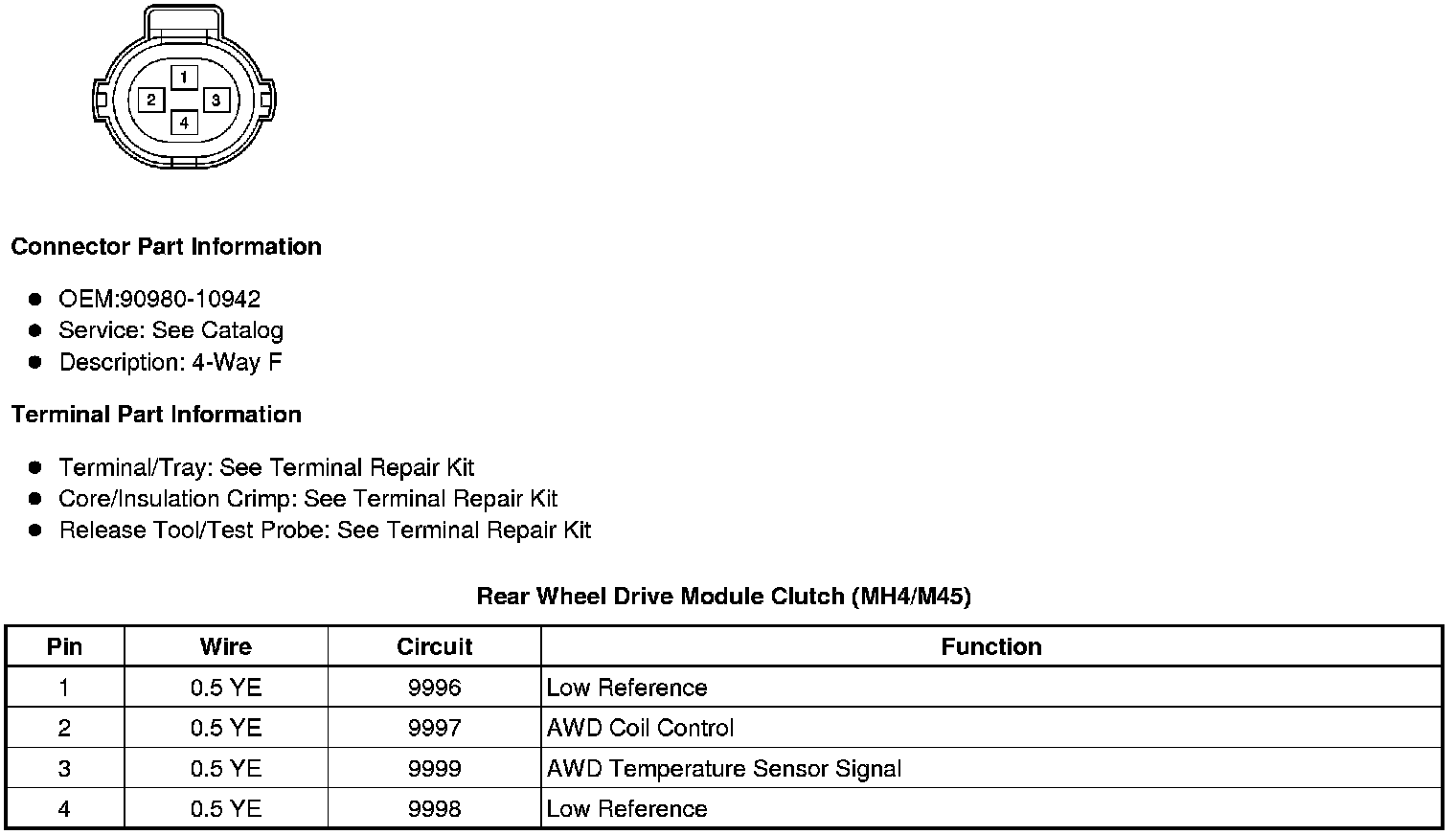

Rear Wheel Drive Module Clutch (MH4/M45)
