Seat Temperature Control Module




Component Connector End Views

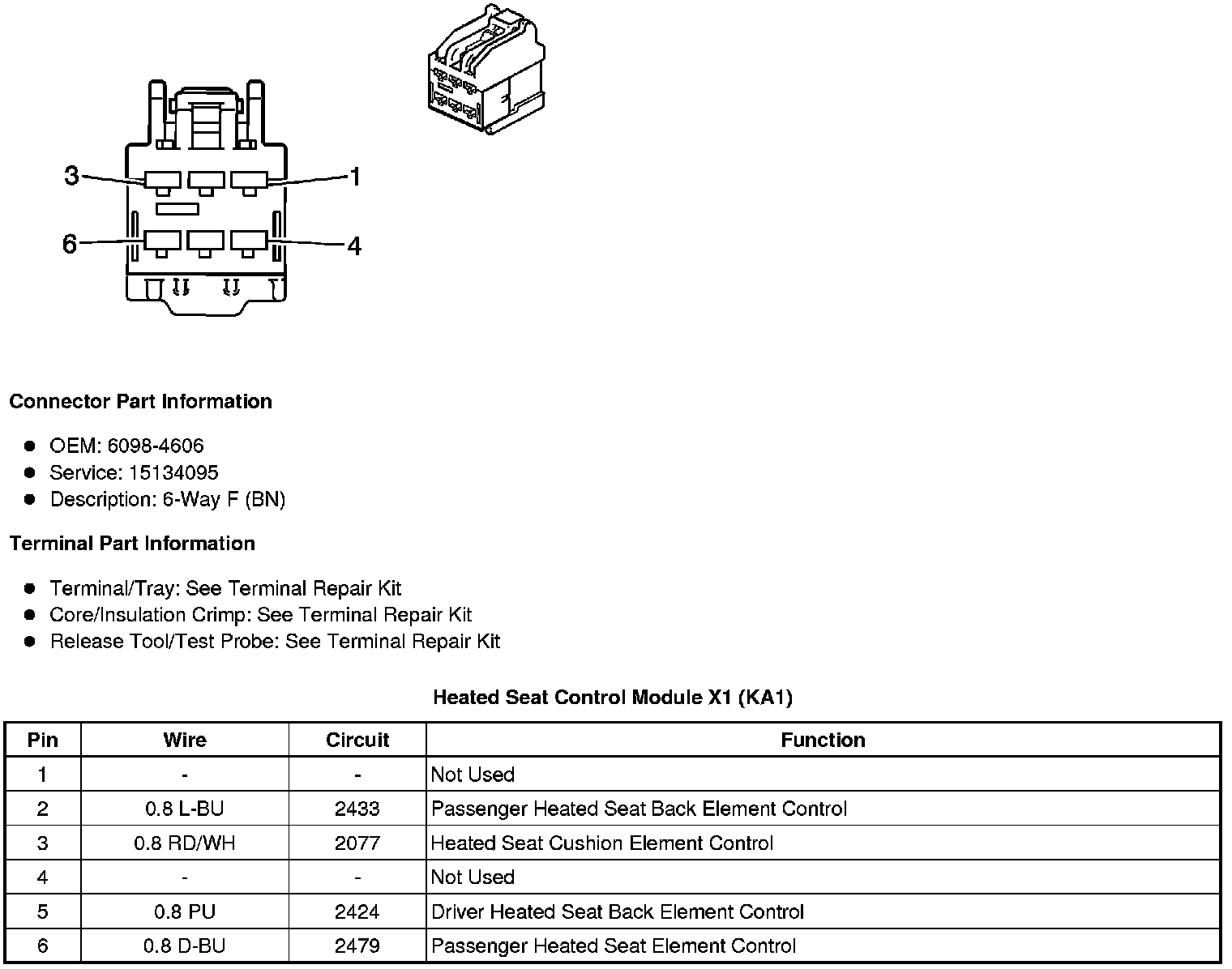

Heated Seat Control Module X1 (KA1)

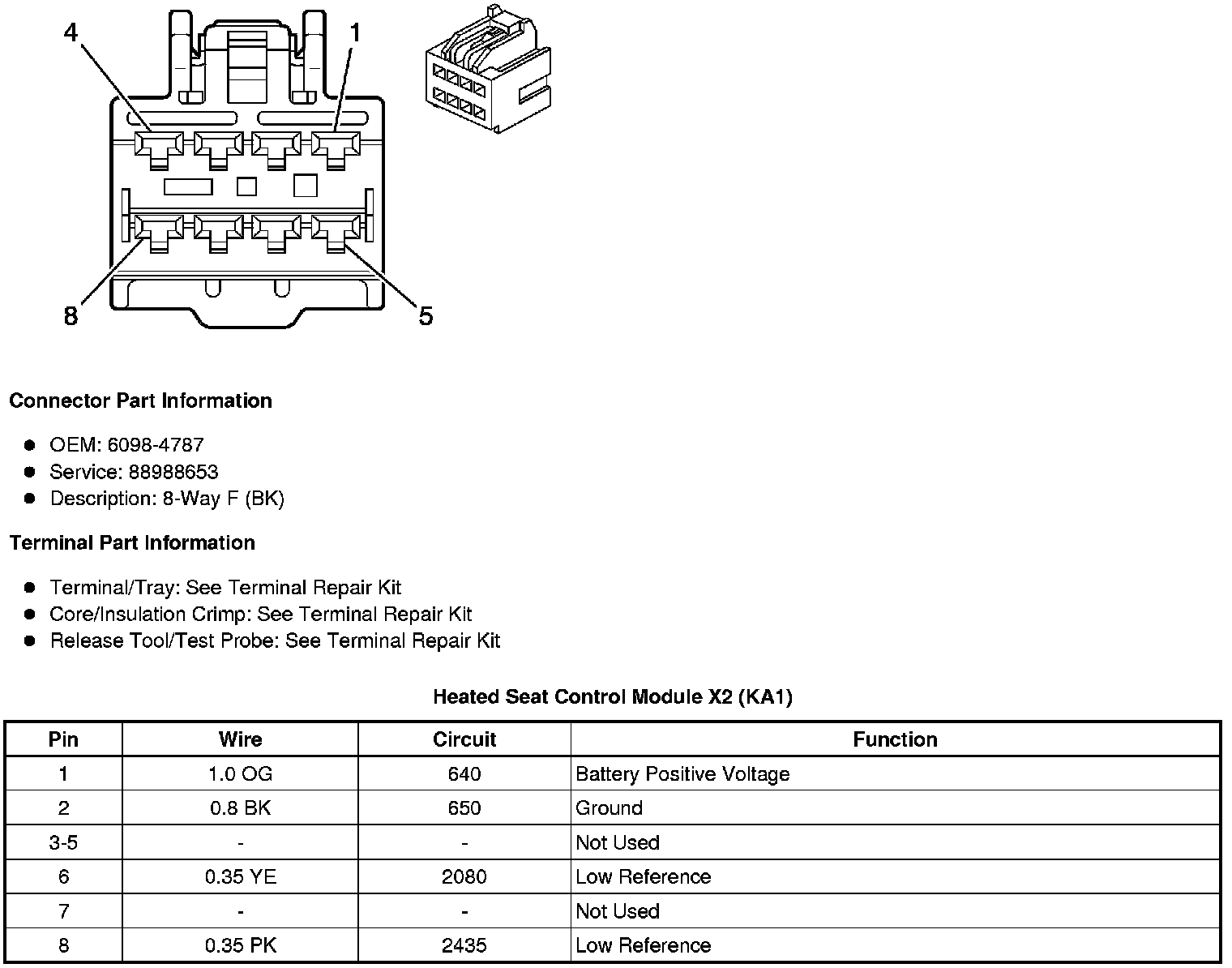

Heated Seat Control Module X2 (KA1)

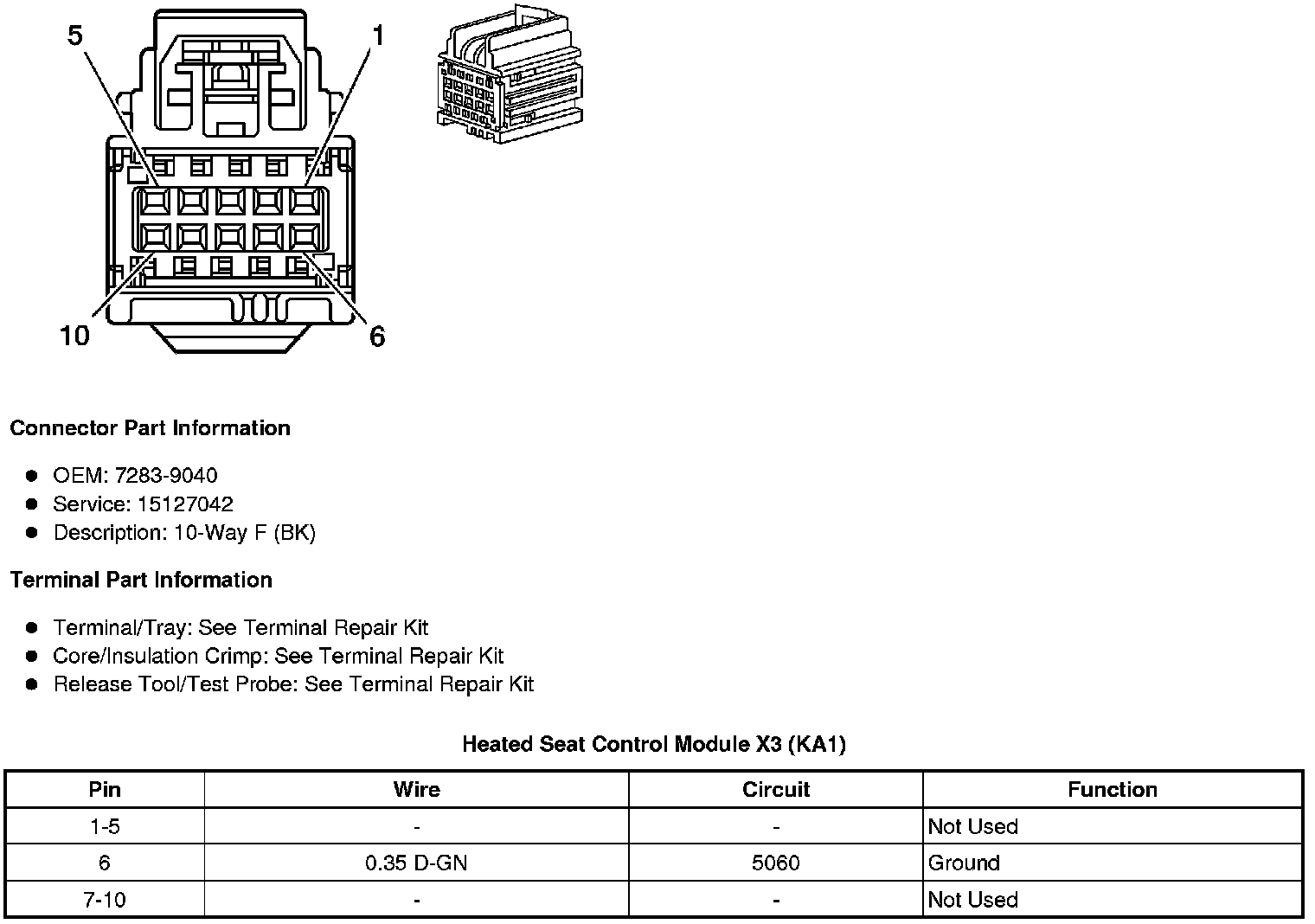

Heated Seat Control Module X3 (KA1)

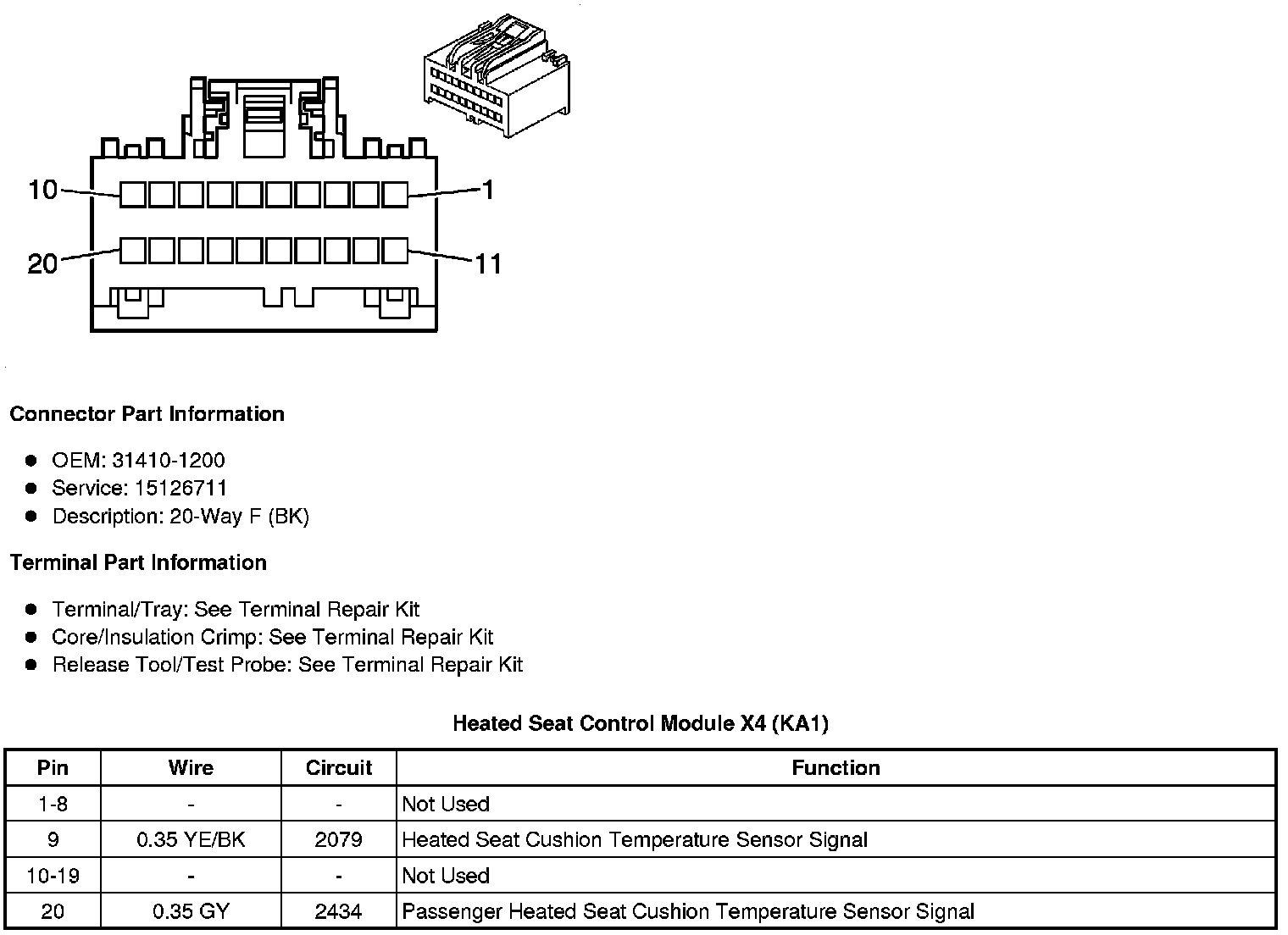

Heated Seat Control Module X4 (KA1)
