System Specifications

CRANKSHAFT PULLEY

Crankshaft Balancer Bolt
First pass 100 Nm (74 lb ft)
Final pass 150 Degrees

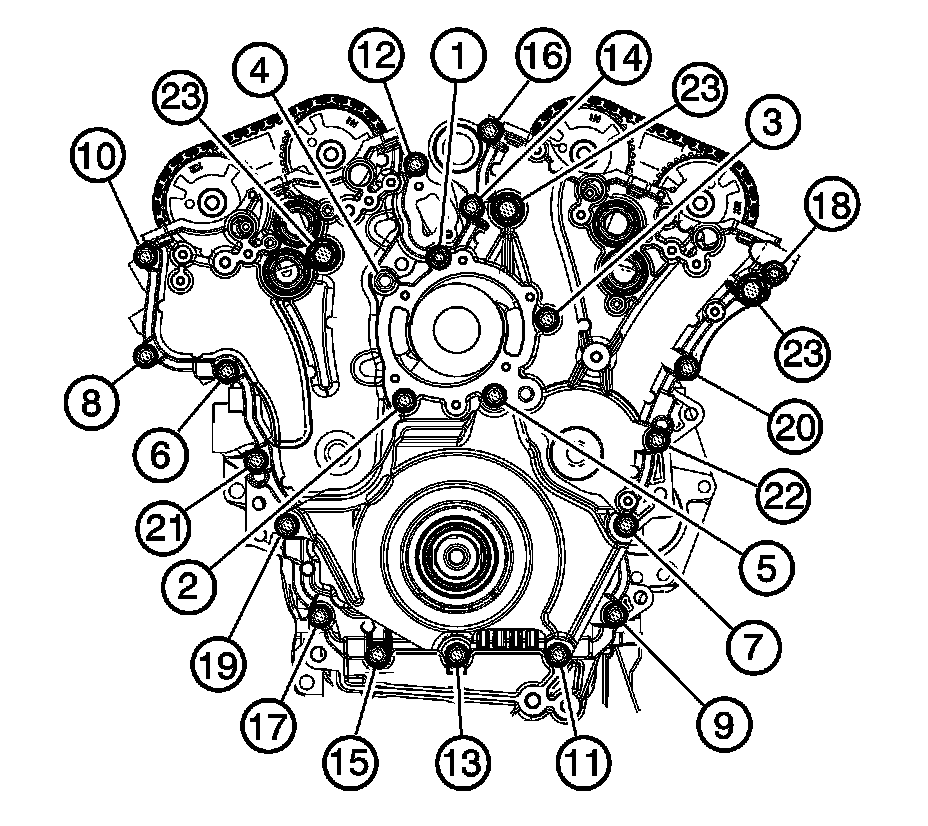

Engine Front Cover (TIMING COVER)




First Pass 20 Nm (14 lb ft)
Final Pass 60 Degrees

Primary Camshaft Drive Chain

Tensioner Bolt 23 Nm (17 lb ft)

Secondary Camshaft Drive Chain

Tensioner Bolt 23 Nm (17 lb ft)
