Automatic Transmission Input Shaft Speed (ISS) Sensor (MH2/MH4)

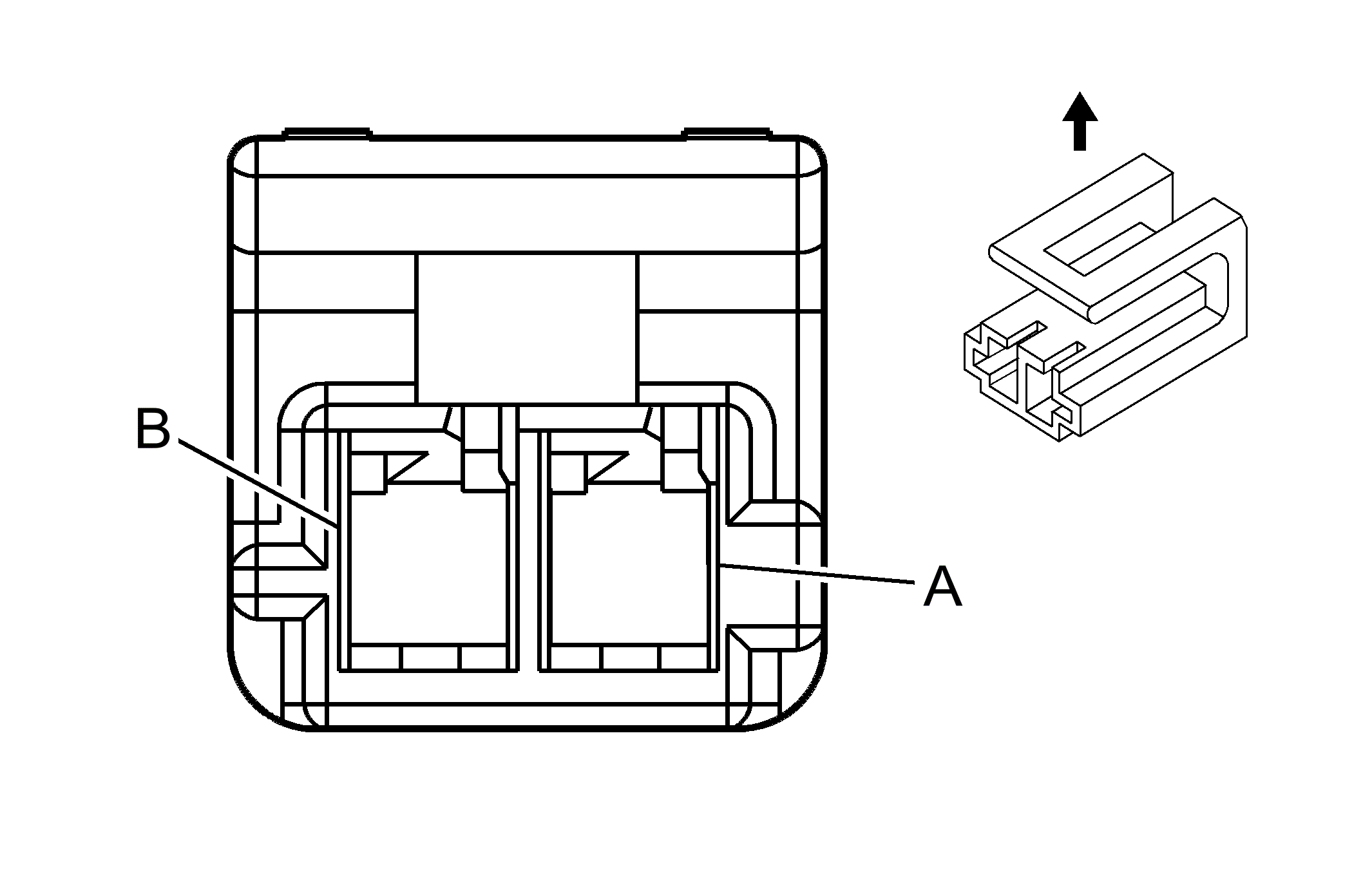

Fig 1: Automatic Transmission Input Shaft Speed (ISS) Sensor (MH2/MH4) Connector End View
GM1910665Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Input Shaft Speed (ISS) Sensor (MH2/MH4)

Pin Wire Circuit Function
A 0.5 WH - ISS High Signal
B 0.5 BK - ISS Low Signal
Connector Part Information
  • OEM: 15467085
  • Service: Non-Serviceable
  • Description: 2-Way F Metri-Pack 150.2 Series P2S (L-GY)
Terminal Part Information
  • Terminal/Tray: Non-Serviceable
  • Core/Insulation Crimp: Non-Serviceable
  • Release Tool/Test Probe: Non-Serviceable
