Electric Power Steering (EPS) Module X1 (LNJ)

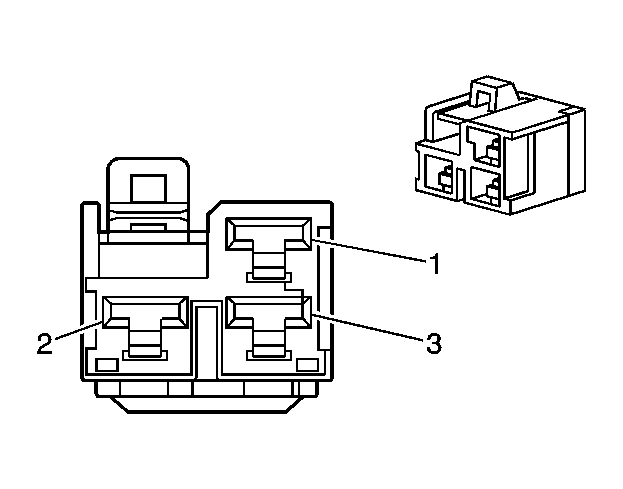

Fig 1: Electric Power Steering (EPS) Module X1 (LNJ) Connector End View
GM1881316Courtesy of GENERAL MOTORS CORP.
Electric Power Steering (EPS) Module X1 (LNJ)

Pin Wire Circuit Function
1 RD - Motor W Phase
2 WH - Motor V Phase
3 BK - Motor U Phase
Connector Part Information
  • OEM: 6098-0601
  • Service: See Catalog
  • Description: 3-Way F TS 187 Series (L-GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
