Heated Seat Control Module X2 (KA1)

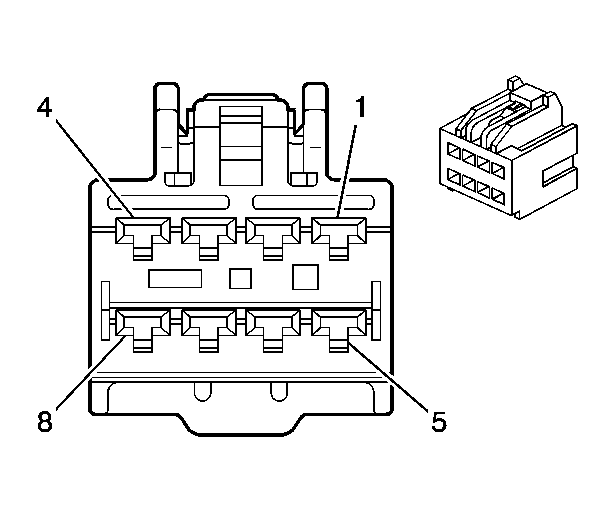

Fig 1: Heated Seat Control Module X2 (KA1) Connector End View
GM1860394Courtesy of GENERAL MOTORS CORP.
Heated Seat Control Module X2 (KA1)

Pin Wire Circuit Function
1 1.0 OG 640 Battery Positive Voltage
2 0.8 BK 650 Ground
3-5 - - Not Used
6 0.35 YE 2080 Low Reference
7 - - Not Used
8 0.35 PK 2435 Low Reference
Connector Part Information
  • OEM: 6098-4787
  • Service: 88988653
  • Description: 8-Way F (BK)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
