Automatic Transmission Output Shaft Speed (OSS) Sensor (M09/M45)

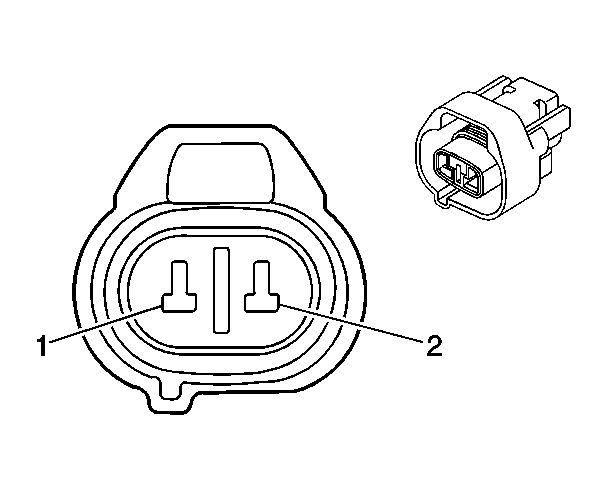

Courtesy of GENERAL MOTORS CORP. Automatic Transmission Output Shaft Speed (OSS) Sensor (M09/M45)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK |
401 |
Output Speed Sensor (OSS) Low Signal |
| 2 |
0.5 RD |
400 |
Output Shaft Sensor (OSS) High Signal |
Connector Part Information
- OEM: Aisin AW
- Service: Non-Serviceable
- Description: 2-Way F (BK)
|
Terminal Part Information
- Terminal: Non-Serviceable
- Core/Insulation Crimp: Non-Serviceable
- Release Tool/Test Probe: Non-Serviceable
|
