Automatic Transmission Shift Lock Control Solenoid

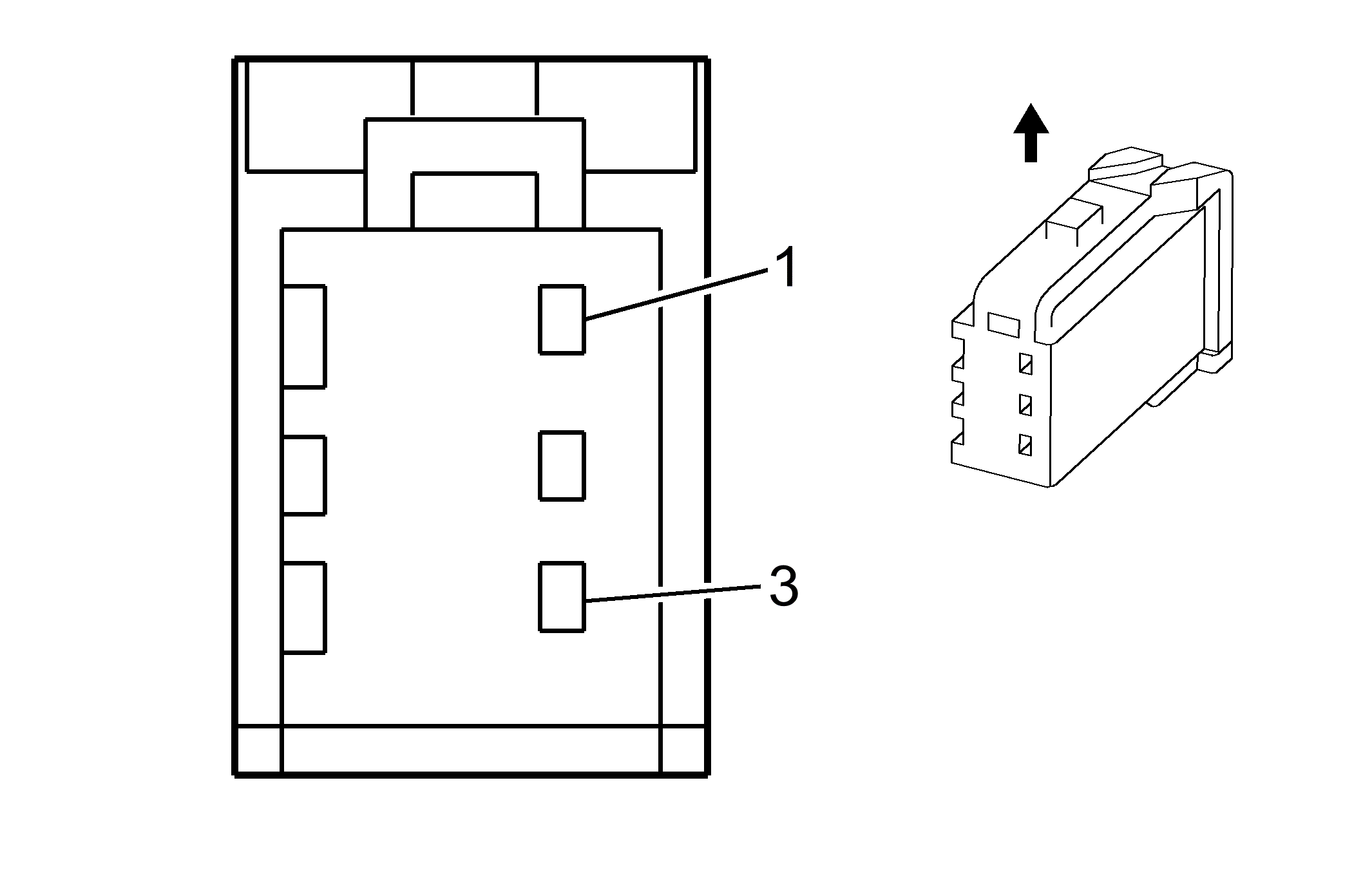

Fig 1: Automatic Transmission Shift Lock Control Solenoid Connector End View
GM1879137Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Shift Lock Control Solenoid

Pin Wire Circuit Function
1 0.35 BK 1450 Ground
2 - - Not Used
3 0.35 D-GN/WH 1135 Automatic Transmission Shift Lock Solenoid Control
Connector Part Information
  • OEM: 90000223
  • Service: See Catalog
  • Description: 3-Way F (WH)
