Inflatable Restraint Steering Wheel Module Coil X3

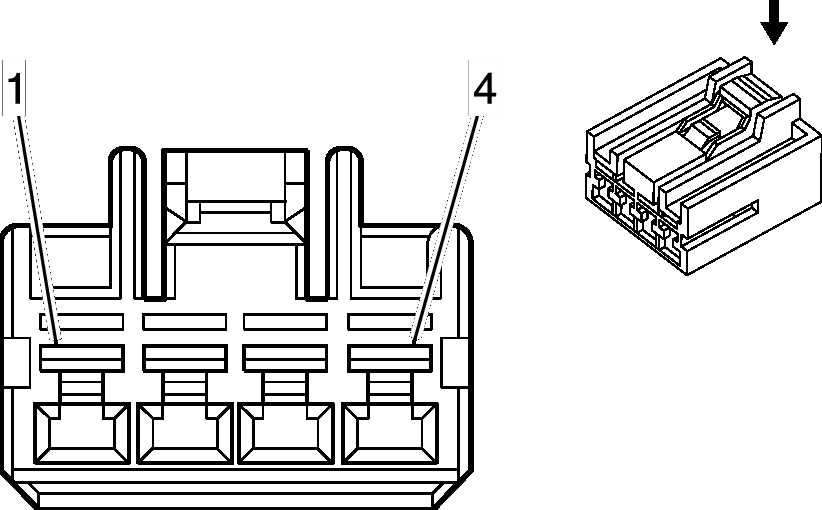

Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Steering Wheel Module Coil X3
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 WH |
3023 |
Steering Wheel Module - Stage 2 - High Control |
| 2 |
0.35 PK |
3022 |
Steering Wheel Module - Stage 2 - Low Control |
| 3 |
0.35 TN |
3021 |
Steering Wheel Module - Stage 1 - High Control |
| 4 |
0.35 BN |
3020 |
Steering Wheel Module - Stage 1 - Low Control |
Connector Part Information
- OEM: 15393421
- Service: 88987853
- Description: 4-Way F Micro-Pack 064 Series (YE)
|
Terminal Part Information
- Serviced as a pigtail
- Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)
|
