Rear Wheel Drive Module Clutch (MH4/M45)

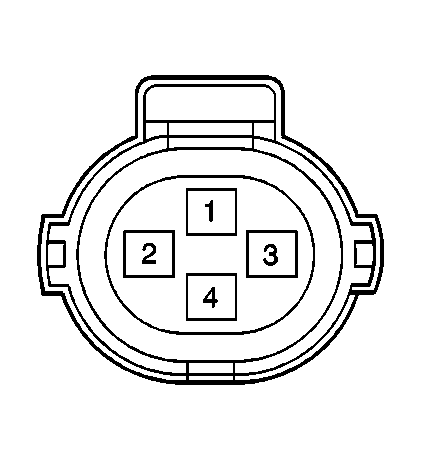

Fig 1: Rear Wheel Drive Module Clutch (MH4/M45) Connector End View
GM334403Courtesy of GENERAL MOTORS CORP.
Rear Wheel Drive Module Clutch (MH4/M45)

Pin Wire Circuit Function
1 0.5 YE 9996 Low Reference
2 0.5 YE 9997 AWD Coil Control
3 0.5 YE 9999 AWD Temperature Sensor Signal
4 0.5 YE 9998 Low Reference
Connector Part Information
  • OEM:90980-10942
  • Service: See Catalog
  • Description: 4-Way F

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
