Front of Vehicle/Engine Compartment Component Views

Fig 1: View Of Front Lighting Components (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Fig 2: View Of Front Lighting Components (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Right Front
2	Headlamp - Right
3	Headlamp - Left
4	Park/Turn Signal Lamp - Left Front
5	Marker Lamp - Left Front
6	Fog Lamp - Left Front (T96)
7	Fog Lamp - Right Front (T96)
8	Park/Turn Signal Lamp - Right Front

Fig 3: Below LF Headlamp View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left
2	Horn

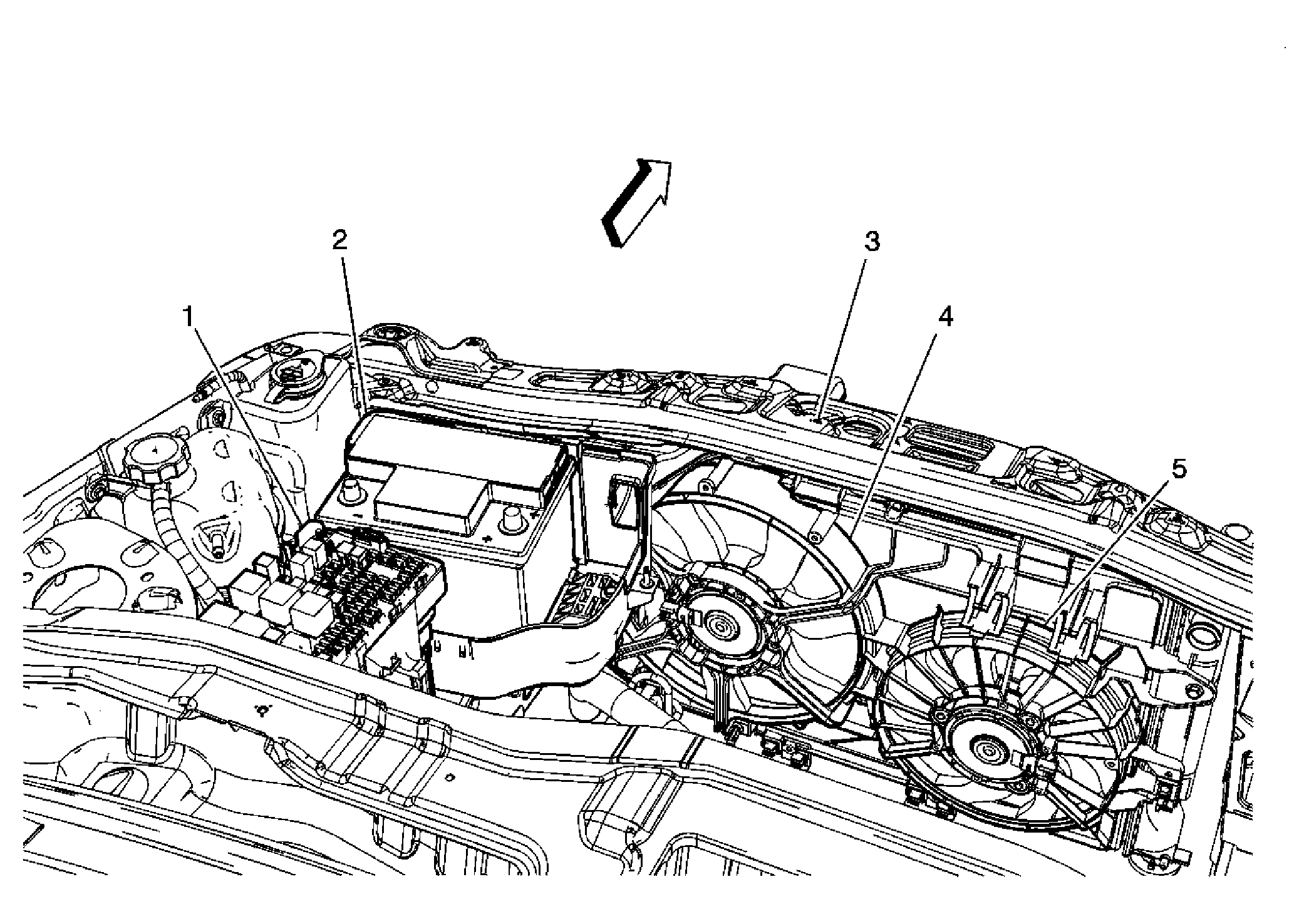

Fig 4: Front Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Fig 5: View Of Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Front Strut Tower
2	G103
3	Windshield Washer Fluid Pump
4	Battery Current Sensor

Fig 6: View Above Battery

Courtesy of GENERAL MOTORS CORP.

Fig 7: View Of Top Of Windshield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM)
2	Hood

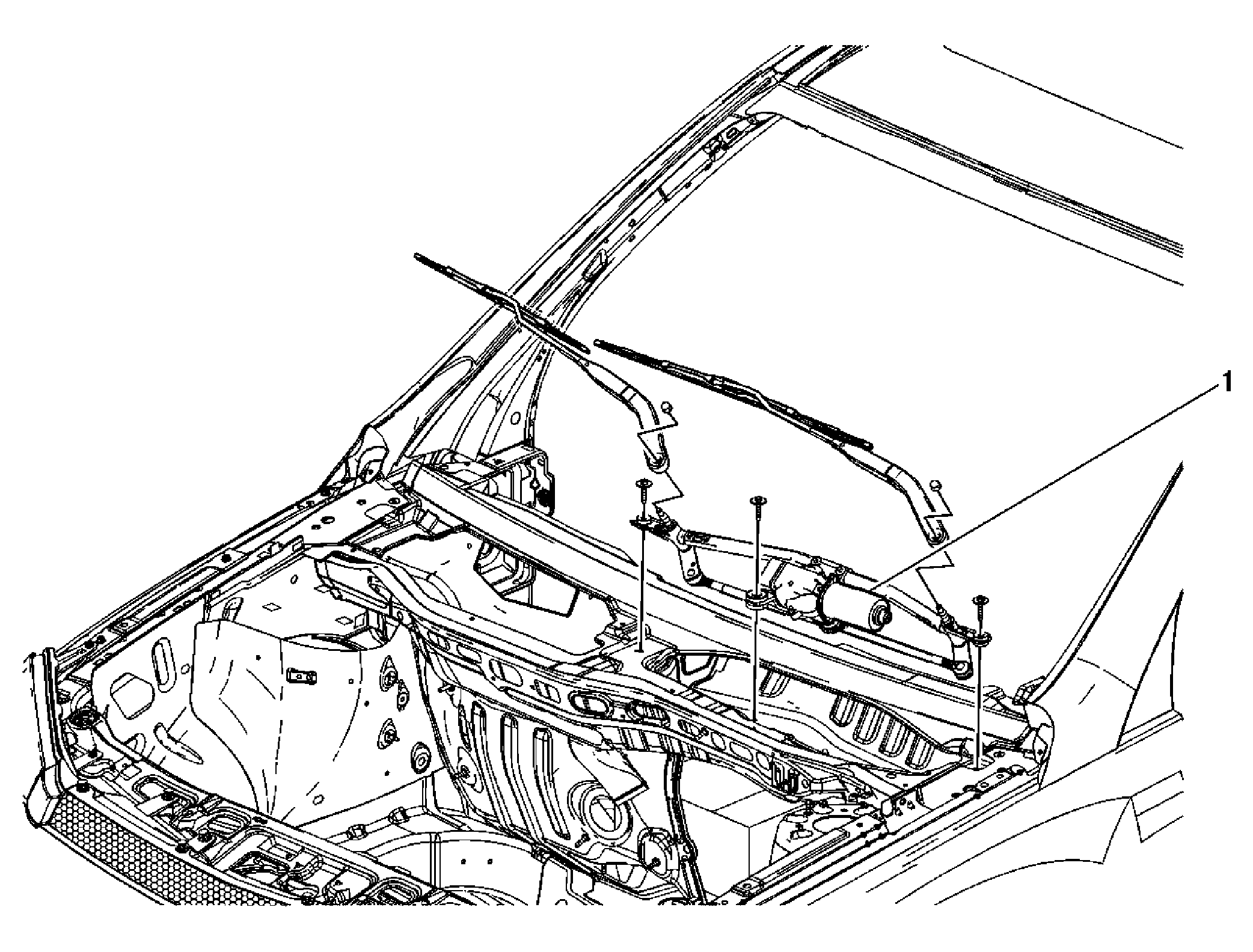

Fig 8: Windshield Wiper Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

Fig 9: View Near Brake Booster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Left Front Strut Tower
3	Electronic Brake Control Module (EBCM)

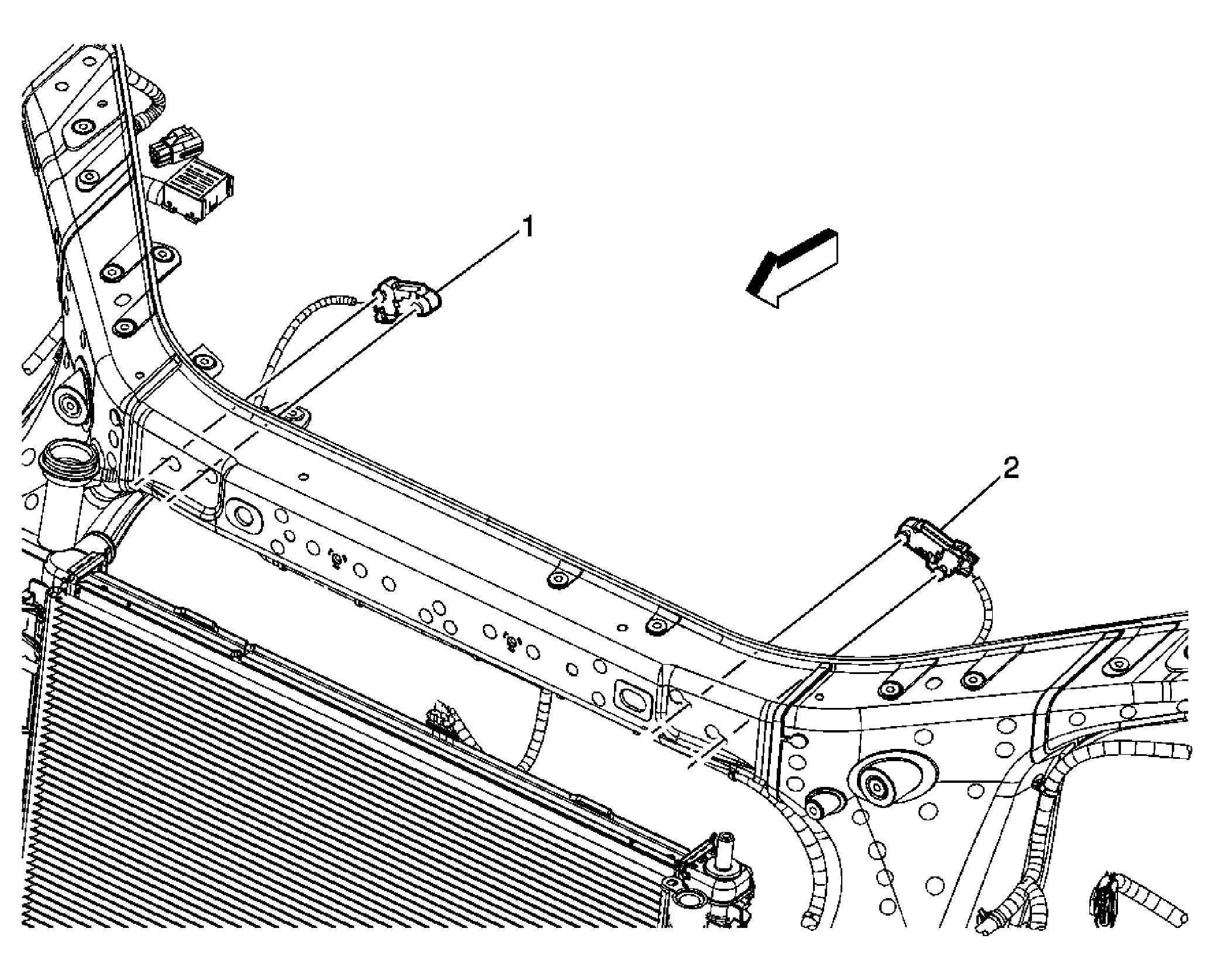

Fig 10: Front End Sensor Components (ASF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left
