Ignition and Start Switch Replacement

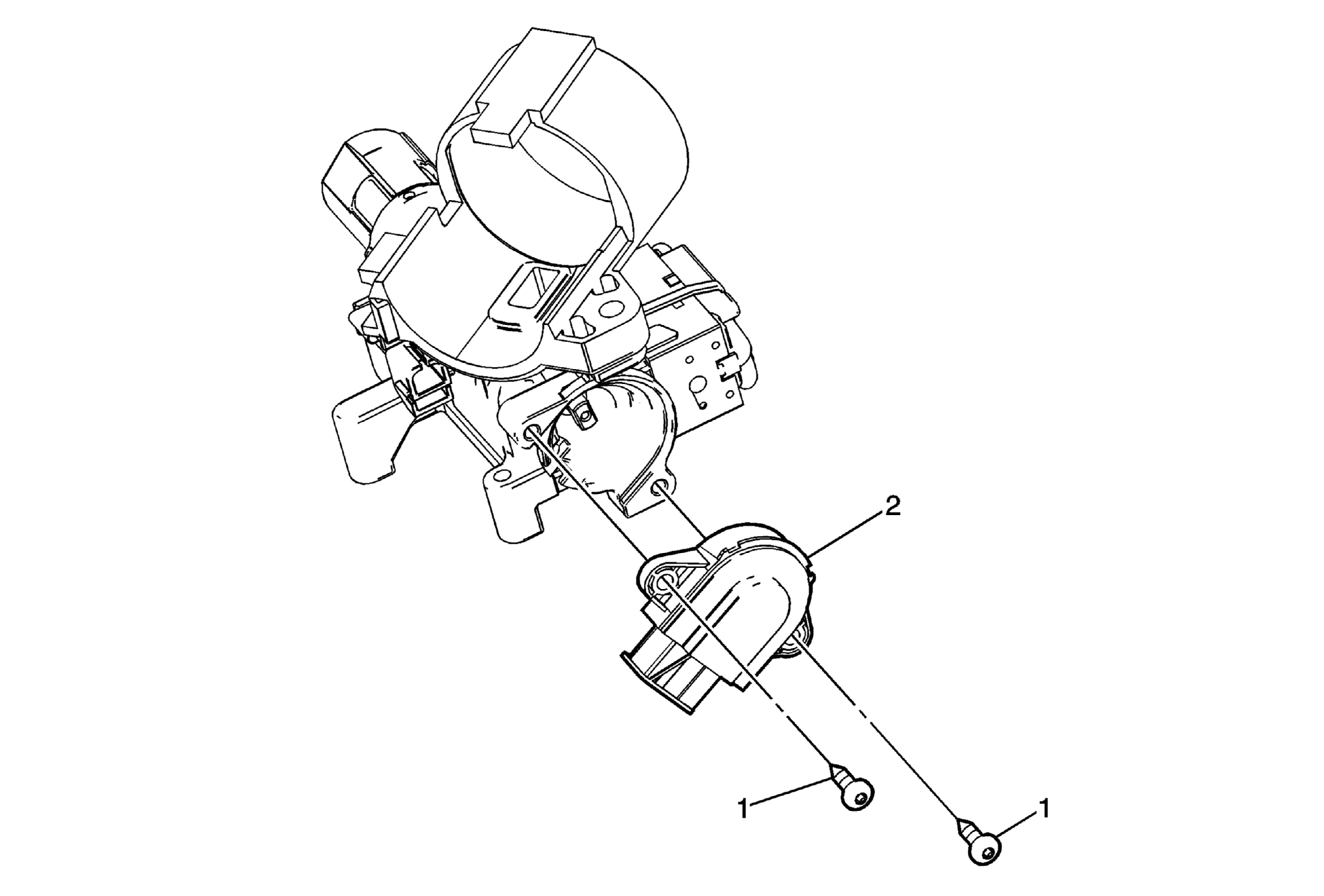

Fig 1: View Of Ignition and Start Switch Electrical Connectors
GM1867492Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement .
1 Ignition/Start Switch Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Ignition/Start Switch
