Power Moding Schematics

Fig 1: RAP Relay Schematic
GM2086000Courtesy of GENERAL MOTORS CORP.

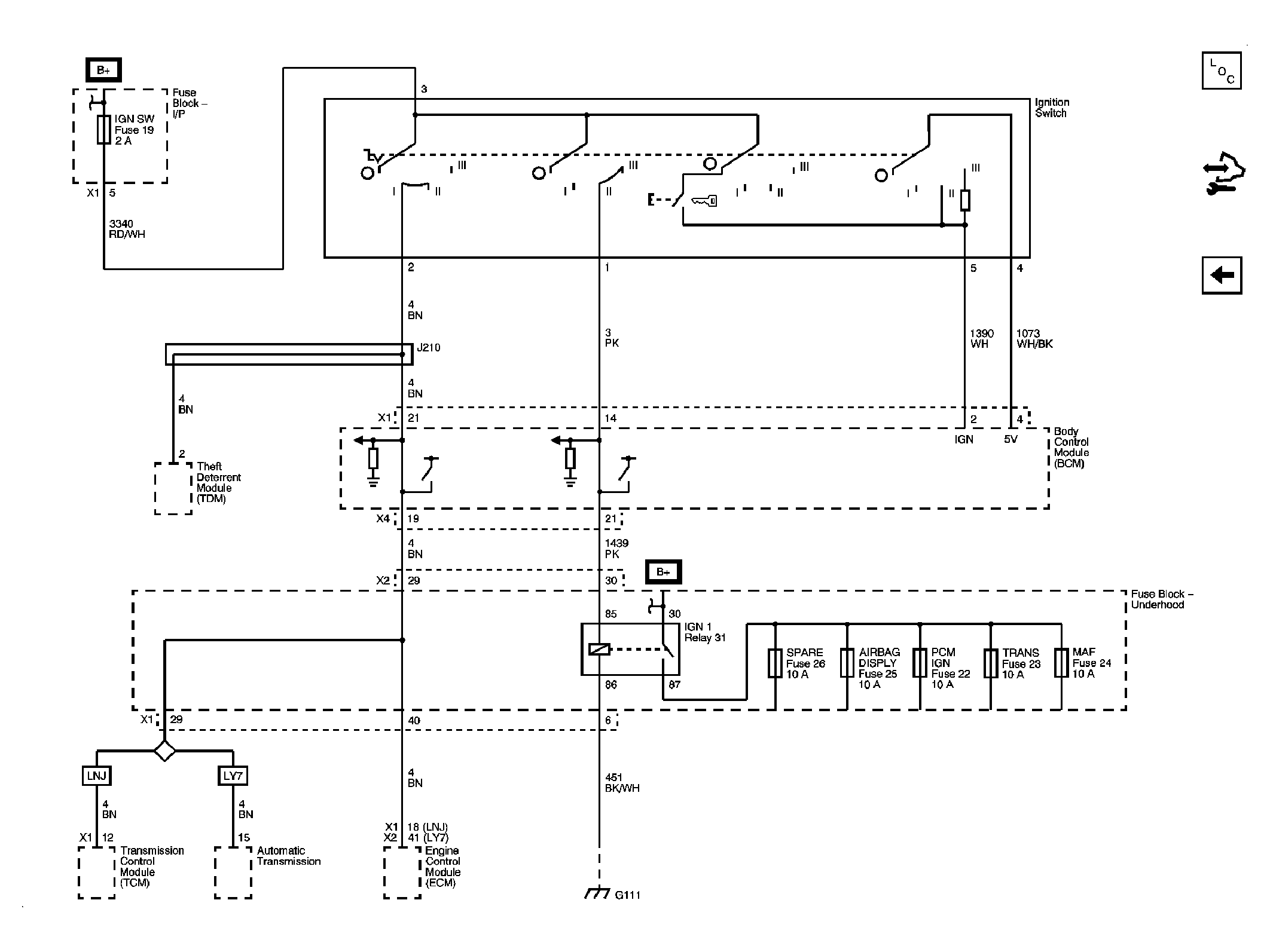

Fig 2: Ignition Switch and IGN MAIN Relay Schematic
GM2086006Courtesy of GENERAL MOTORS CORP.
