Disassembled Views

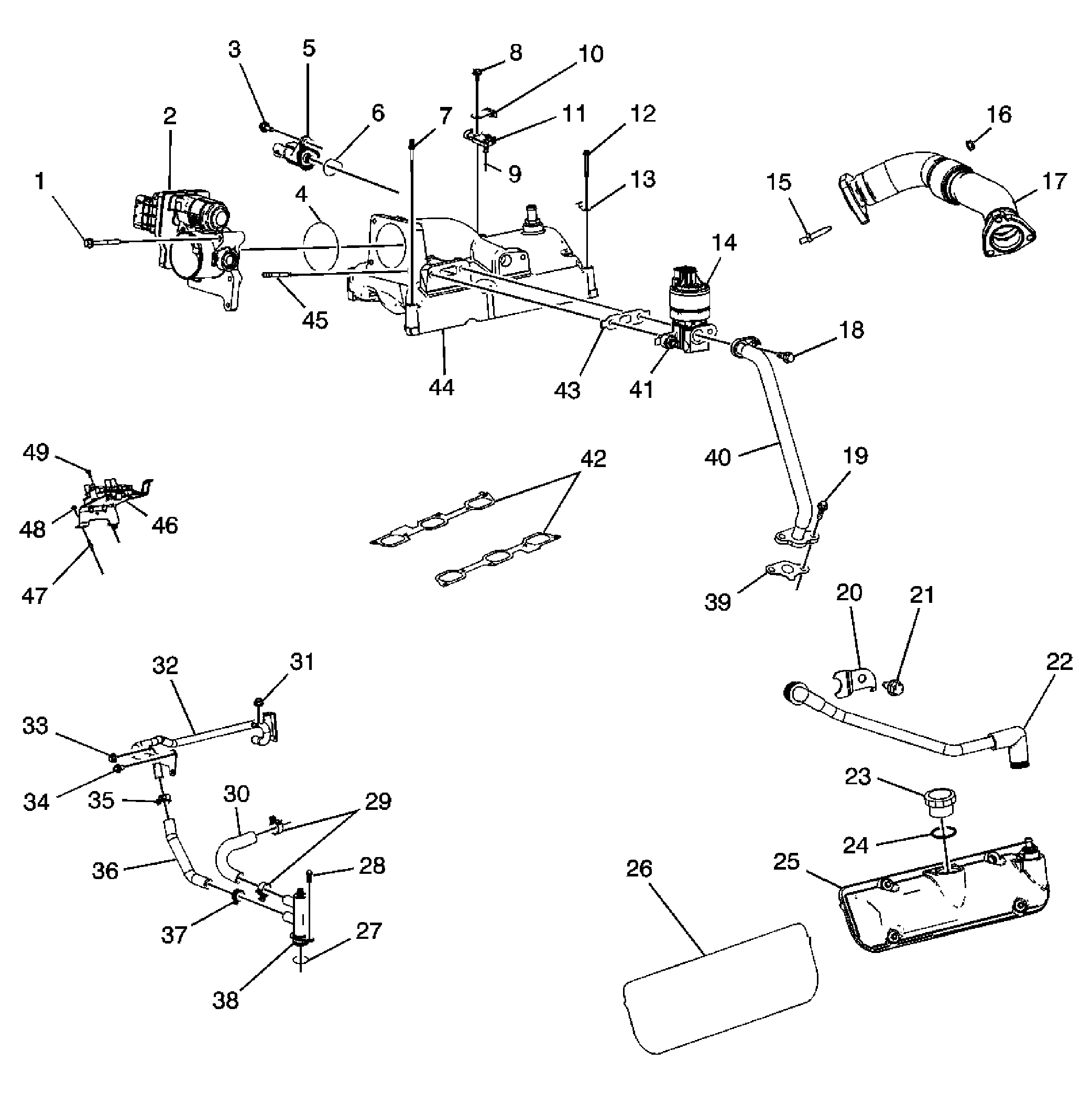

Fig 1: View Of Intake Manifold & Components
GM1834794Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Body Bolt
2 Throttle Body
3 EVAP Purge Valve Bolt
4 Throttle Body Seal
5 EVAP Purge Valve
6 EVAP Purge Valve Seal
7 Upper Intake Manifold Stud
8 MAP Sensor Bolt
9 MAP Sensor Seal
10 MAP Sensor Clip
11 MAP Sensor
12 Upper Intake Manifold Bolt
13 Spark Plug Wire Support
14 Exhaust Gas Recirculation Valve
15 Exhaust Crossover Pipe Stud
16 Exhaust Crossover Pipe Nut
17 Exhaust Crossover Pipe
18 Exhaust Gas Recirculation Valve Pipe Bolt
19 Exhaust Gas Recirculation Valve Pipe Bolt
20 Positive Crankcase Ventilation Tube Clip
21 Positive Crankcase Ventilation Tube Clip Bolt
22 Positive Crankcase Ventilation Tube
23 Oil Filler Cap
24 Oil Filler Cap Seal
25 Valve Rocker Arm Cover
26 Valve Rocker Arm Cover Gasket
27 Heater Outlet Pipe Seal
28 Heater Outlet Pipe Bolt
29 Heater Outlet Pipe Clamp
30 Heater Outlet Hose
31 Heater Outlet Pipe Nut
32 Heater Outlet Pipe
33 Heater Outlet Pipe Nut
34 Heater Outlet Pipe Bolt
35 Heater Outlet Pipe Clamp
36 Heater Outlet Hose
37 Heater Outlet Pipe Clamp
38 Thermostat Bypass Pipe Adapter
39 Exhaust Gas Recirculation Valve Gasket
40 Exhaust Gas Recirculation Valve Pipe
41 Exhaust Gas Recirculation Valve Bolt
42 Upper Intake Manifold Gasket
43 Exhaust Gas Recirculation Valve Gasket
44 Upper Intake Manifold
45 Throttle Body Stud
46 Ignition Coil
47 Ignition Coil Stud
48 Ignition Coil Bracket Nut
49 Ignition Coil Bolt

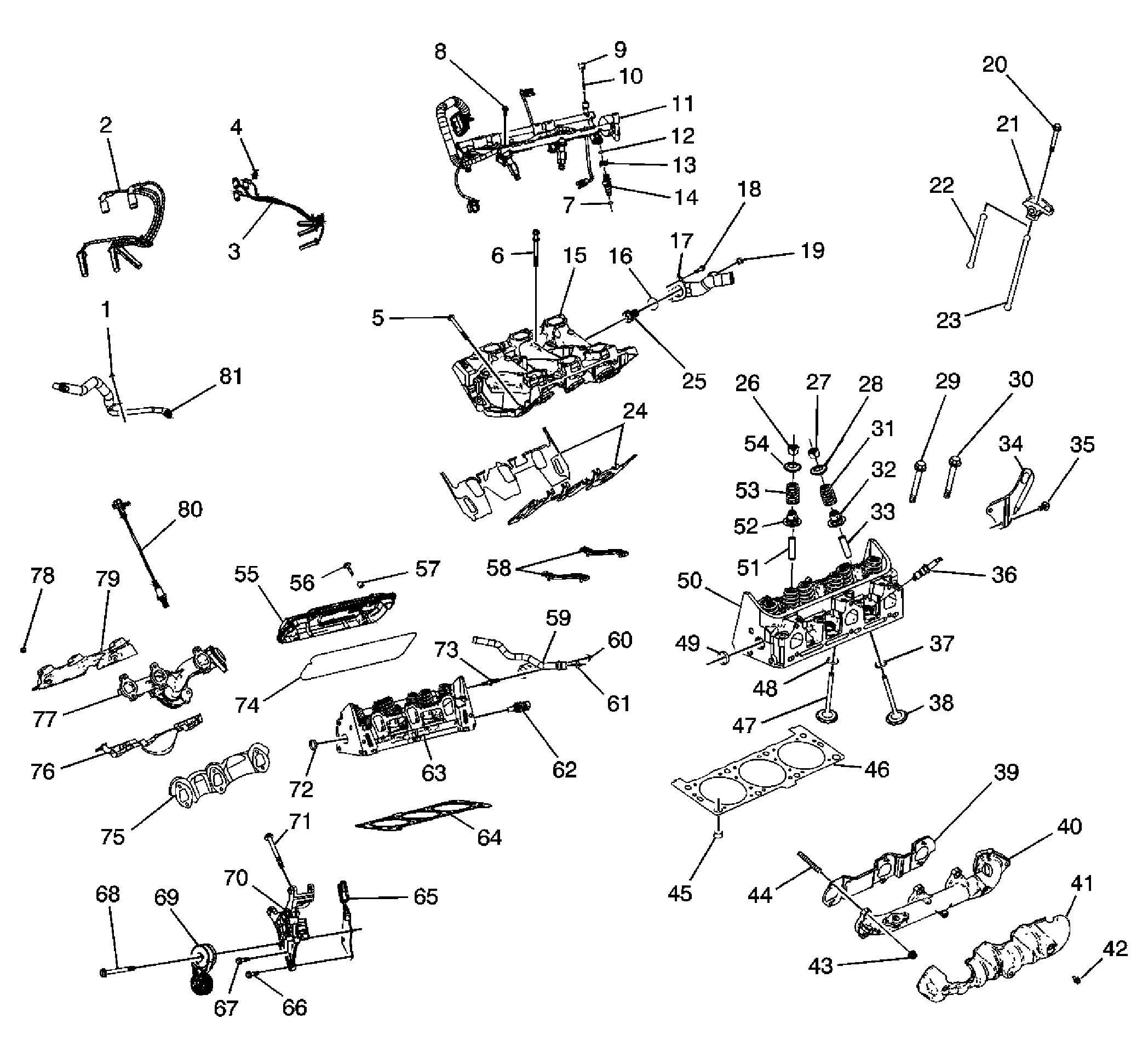

Fig 2: View Of Intake Manifold, Cylinder Head & Components
GM1834796Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Positive Crankcase Ventilation Tube Nut
2 Spark Plug Wire Harness
3 Spark Plug Wire Harness
4 Spark Plug Wire Support
5 Lower Intake Manifold Bolt
6 Lower Intake Manifold Bolt
7 Fuel Injector Seal
8 Sequential Multiport Fuel Injection Fuel Rail Bolt
9 Fuel Service Port Cap
10 Fuel Schrader Valve
11 Sequential Multiport Fuel Injection Fuel Rail
12 Fuel Injector Seal
13 Fuel Injector Retaining Ring
14 Sequential Multiport Fuel Injector
15 Lower Intake Manifold
16 Engine Coolant Thermostat Seal
17 Water Outlet Housing
18 Water Outlet Housing Bolt
19 Water Outlet Housing Fitting
20 Valve Rocker Arm Bolt
21 Valve Rocker Arm
22 Valve Push Rod
23 Valve Push Rod
24 Lower Intake Manifold Gasket
25 Engine Coolant Thermostat
26 Valve Stem Key
27 Valve Stem Key
28 Valve Spring Cap
29 Cylinder Head Bolt
30 Cylinder Head Bolt
31 Valve Spring
32 Valve Stem Oil Seal
33 Valve Guide
34 Engine Lift Rear Bracket
35 Engine Lift Rear Bracket Bolt
36 Spark Plug
37 Exhaust Valve Seat
38 Exhaust Valve
39 Exhaust Manifold Gasket
40 Exhaust Manifold
41 Exhaust Manifold Heat Shield
42 Exhaust Manifold Heat Shield Bolt
43 Exhaust Manifold Nut
44 Exhaust Manifold Stud
45 Cylinder Head Location Pin
46 Cylinder Head Gasket
47 Intake Valve
48 Intake Valve Seat
49 Cylinder Head Core Hole Plug
50 Cylinder Head
51 Valve Guide
52 Valve Stem Oil Seal
53 Valve Spring
54 Valve Spring Cap
55 Valve Rocker Arm Cover
56 Valve Rocker Arm Cover Bolt
57 Valve Rocker Arm Cover Bolt Grommet
58 Lower Intake Manifold Seal
59 Heater Inlet Pipe
60 Heater Inlet Pipe Nut
61 Heater Inlet Pipe Seal
62 Engine Coolant Temperature Sensor
63 Cylinder Head
64 Cylinder Head Gasket
65 Engine Lift Front Bracket
66 Generator Bracket Bolt
67 Generator Bracket Bolt
68 Drive Belt Tensioner Bolt
69 Drive Belt Tensioner
70 Generator Bracket
71 Generator Bracket Bolt
72 Cylinder Head Core Hole Plug
73 Heater Inlet Pipe Stud
74 Valve Rocker Arm Cover Gasket
75 Exhaust Manifold Gasket
76 Exhaust Manifold Heat Shield
77 Exhaust Manifold
78 Exhaust Manifold Heat Shield Bolt
79 Exhaust Manifold Heat Shield
80 Oxygen Sensor
81 Positive Crankcase Ventilation Tube

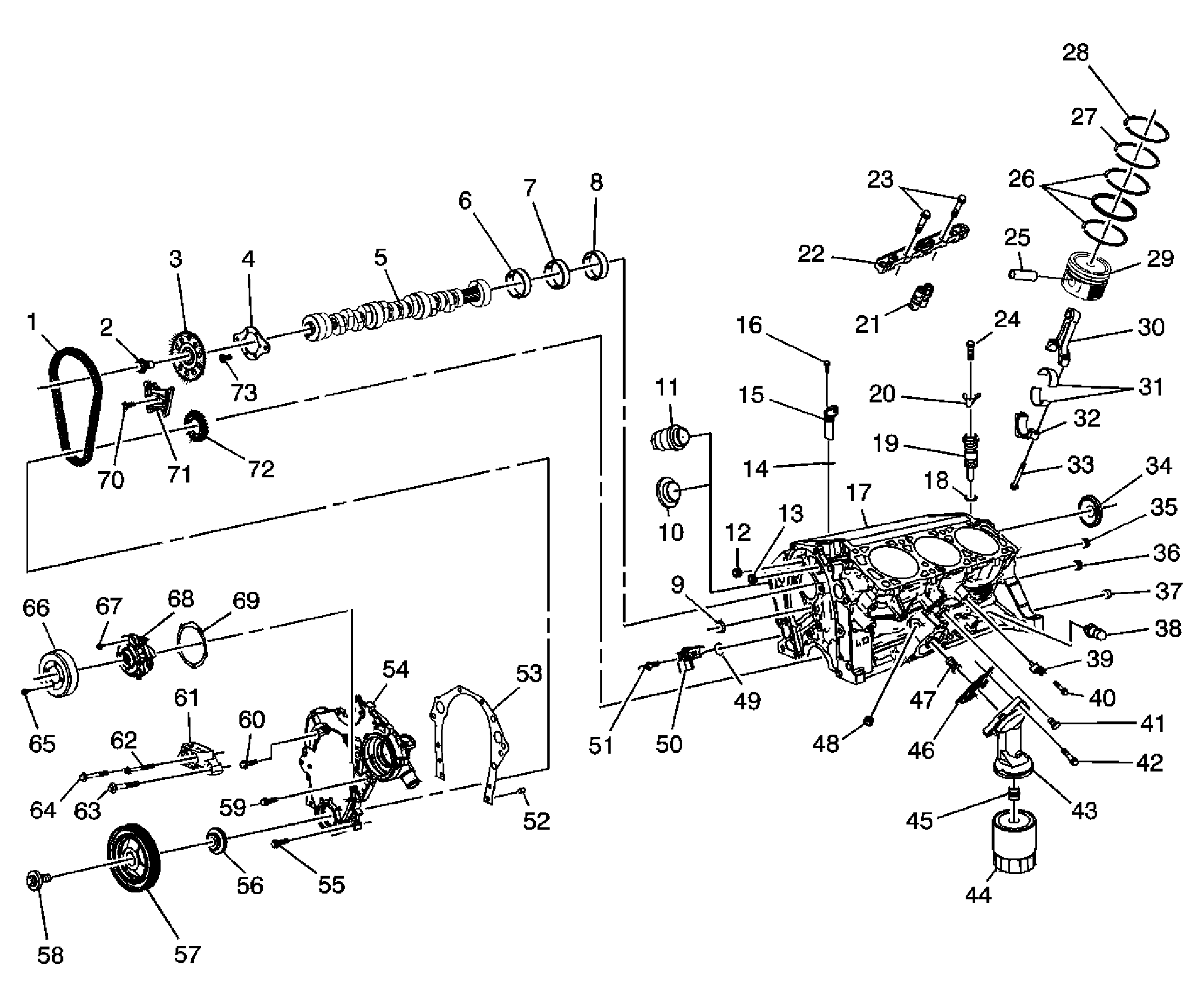

Fig 3: View Of Engine Block & Components
GM1834799Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Timing Chain
2 Camshaft Sprocket Bolt
3 Camshaft Sprocket
4 Camshaft Thrust Plate
5 Camshaft
6 Camshaft Bearing
7 Camshaft Bearing
8 Camshaft Bearing
9 Engine Block Oil Gallery Plug
10 Engine Block Coolant Hole Plug
11 Engine Block Heater
12 Engine Block Oil Gallery Plug
13 Engine Block Oil Gallery Plug
14 Camshaft Sensor Seal
15 Camshaft Position Sensor
16 Camshaft Position Sensor Bolt
17 Engine Block
18 Oil Pump Drive Seal
19 Oil Pump Drive
20 Oil Pump Drive Clamp
21 Valve Lifter
22 Valve Lifter Guide
23 Valve Lifter Guide Bolt
24 Oil Pump Drive Clamp Bolt
25 Piston Pin
26 Piston Oil Ring Rail
27 Piston Compression Lower Ring
28 Piston Compression Upper Ring
29 Piston
30 Connecting Rod
31 Connecting Rod Bearing
32 Connecting Rod Bearing Cap
33 Connecting Rod Bolt
34 Camshaft Rear Bearing Hole Plug
35 Engine Block Oil Gallery Plug
36 Engine Block Oil Gallery Plug
37 Transmission Locating Pin
38 Engine Oil Pressure Indicator Switch
39 Knock Sensor
40 Knock Sensor Bolt
41 Engine Block Coolant Drain Hole Plug
42 Engine Oil Filter Adapter Bolt
43 Engine Oil Filter Adapter
44 Engine Oil Filter
45 Engine Oil Filter Fitting
46 Engine Oil Filter Adapter Gasket
47 Engine Oil Filter Bypass Valve
48 Engine Oil Filter Bypass Hole Plug
49 Crankshaft Position Sensor Seal
50 Crankshaft Position Sensor
51 Crankshaft Position Sensor Stud
52 Engine Front Cover Location Pin
53 Engine Front Cover Gasket
54 Engine Front Cover
55 Engine Front Cover Bolt
56 Crankshaft Front Oil Seal
57 Crankshaft Balancer
58 Crankshaft Balancer Bolt
59 Engine Front Cover Bolt
60 Engine Front Cover Bolt
61 Engine Mount Insulator
62 Engine Mount Insulator Bolt
63 Engine Mount Insulator Bolt
64 Engine Mount Insulator Bolt
65 Water Pump Pulley Bolt
66 Water Pump Pulley
67 Water Pump Bolt
68 Water Pump
69 Water Pump Gasket
70 Timing Chain Dampener Bolt
71 Timing Chain Dampener
72 Crankshaft Sprocket
73 Camshaft Thrust Bearing Bolt

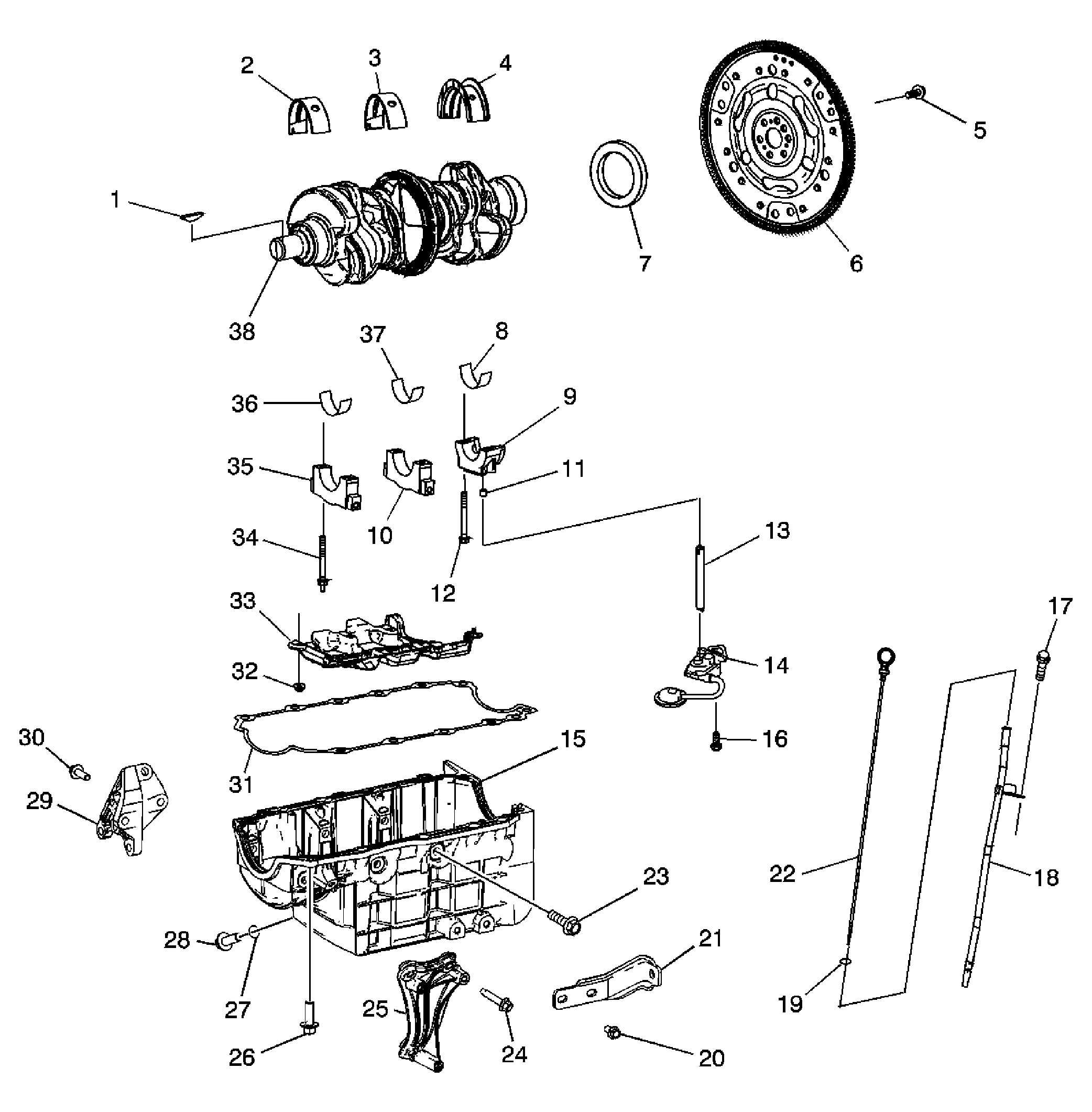

Fig 4: View Of Crankshaft & Components
GM1834803Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Crankshaft Balancer Key
2 Crankshaft Upper No. 1 and 4 Bearing
3 Crankshaft Upper No. 2 Bearing
4 Crankshaft Upper No. 3 Bearing
5 Flywheel Bolt
6 Flywheel
7 Crankshaft Rear Oil Seal
8 Crankshaft Lower No. 3 Bearing
9 Crankshaft No. 4 Bearing Cap
10 Crankshaft No. 2 and 3 Bearing Cap
11 Oil Pump Location Pin
12 Crankshaft Bearing Cap Bolt
13 Oil Pump Drive Shaft
14 Oil Pump
15 Oil Pan
16 Oil Pump Bolt
17 Oil Level Indicator Tube Bolt
18 Oil Level Indicator Tube
19 Oil Level Indicator Tube Seal
20 Oil Pan Support Bracket Bolt
21 Oil Pan Support Bracket
22 Oil Level Indicator
23 Oil Pan Bolt
24 A/C Compressor Mounting Bracket Bolt
25 A/C Compressor Mounting Bracket
26 Oil Pan Bolt
27 Oil Pan Drain Plug Seal
28 Oil Pan Drain Plug
29 Oil Pan Support Bracket
30 Oil Pan Support Bracket Bolt
31 Oil Pan Gasket
32 Crankshaft Oil Deflector Nut
33 Crankshaft Oil Deflector
34 Crankshaft Bearing Cap Stud
35 Crankshaft No. 1 Bearing Cap
36 Crankshaft Lower No. 1 and 4 Bearing
37 Crankshaft Lower No. 2 Bearing
38 Crankshaft
