Entertainment Component Views

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

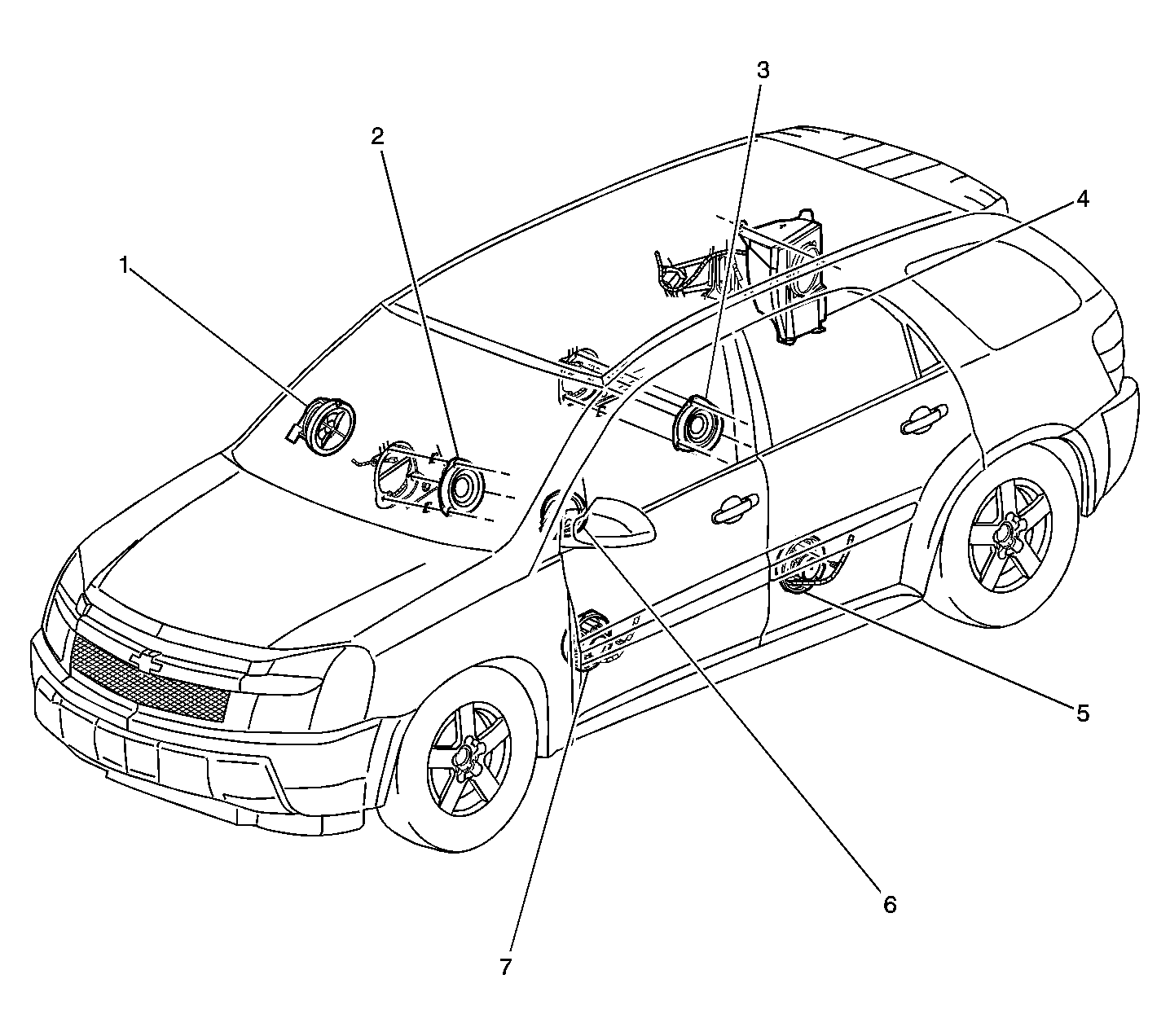

Fig 1: Entertainment Components - 1 of 2
GM1455155Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RF (Tweeter)
2 Speaker - RF
3 Speaker - RR
4 Speaker - Subwoofer (U65)
5 Speaker - LR
6 Speaker - LF (Tweeter)
7 Speaker - LF

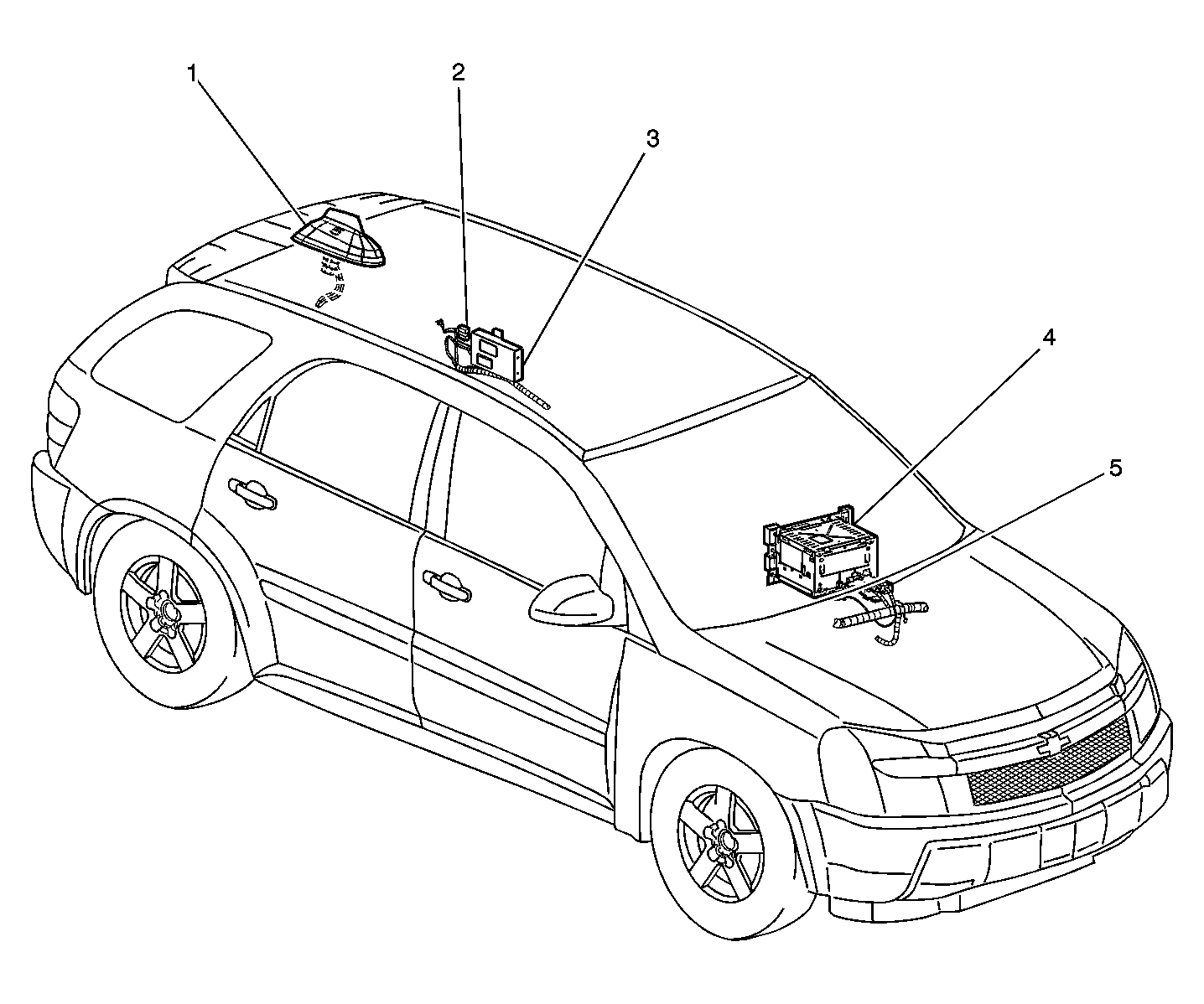

Fig 2: Entertainment Components - 2 of 2
GM1455154Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Radio Antenna (U2K)
2 Digital Radio Antenna Lead (U2K)
3 Digital Radio Receiver (U2K)
4 Radio
5 Radio C2

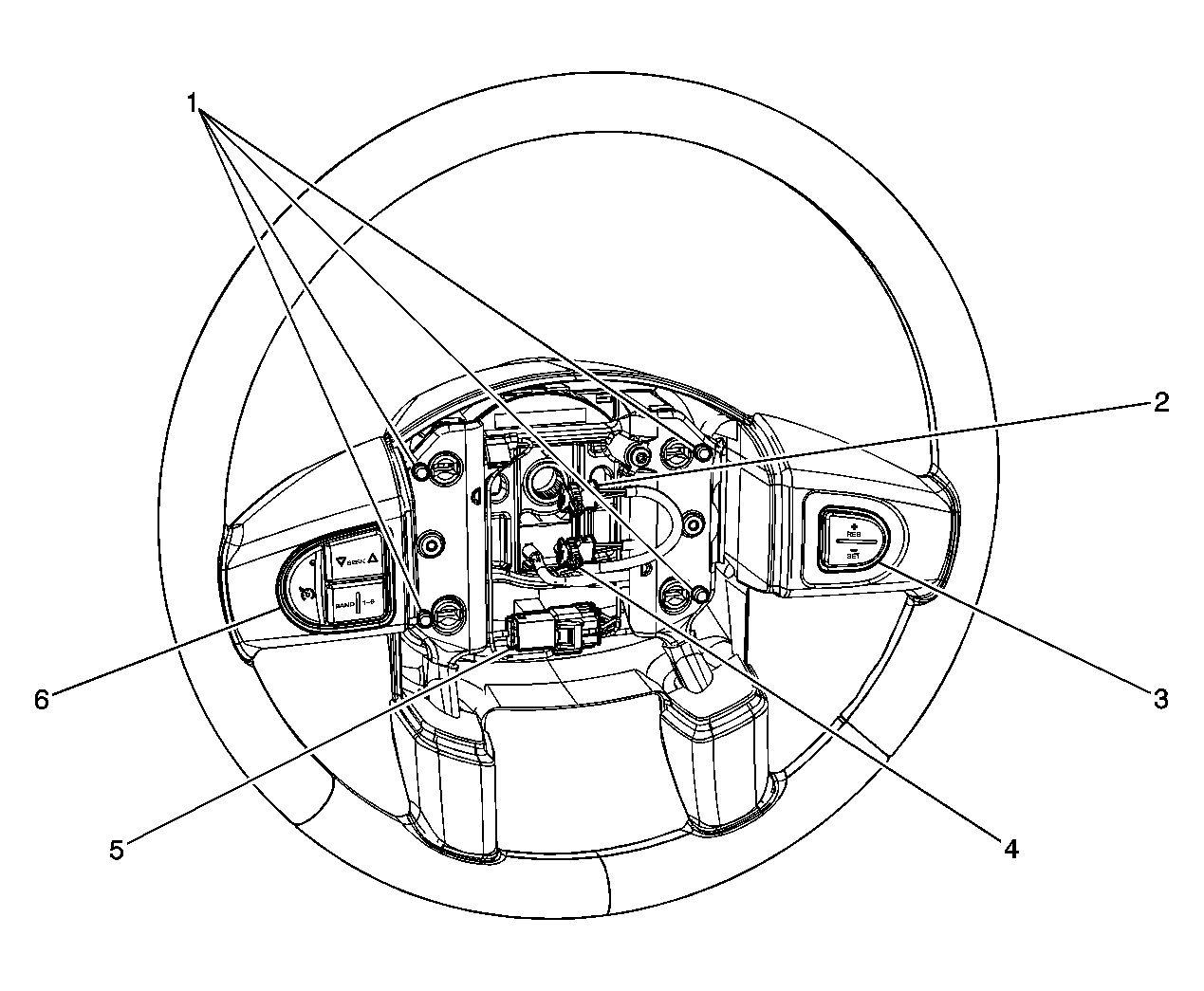

Fig 3: Steering Wheel Components View
GM1485895Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn Switch Contacts
2 Inflatable Restraint Steering Wheel Module C1
3 Steering Wheel Control Switch - Right (Chevrolet w/ UK3/K34 shown, Pontiac Similar)
4 Inflatable Restraint Steering Wheel Module C2
5 C277
6 Steering Wheel Control Switch - Left (Chevrolet w/ UK3/K34 shown, Pontiac Similar)
