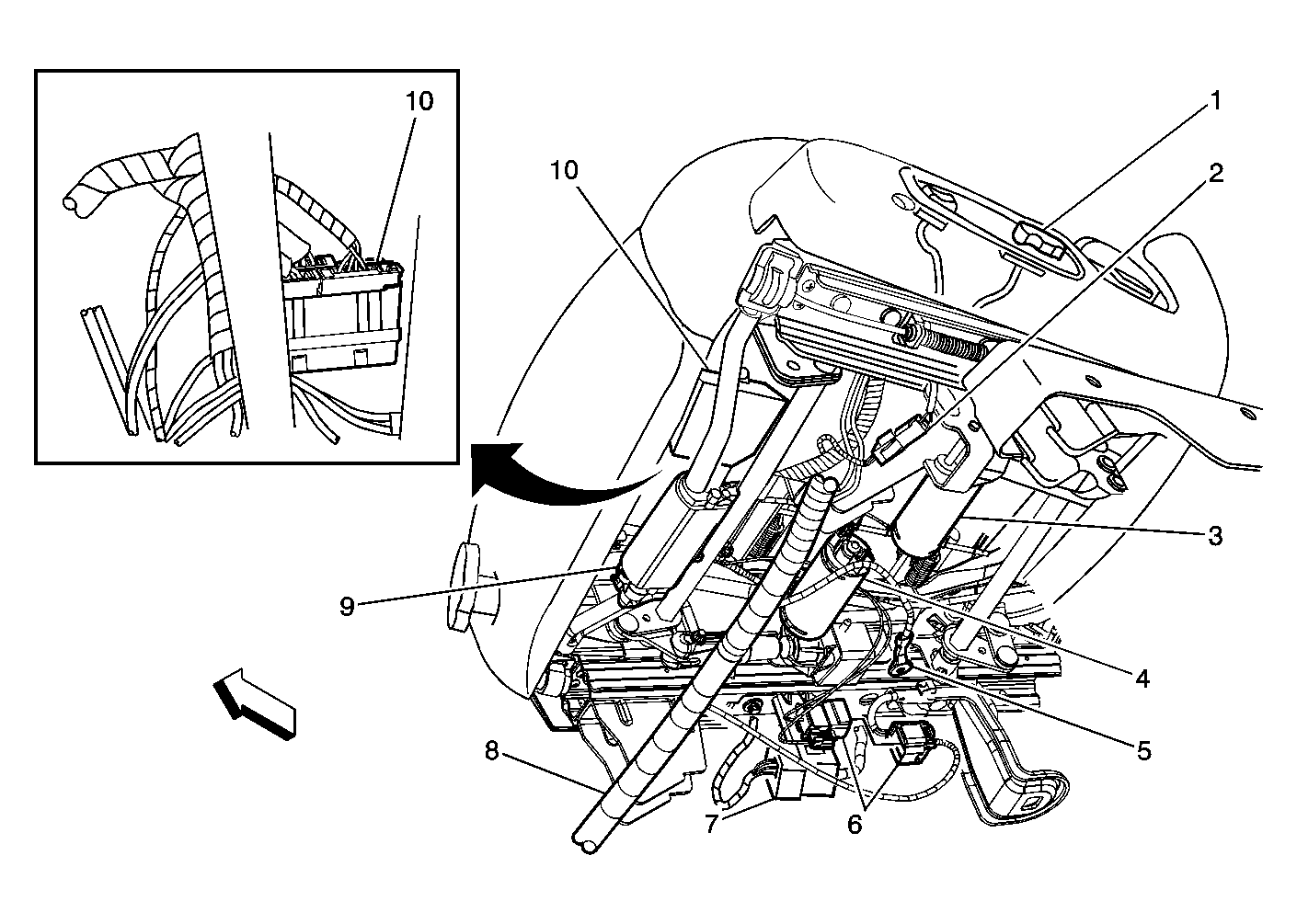

Power Seat Systems Component Views
WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Seat Adjuster Switch - Driver |
| 2 | Heated Seat Switch - Driver, Front Passenger Similar |
| 3 | Seat Front Vertical Motor - Driver |
| 4 | Seat Rear Vertical Motor - Driver |
| 5 | G301 |
| 6 | C310 |
| 7 | C305 - Driver Seat, C306 - Front Passenger Seat |
| 8 | Body Harness |
| 9 | Seat Horizontal Motor - Driver |
| 10 | Heated Seat Control Module - Driver, Front Passenger Similar |
