Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

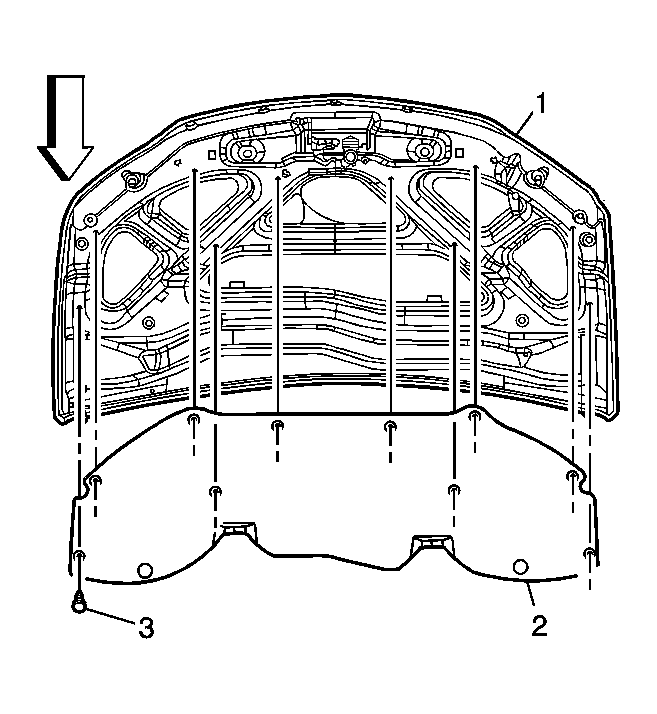

    Fig 1: View Of Hood, Insulator & Push-In Retainers
    GM1344371Courtesy of GENERAL MOTORS CORP.
  1. Align the hood insulator (2) to the hood (1).
  2. Install the hood insulator push-in retainers (3).
  3. Close the hood.
