Radio Speaker Amplifier Replacement
WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the right rear quarter lower trim panel. Refer to Rear Quarter Lower Trim Panel Replacement
. |
|

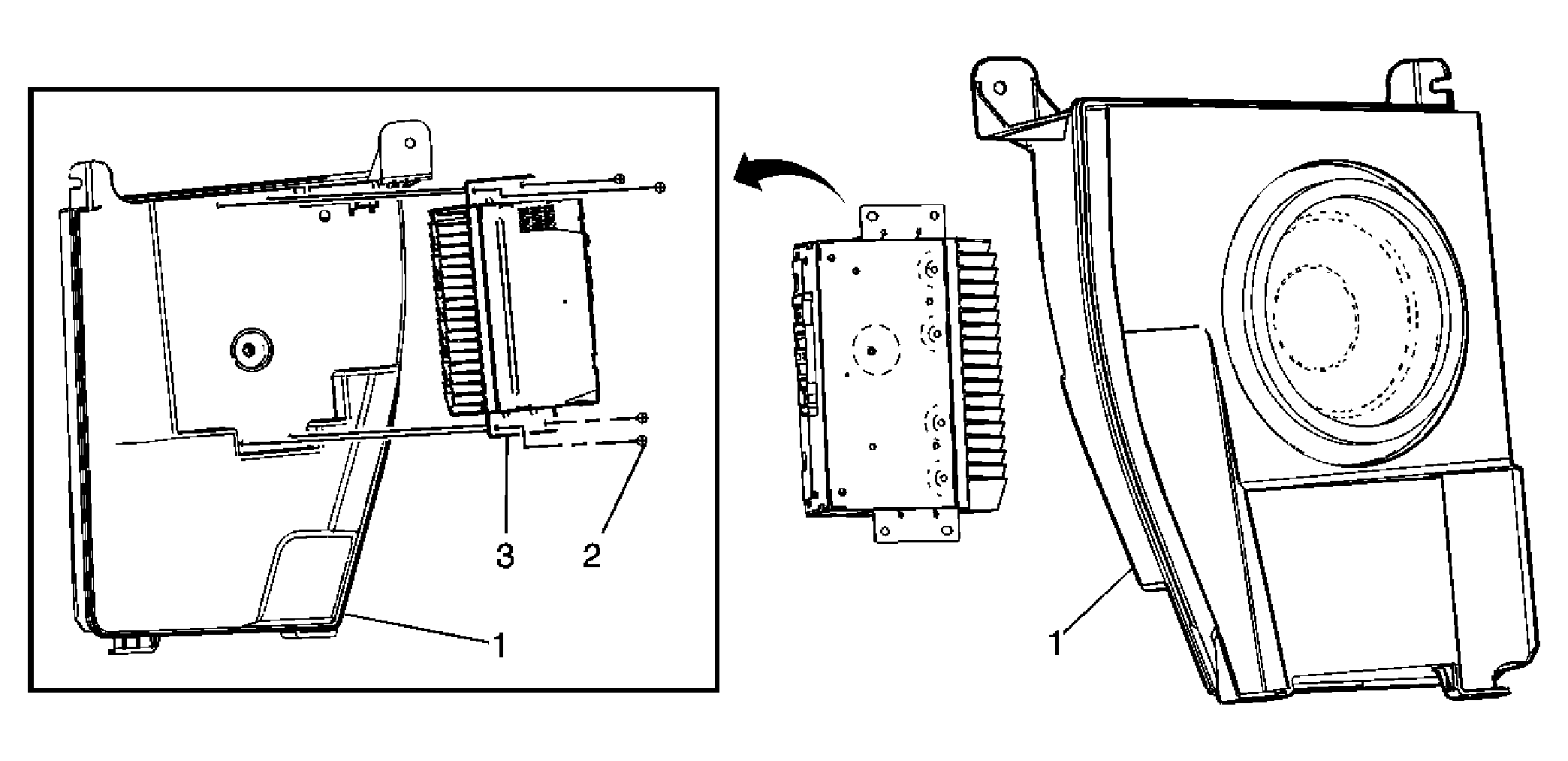

| 1 | Radio Rear Compartment Speaker Refer to Radio Rear Speaker Replacement . |
| 2 | Amplifier Screw (Qty: 4) Tighten: 3 N.m (26 lb in) |
| 3 | Amplifier Assembly Tip: Disconnect the electrical connector. |
