Body Control System Schematics

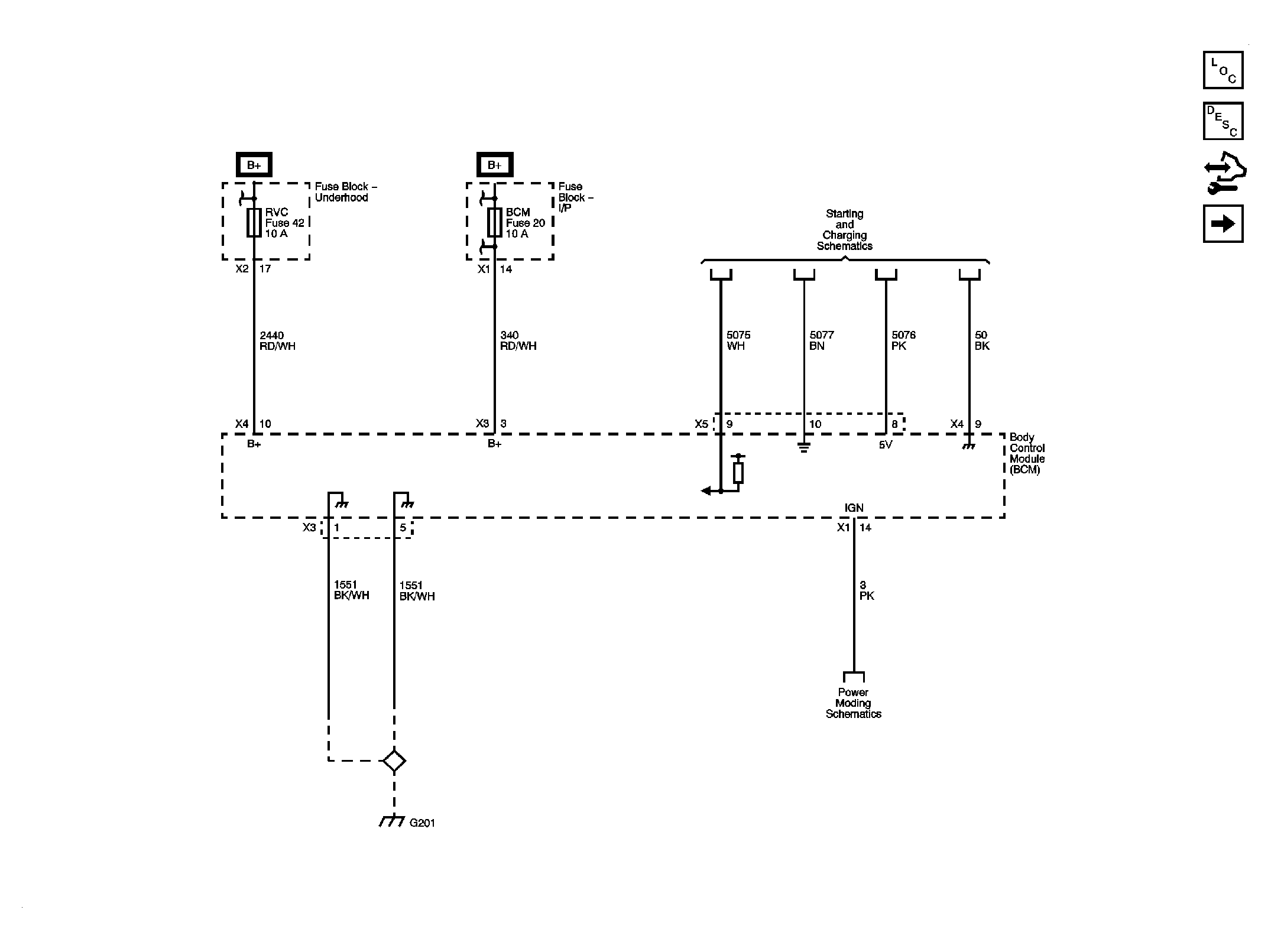

Fig 1: Power and Ground, Starting and Charging Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Exterior Lights, Radio, ABS, Automatic Transmission and Data Communications Schematic

Courtesy of GENERAL MOTORS CORP.

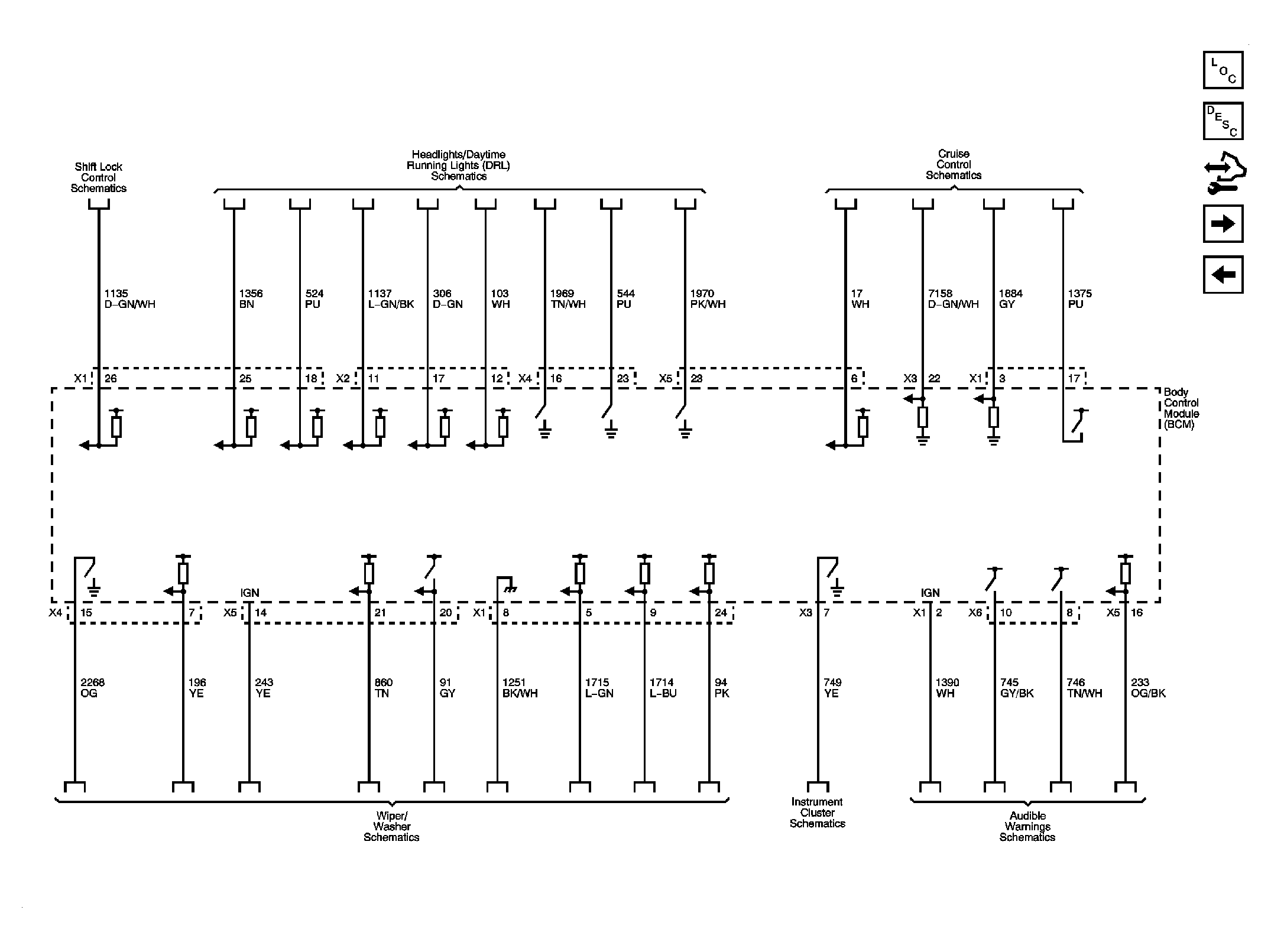

Fig 3: Shift Lock, Headlights, Cruise, Wipers, I/P and Audible Warnings Schematic

Courtesy of GENERAL MOTORS CORP.

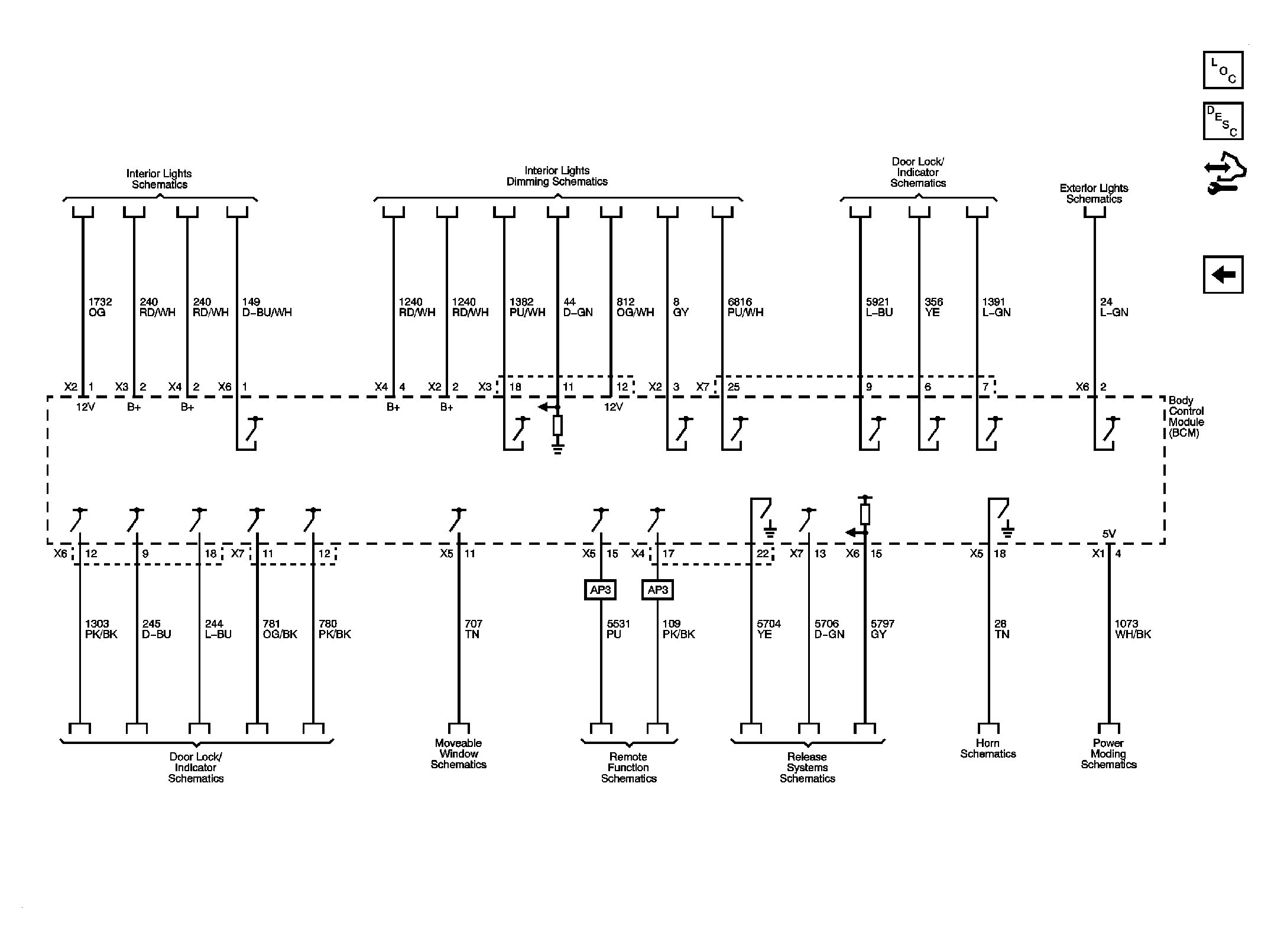

Fig 4: Interior Lights, Door Locks, Exterior Lights, Release Systems, Movable Windows, Remote Functions and Horns Schematic

Courtesy of GENERAL MOTORS CORP.
