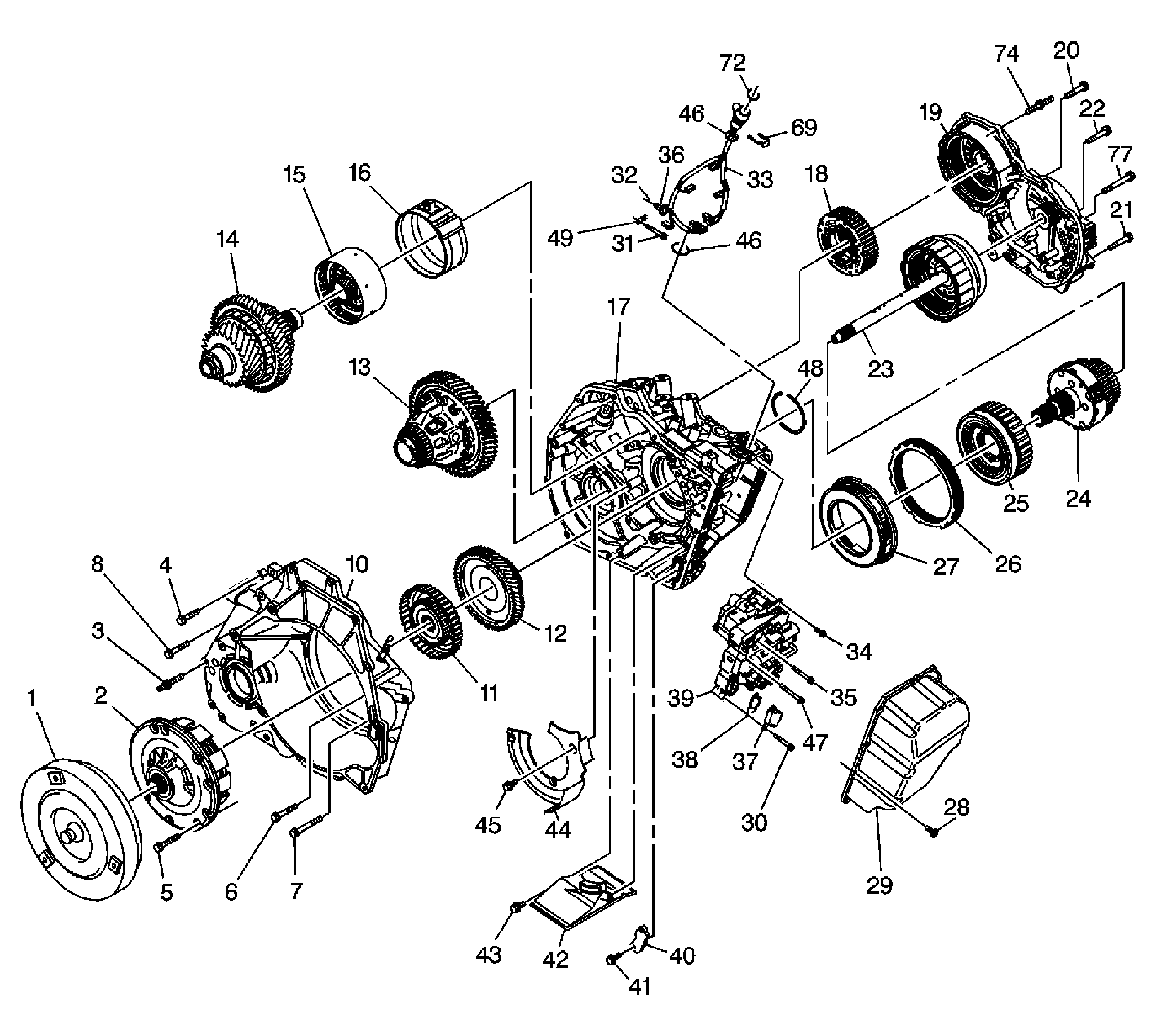

Disassembled Views
| Callout | Component Name |
|---|---|
| 1 | Torque Converter Assembly |
| 2 | Automatic Transmission Fluid Pump, 2nd Coast Clutch, 2nd Clutch Assembly |
| 3 | Torque Converter Housing Stud (M8 x 1.25 x 30) (1) |
| 4 | Torque Converter Housing Bolt/Screw (M8 x 1.25 x 30) (12) |
| 5 | Automatic Transmission Fluid Pump to Case Bolt - Coated (M8 x 1.25 x 28) (8) |
| 6 | Torque Converter Housing Bolt/Screw - Coated (M8 x 1.25 x 35) (2) |
| 7 | Torque Converter Housing Bolt/Screw (M8 x 1.25 x 45) |
| 8 | Torque Converter Housing Bolt/Screw -TORX, (M8 x 1.25 x 30) |
| 10 | Torque Converter Housing Assembly |
| 11 | 2nd Clutch Hub and 2nd Clutch Sprag Assembly |
| 12 | Output Gear Assembly |
| 13 | Front Differential Assembly - Model Dependent |
| 14 | Front Differential Transfer Drive Gear Assembly - with shaft |
| 15 | 4-5 Clutch Assembly |
| 16 | 3rd Gear Band Assembly |
| 17 | Automatic Transmission Case Assembly |

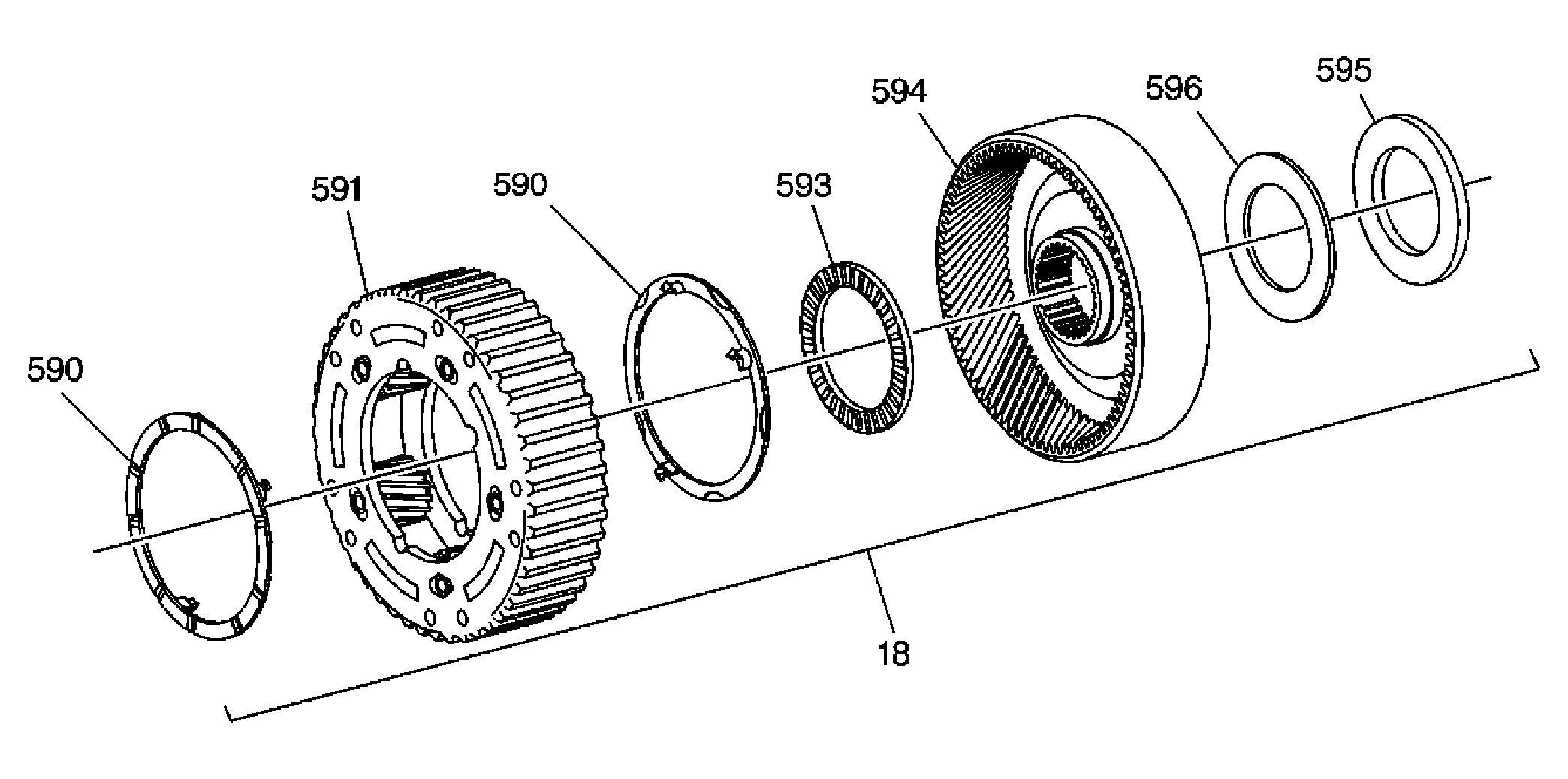

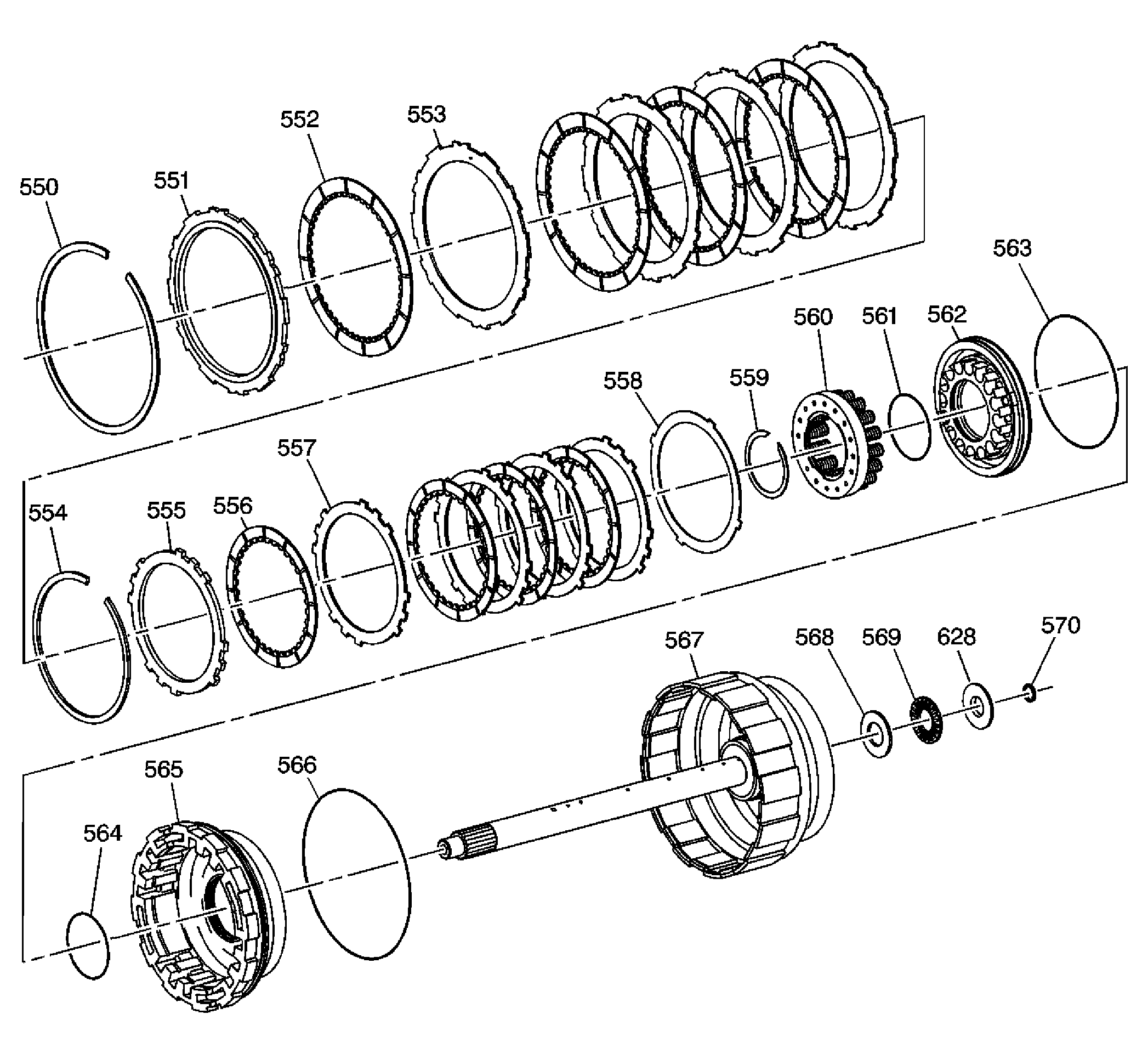

| 18 | 1-2 Reverse Carrier Gear Assembly |
| 19 | Automatic Transmission Case Cover and 1-2 Reverse Clutch Assembly |
| 20 | Transmission Case Cover Bolt/Screw (M8 x 1.25 x 30) (8) - Coated |
| 21 | Transmission Case Cover Bolt/Screw - Coated (M8 x 1.25 x 48) (2) |
| 22 | Transmission Case Cover Bolt/Screw (M8 x 1.25 x 45) (2) |
| 23 | Forward and Direct Clutch Assembly |
| 24 | Front Carrier Sun Gear Assembly |
| 25 | Front Internal Gear and Overrun Roller Clutch |
| 26 | Low and Reverse Clutch Plates - Fibers and Steels (B3) |
| 27 | Low and Reverse Clutch Piston Assembly |
| 28 | Control Valve Body Cover Bolt/Screw - TORX® (M8 x 1.25 x 15.5) (9) |
| 29 | Control Valve Body Cover |
| 30 | Control Valve Body Bolt/Screw (M6 x 1.0 x 50) (4) |
| 31 | Fluid Temperature Sensor Clip Bolt (M6 x 1.0 x 55) |
| 32 | Automatic Transmission Fluid Temperature Sensor O-ring Seal |
| 33 | Automatic Transmission Wiring Harness Assembly |
| 34 | Control Valve Body Bolt/Screw (M6 x 1.0 x 16) (2) |
| 35 | Control Valve Body Bolt/Screw (M6 x 1.0 x 28) (2) |
| 36 | Automatic Transmission Fluid Temperature Sensor |
| 37 | Control Valve Body Fluid Passage Cover |
| 38 | Control Valve Body Fluid Passage Cover Gasket |
| 39 | Automatic Transmission Control Valve Body Assembly |
| 40 | Automatic Transmission Case Fluid Passage Cover |
| 41 | Automatic Transmission Case Fluid Passage Cover Bolt/Screw (M6 x 1.0 x 14) (2) |
| 42 | Automatic Transmission Fluid Filter Assembly |
| 43 | Automatic Transmission Fluid Filter Bolt/Screw (M6 x 1.0 x 16.7) |
| 44 | Automatic Transmission Fluid Baffle |
| 45 | Transmission Fluid Baffle Bolt/Screw (M6 x 1.0 x 14.0) (3) |
| 46 | Automatic Transmission Wiring Connector O-ring Seal |
| 47 | Control Valve Body Bolt/Screw (M6 x 1.0 x 55) (3) |
| 48 | Output Gear Retaining Ring |
| 49 | Automatic Transmission Fluid Temperature Sensor Clip |
| 69 | Automatic Transmission Control Wiring Harness Connector Retainer |
| 72 | TCM Seal |
| 74 | Transmission Case Cover Double Stud (M8 x 1.25 x 30/M6 x 1.0 x 10) |
| 77 | Transmission Case Cover Bolt/Screw 1st design (M8 x 1.25 x 78)2nd design (M8 x 1.25 x 30) |

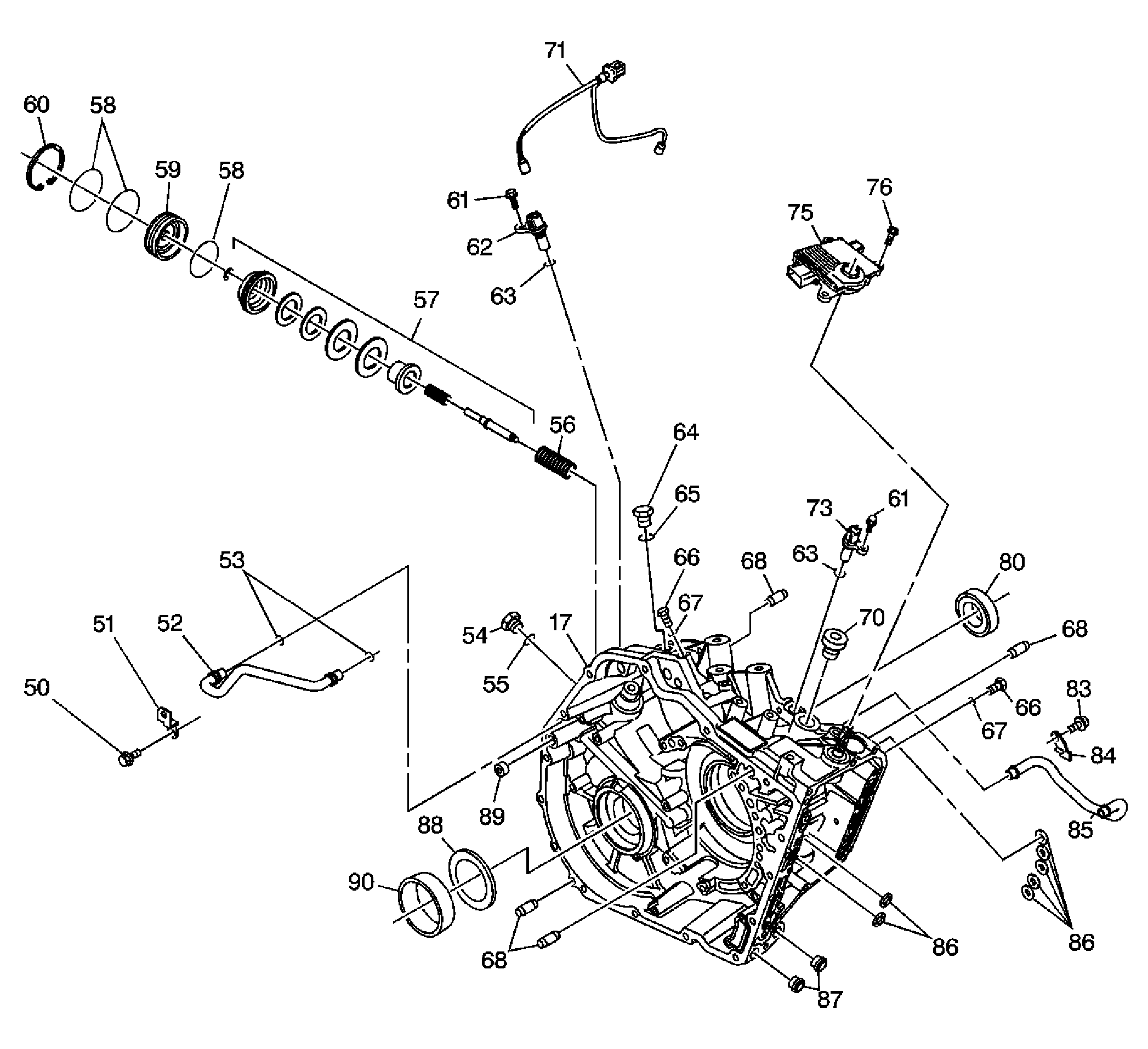

| Callout | Component Name |
|---|---|
| 17 | Automatic Transmission Case Assembly |
| 50 | 3rd Gear Band Apply Tube Retainer Bolt/Screw (M6 x 1.0 x 14) (2) |
| 51 | 3rd Gear Band Apply Tube Retainer |
| 52 | 3rd Gear Band Apply Tube |
| 53 | 3rd Gear Band Apply Tube O-ring Seal |
| 54 | Automatic Transmission Case Plug (M20 x 1.5 x 13.5) |
| 55 | Automatic Transmission Case Plug O-ring Seal |
| 56 | 3rd Gear Band Servo Spring |
| 57 | 3rd Gear Band Servo Piston Assembly - Selective |
| 58 | 3rd Gear Band Servo Piston and Cover O-ring Seal (3) |
| 58 | 3rd Gear Band Servo Piston and Cover O-ring Seal (3) |
| 59 | 3rd Gear Band Servo Cover |
| 60 | 3rd Gear Servo Cover Retaining Ring |
| 61 | Automatic Transmission Speed Sensor Bolt/Screw (M6 x 1.0 x 16) (2) |
| 62 | Automatic Transmission Output Speed Sensor Assembly |
| 63 | Automatic Transmission Speed Sensor O-ring Seal (2) |
| 64 | 3rd Gear Band Anchor Bolt/Screw (M20 x 1.5 x 21) |
| 65 | 3rd Gear Band Anchor Bolt O-ring Seal |
| 66 | Automatic Transmission Fluid Pressure Test Hole Plug (UNF 5/16-24-2A) (2) |
| 66 | Automatic Transmission Fluid Pressure Test Hole Plug (UNF 5/16-24-2A) (2) |
| 67 | Automatic Transmission Fluid Pressure Test Hole Plug O-ring Seal (2) |
| 68 | Transmission Case Locating Pin (4) |
| 68 | Transmission Case Locating Pin (4) |
| 68 | Transmission Case Locating Pin (4) |
| 70 | Lube Fill Plug |
| 71 | Automatic Transmission Input and Output Speed Sensor Harness |
| 73 | Automatic Transmission Input Speed Sensor Assembly |
| 75 | Transmission Control Module (TCM) |
| 76 | TCM Bolt (M6 x 1.0 x 16) |
| 80 | Front Wheel Drive Shaft Oil Seal |
| 83 | Lube Fluid Pipe Retainer Bolt/Screw (M6 x 1.0 x 19.5) |
| 84 | Lube Fluid Pipe Retainer |
| 85 | Lube Fluid Pipe |
| 86 | Automatic Transmission Case Fluid Passage Seal (7) |
| 86 | Automatic Transmission Case Fluid Passage Seal (7) |
| 87 | Transmission Fluid Cooler Pipe Fitting Seal (2) |
| 88 | Front Differential Side Gear Shim - Selective |
| 89 | Automatic Transmission Case Fluid Passage Seal |
| 90 | Front Differential Bearing Race |

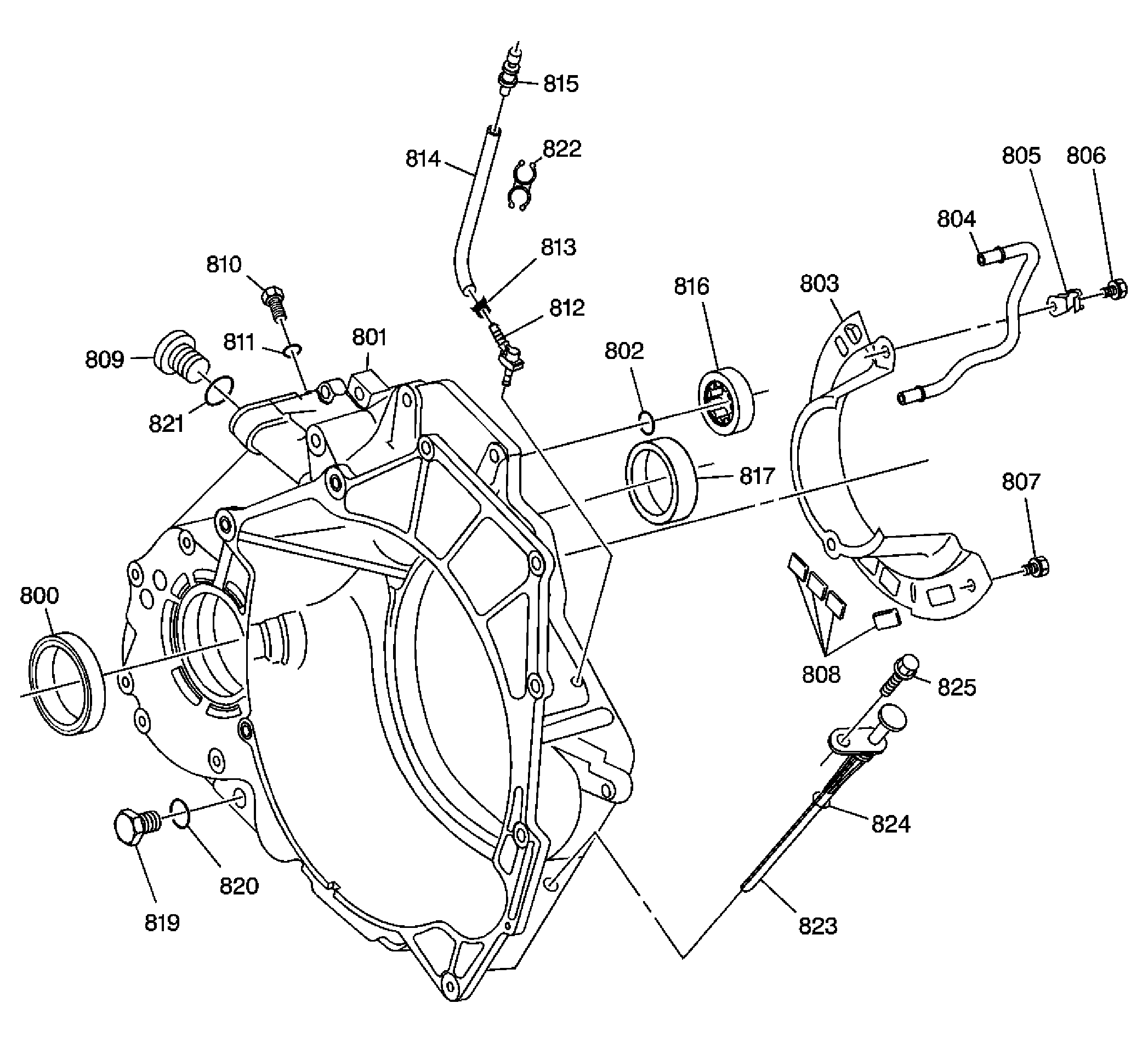

| Callout | Component Name |
|---|---|
| 800 | Front Differential Carrier Seal Assembly - AWD Only |
| 801 | Torque Converter Housing Assembly |
| 802 | Front Differential Transfer Drive Gear Front Lube O-ring Seal |
| 803 | Automatic Transmission Fluid Baffle |
| 804 | Lube Fluid Pipe |
| 805 | Lube Fluid Pipe Retainer |
| 806 | Lube Fluid Pipe Retainer Bolt/Screw (M6 x 1.0 x 14) |
| 807 | Transmission Fluid Baffle Bolt/Screw (M6 x 1.0 x 14) (3) |
| 808 | Transmission Chip Collector Magnet (4) |
| 809 | Automatic Transmission Case Plug (M18 x 1.5 x 10.5) |
| 810 | Automatic Transmission Case Plug (UNF 5/16-24-2A) |
| 811 | Automatic Transmission Case Plug O-ring Seal |
| 812 | Transmission Vent Pipe |
| 813 | Transmission Vent Hose Clip |
| 813 | Transmission Vent Hose Clip |
| 814 | Transmission Vent Hose |
| 815 | Automatic Transmission Vent Assembly |
| 816 | Front Differential Transfer Drive Gear Assembly Front Bearing Assembly |
| 817 | Front Differential Assembly Bearing Race |
| 819 | Transmission Fluid Drain Plug |
| 820 | Transmission Fluid Drain Plug Washer |
| 821 | Automatic Transmission Case Plug O-ring Seal |
| 822 | Transmission Vent Hose Retainer |
| 823 | Transmission Fluid Level Indicator Assembly |
| 824 | Transmission Fluid Level Indicator Seal |
| 825 | Transmission Fluid Level Indicator Bolt/Screw (M8 x 1.25 x 25) |

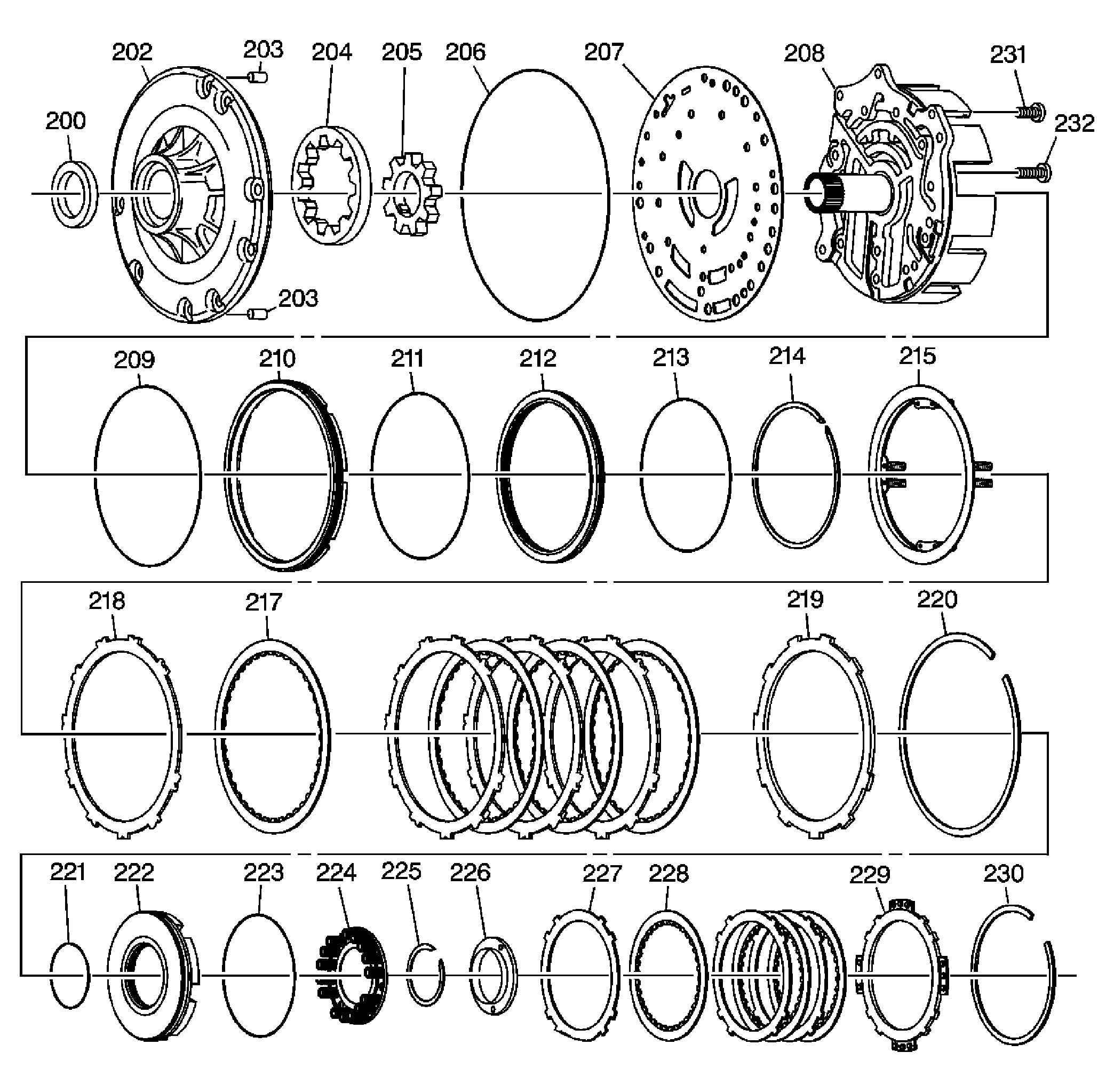

| Callout | Component Name |
|---|---|
| 200 | Automatic Transmission Fluid Pump Body Seal Assembly |
| 202 | Fluid Pump Body |
| 203 | Fluid Pump Body to Fluid Pump Stator Shaft Assembly Alignment Pin (2) |
| 203 | Fluid Pump Body to Fluid Pump Cover Assembly Alignment Pin (2) |
| 204 | Fluid Pump Driven Gear (Selective) |
| 205 | Fluid Pump Drive Gear (Selective) |
| 206 | Automatic Transmission Fluid Pump O-ring Seal |
| 207 | Fluid Pump Plate |
| 208 | Fluid Pump Cover and Stator Shaft Assembly |
| 209 | Second Clutch Piston Outer Seal |
| 210 | Second Clutch Piston |
| 211 | Second Clutch Piston Sleeve Outer Seal |
| 212 | Second Clutch Piston Sleeve |
| 213 | Second Clutch Piston Sleeve Inner Seal |
| 214 | Second Clutch Spring Retaining Ring |
| 215 | Second Clutch Spring Assembly |
| 217 | Second Clutch Plate Assembly - Fiber (4) |
| 218 | Second Clutch Plate - Steel (4) |
| 219 | Second Clutch Backing Plate - Steel (Selective) |
| 220 | Second Clutch Backing Plate Retaining Ring |
| 221 | Second Coast Clutch Piston Inner Seal |
| 222 | Second Coast Clutch Piston |
| 223 | Second Coast Clutch Piston Outer Seal |
| 224 | Second Coast Clutch Spring |
| 225 | Second Coast Clutch Spring Retaining Ring |
| 226 | Coast Clutch Hub Thrust Washer |
| 227 | Second Coast Clutch Plate - Steel (3) |
| 228 | Second Coast Clutch Plate Assembly - Fiber (3) |
| 229 | Second Coast Clutch Backing Plate |
| 230 | Second Coast Clutch Backing Plate Retaining Ring |
| 231 | Automatic Transmission Fluid Pump Cover Bolt/Screw (M6 x 1.0 x 14.5) (13) |
| 232 | Automatic Transmission Fluid Pump Cover Bolt/Screw (M5 x 0.8 x 17) |

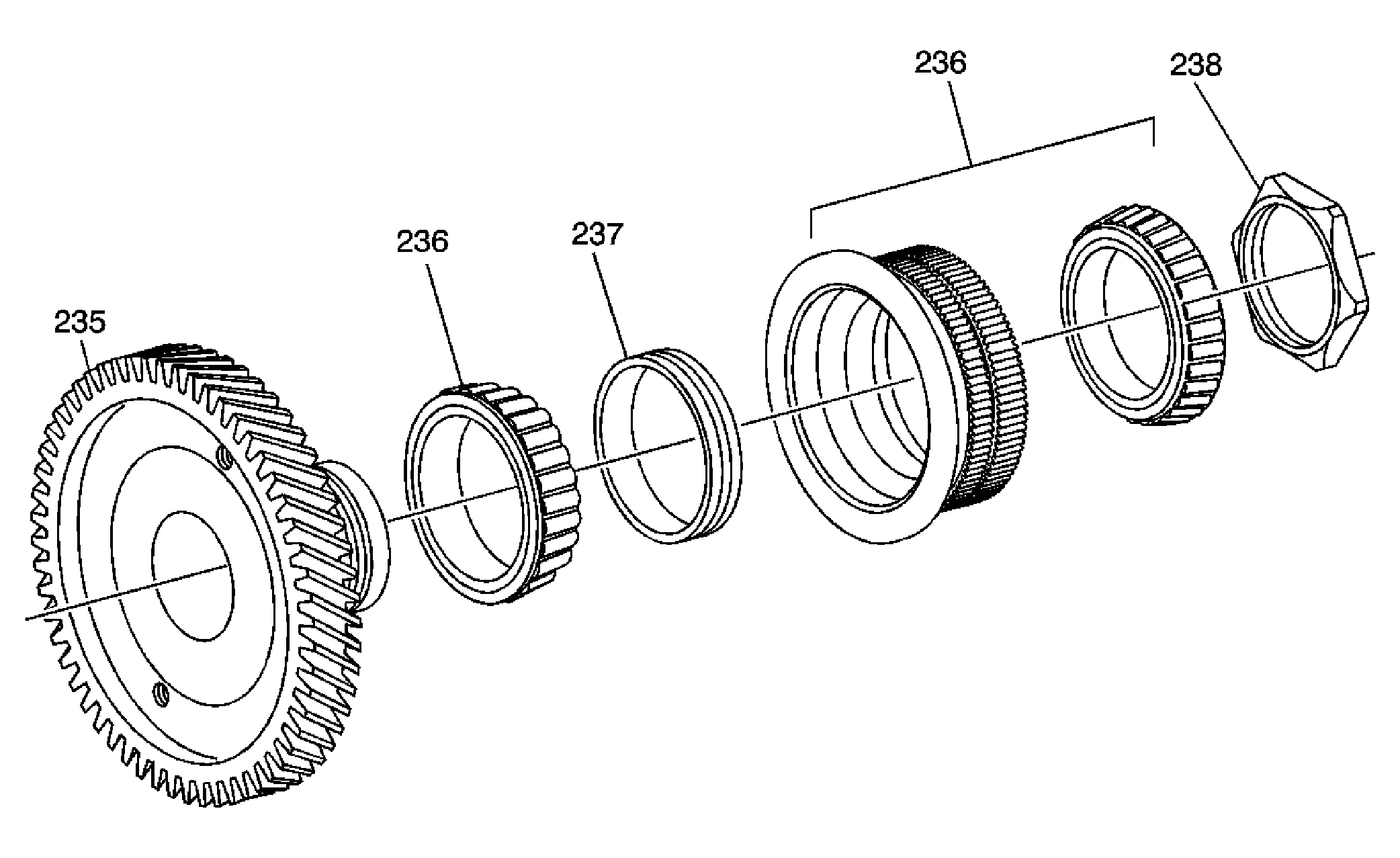

| Callout | Component Name |
|---|---|
| 235 | Output Gear |
| 236 | Output Gear Bearing Assembly |
| 237 | Output Gear Bearing Assembly Spacer |
| 238 | Output Gear Bearing Assembly Lock Nut |

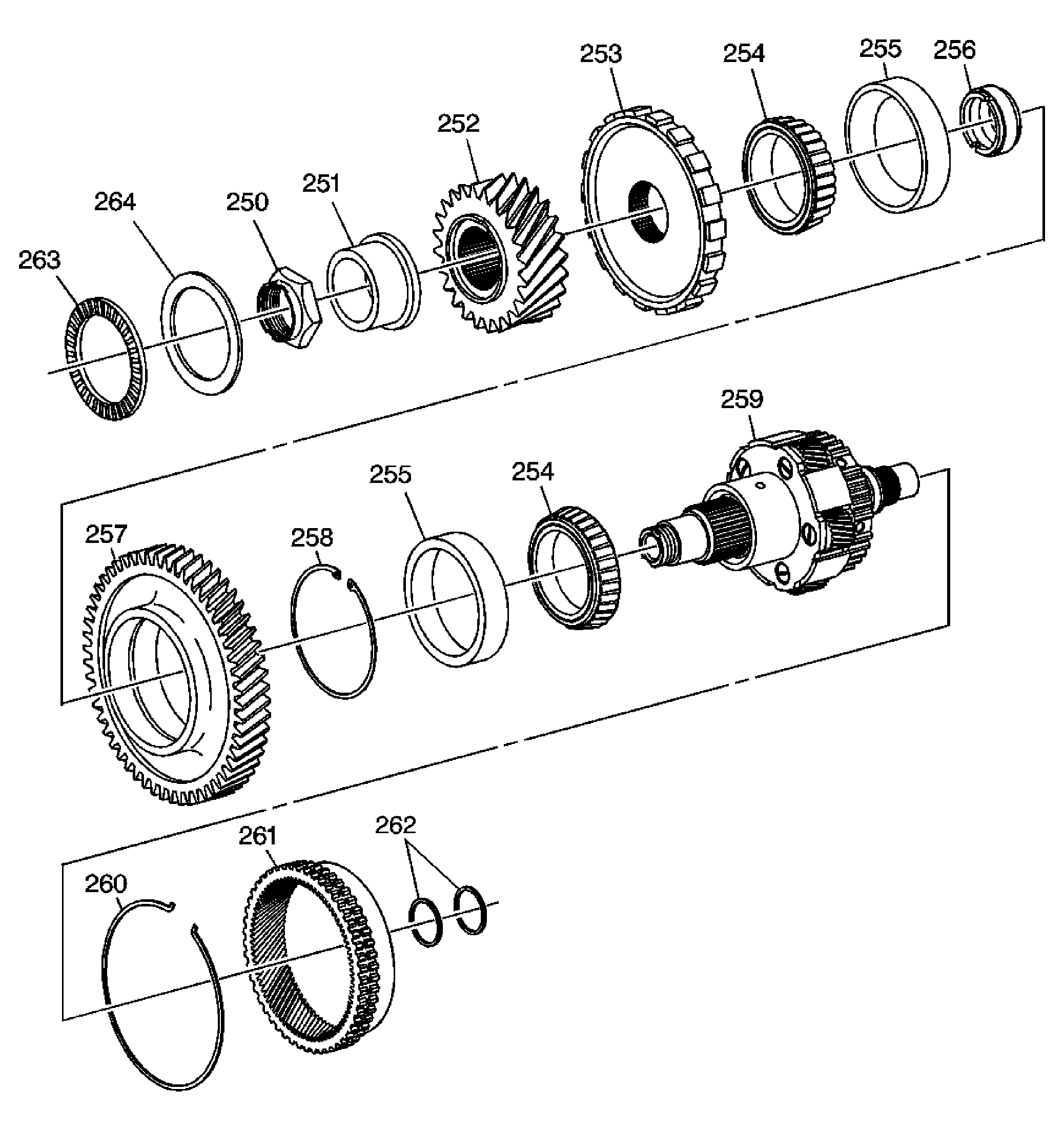

| Callout | Component Name |
|---|---|
| 250 | Front Differential Transfer Drive Gear Lock Nut |
| 251 | Front Differential Transfer Drive Gear Bearing Assembly Inner Race |
| 252 | Front Differential Transfer Drive Gear Drive Pinion |
| 253 | Front Differential Transfer Drive Gear Parking Lock Gear |
| 254 | Front Differential Transfer Drive Gear Bearing Assembly (2) |
| 254 | Front Differential Transfer Drive Gear Bearing Assembly (2) |
| 255 | Front Differential Transfer Drive Gear Bearing Race (2) |
| 255 | Front Differential Transfer Drive Gear Bearing Race (2) |
| 256 | Front Differential Transfer Drive Gear Counter Gear Bearing Spacer |
| 257 | Front Differential Transfer Drive Gear Counter Driven Gear |
| 258 | Front Differential Transfer Drive Gear Counter Driven Gear Retaining Ring |
| 259 | Front Differential Transfer Drive Gear Carrier Assembly |
| 260 | Front Differential Transfer Drive Gear Ring Gear Retaining Ring |
| 261 | Front Differential Transfer Drive Gear Ring Gear |
| 262 | 4-5 Clutch Housing Fluid Seal Ring (2) |
| 263 | Front Differential Transfer Drive Gear Thrust Bearing Assembly |
| 264 | Front Differential Transfer Drive Gear Thrust Bearing Washer - Selective |

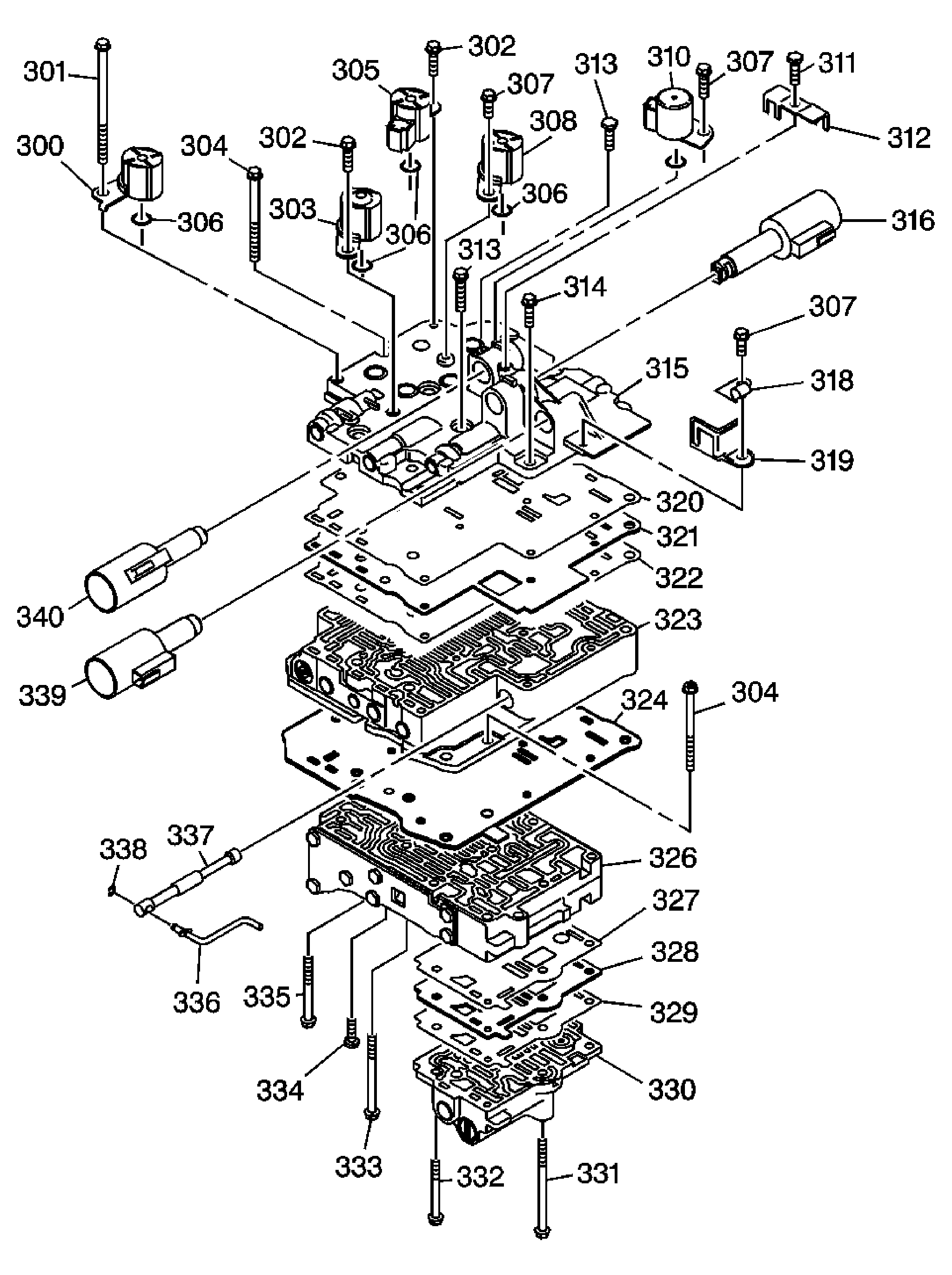

| Callout | Component Name |
|---|---|
| 300 | 1-2, 2-3, Reverse Shift Solenoid Valve Assembly (S3) - Dark Gray |
| 301 | Control Valve Body Bolt/Screw (M5 x 0.8 x 62) |
| 302 | Control Valve Body Bolt/Screw (M5 x 0.8 x 28) (2) |
| 302 | Control Valve Body Bolt/Screw (M5 x 0.8 x 28) (2) |
| 302 | Control Valve Body Bolt/Screw (M5 x 0.8 x 28) (2) |
| 303 | 3-4, 4-5 Shift Solenoid Valve Assembly (S4) - Blue |
| 304 | Control Valve Body Bolt/Screw (M5 x 0.8 x 50) (2) |
| 304 | Control Valve Body Bolt/Screw (M5 x 0.8 x 50) (2) |
| 305 | Reverse Shift Solenoid Valve Assembly (S5) - Brown |
| 306 | Shift Solenoid Valve O-ring Seal (5) |
| 306 | Shift Solenoid Valve O-ring Seal (5) |
| 306 | Shift Solenoid Valve O-ring Seal (5) |
| 307 | Control Valve Body Bolt/Screw (M5 x 0.8 x 10) (3) |
| 307 | Control Valve Body Bolt/Screw (M5 x 0.8 x 10) (3) |
| 307 | Control Valve Body Bolt/Screw (M5 x 0.8 x 10) (3) |
| 308 | 2-3, 3-4 Shift Solenoid Valve Assembly (S2) - Black |
| 310 | Reverse, 1st Shift Solenoid Valve Assembly (S1) - Black |
| 311 | Control Valve Body Bolt/Screw (M5 x 0.8 x 13) |
| 312 | Control Valve Body Solenoid Valve Retainer |
| 313 | Control Valve Body Bolt/Screw (M5 x 0.8 x 20) (5) |
| 313 | Control Valve Body Bolt/Screw (M5 x 0.8 x 20) (5) |
| 314 | Control Valve Body Bolt/Screw (M5 x 0.8 x 16) (2) |
| 315 | Front Control Valve Body Assembly |
| 316 | Line Pressure Control Solenoid Valve Assembly (SLT) - Blue |
| 318 | Automatic Transmission Wiring Harness Clip |
| 319 | TCC Lock Up Control Solenoid Valve Retainer (SLU) |
| 320 | Front Control Valve Body to Front Control Valve Body Spacer Plate Gasket |
| 321 | Front Control Valve Body Spacer Plate |
| 322 | Front Control Valve Body Spacer Plate to Middle Control Valve Body Gasket |
| 323 | Middle Control Valve Body Assembly |
| 324 | Middle Control Valve Body Assembly to Rear Control Valve Body Spacer Plate and Gasket Assembly |
| 326 | Rear Control Valve Body Assembly |
| 327 | Rear Control Valve Body to Rear Control Valve Body Spacer Plate Gasket |
| 328 | Rear Control Valve Body Assembly Spacer Plate |
| 329 | Rear Control Valve Body Assembly Spacer Plate to No. 2 Rear Control Valve Body Assembly Gasket |
| 330 | No. 2 Rear Control Valve Body Assembly |
| 331 | Control Valve Body Bolt/Screw (M5 x 0.8 x 76) |
| 332 | Control Valve Body Bolt/Screw (M5 x 0.8 x 49.5) (4) |
| 333 | Control Valve Body Bolt/Screw (M5 x 0.8 x 40) |
| 334 | Control Valve Body Assembly Pressure Test Hole Bolt/Screw Pressure Tap (M6 x 1.0 x 12) (1) |
| 335 | Control Valve Body Bolt/Screw (M5 x 0.8 x 35) (2) |
| 336 | Manual Valve Link |
| 337 | Manual Valve |
| 338 | Manual Valve Link Retainer |
| 339 | TCC Lock Up Pressure Control Solenoid Valve Assembly (SLU) - Black |
| 340 | Shift Pressure Control Solenoid Valve Assembly (SLS) - Green |
| Callout | Component Name |
|---|---|

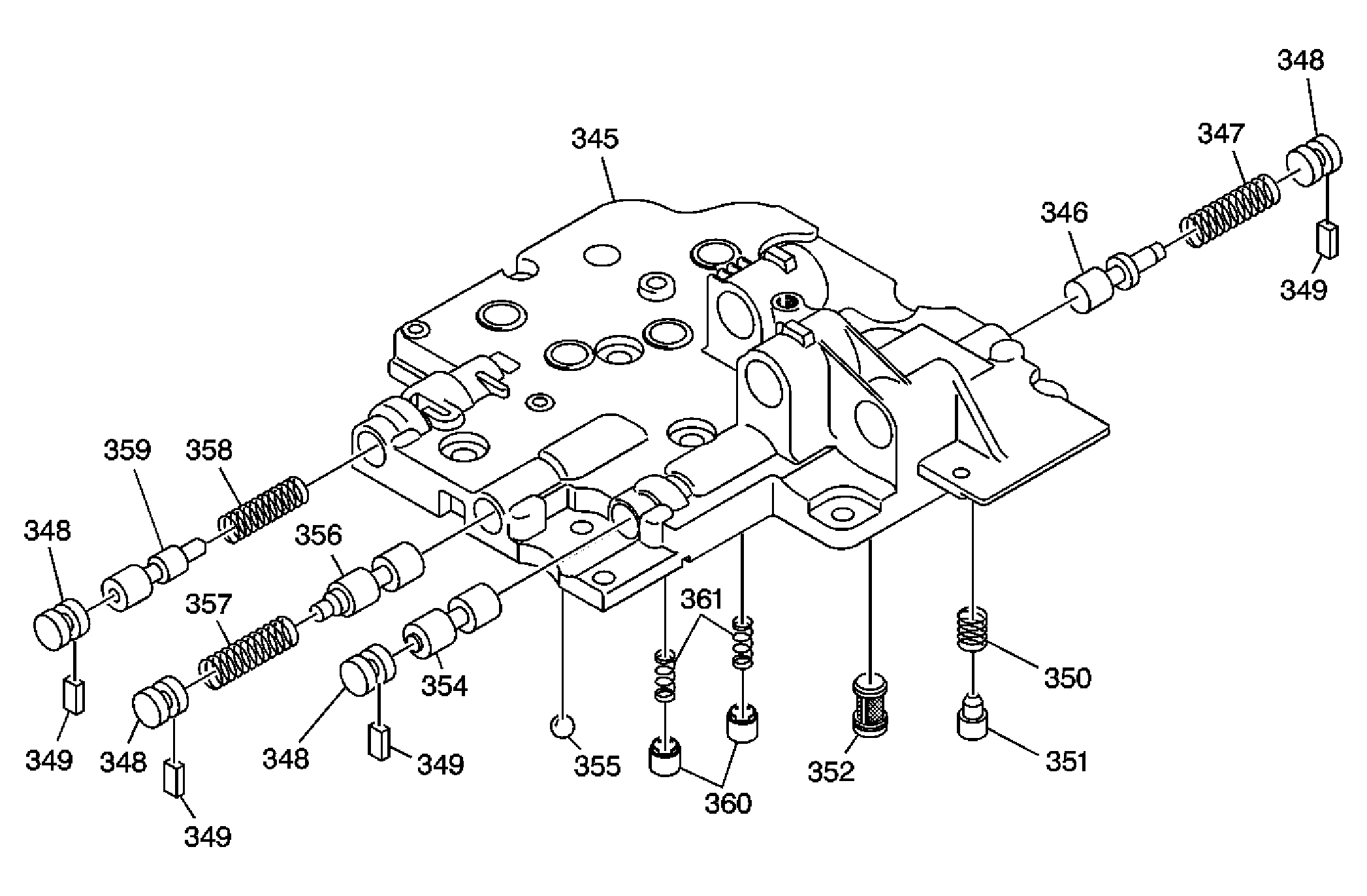

| 345 | Front Control Valve Body |
| 346 | Solenoid Modulator Valve |
| 347 | Solenoid Modulator Valve Spring - Yellow |
| 348 | Solenoid Modulator Valve Bore Plug (4) |
| 348 | Solenoid Modulator Valve Bore Plug (4) |
| 348 | Solenoid Modulator Valve Bore Plug (4) |
| 348 | Solenoid Modulator Valve Bore Plug (4) |
| 349 | Sleeve/Bore Plug Retainer (3.2 x 5 x 10) (4) |
| 349 | Sleeve/Bore Plug Retainer (3.2 x 5 x 10) (4) |
| 349 | Sleeve/Bore Plug Retainer (3.2 x 5 x 10) (4) |
| 349 | Sleeve/Bore Plug Retainer (3.2 x 5 x 10) (4) |
| 350 | Pressure Relief Valve Spring - Natural Color |
| 351 | Pressure Relief Valve |
| 352 | Fluid Strainer |
| 354 | Forward Clutch (C1) Control Valve |
| 355 | Ball Check Valve |
| 356 | Neutral Relay Valve |
| 357 | Neutral Relay Valve Spring - Light Blue |
| 358 | 2nd Coast Clutch (B1) Control Valve Spring - Blue |
| 359 | 2nd Coast Clutch (B1) Control Valve |
| 360 | Check Valve (2) |
| 361 | Check Valve Spring (2) |
| Callout | Component Name |
|---|---|
| 353 | Accumulator Check Valve Assembly (6) |
| 353 | Accumulator Check Valve Assembly (7) |
| 362 | Sleeve/Bore Plug Retainer (3.2 x 5 x 12.5) (7) |
| 362 | Sleeve/Bore Plug Retainer (3.2 x 5 x 12.5) (7) |
| 362 | Sleeve/Bore Plug Retainer (3.2 x 5 x 12.5) (7) |
| 362 | Sleeve/Bore Plug Retainer (3.2 x 5 x 12.5) (7) |
| 362 | Sleeve/Bore Plug Retainer (3.2 x 5 x 12.5) (7) |
| 362 | Sleeve/Bore Plug Retainer (3.2 x 5 x 12.5) (7) |
| 362 | Sleeve/Bore Plug Retainer (3.2 x 5 x 12.5) (7) |

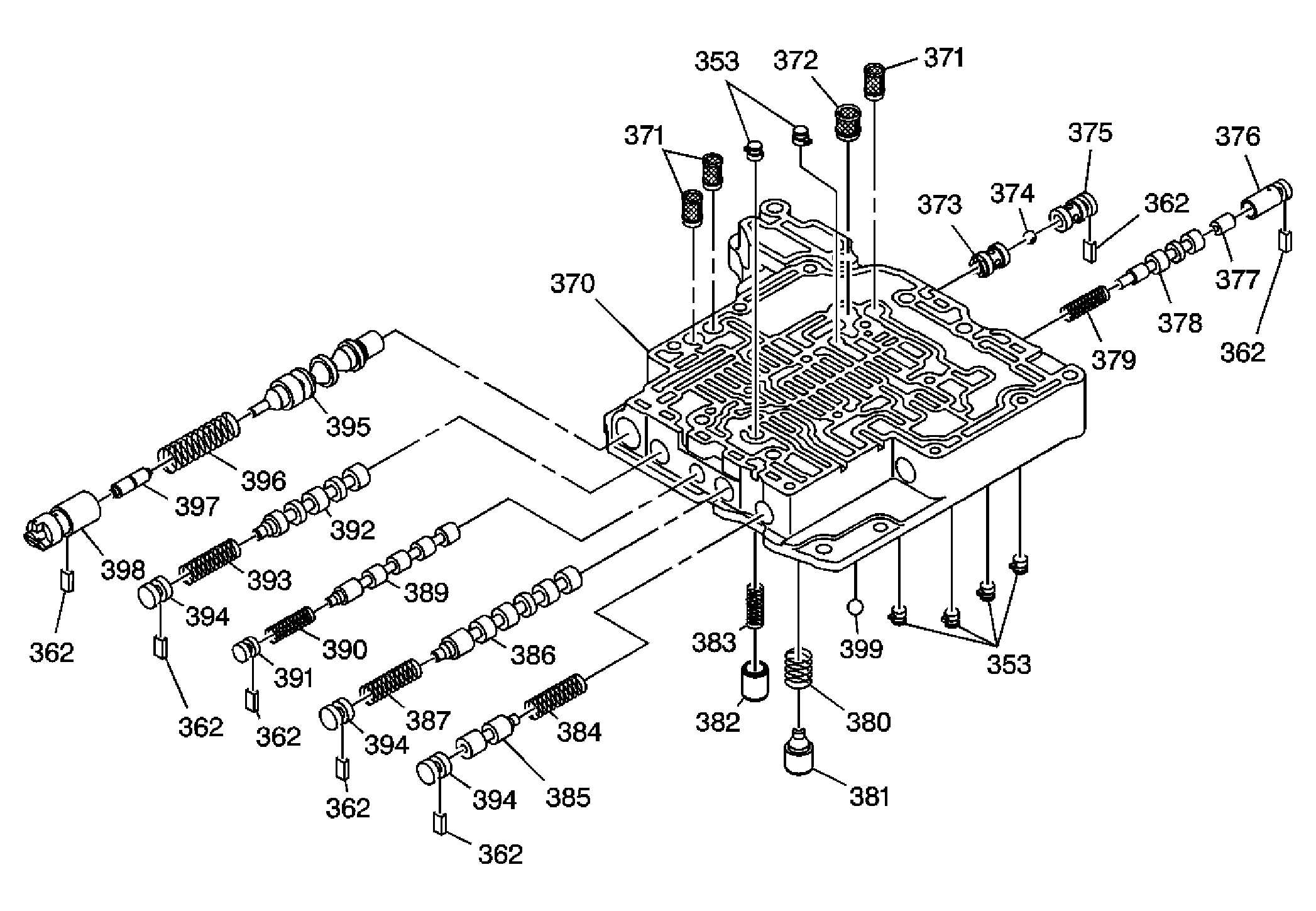

| 370 | Middle Control Valve Body |
| 371 | Fluid Strainer (3) |
| 371 | Fluid Strainer (3) |
| 372 | Fluid Strainer |
| 373 | Reverse Shift Ball Check Valve Bushing - Inner |
| 374 | Reverse Shift Ball Check Valve |
| 375 | Reverse Shift Ball Check Valve Bushing - Outer |
| 376 | Solenoid Relay Valve Sleeve |
| 377 | Solenoid Relay Valve Plunger |
| 378 | Solenoid Relay Valve |
| 379 | Solenoid Relay Valve Spring - Orange |
| 380 | Cooler By-Pass Valve Spring - Natural Color |
| 381 | Cooler By-Pass Valve |
| 382 | TCC Check Valve |
| 383 | TCC Check Valve Spring - Yellow |
| 384 | 3rd Gear Band (B4) Release Valve Spring - Blue |
| 385 | 3rd Gear Band (B4) Release Valve |
| 386 | U1 Shift Valve |
| 387 | U1 Shift Valve Spring - Light Green |
| 389 | M1 Shift Valve |
| 390 | M1 Shift Valve Spring - Light Blue |
| 391 | M1 Shift Valve Bore Plug |
| 392 | U2 Shift Valve |
| 393 | U2 Shift Valve Spring - Light Green |
| 394 | U2 Shift Valve Bore Plug (3) |
| 394 | U2 Shift Valve Bore Plug (3) |
| 394 | U2 Shift Valve Bore Plug (3) |
| 395 | Primary Regulator Valve |
| 396 | Primary Regulator Valve Spring - Purple |
| 397 | Primary Regulator Valve Plunger |
| 398 | Primary Regulator Valve Sleeve |
| 399 | Forward Clutch Check Ball |
| Callout | Component Name |
|---|---|

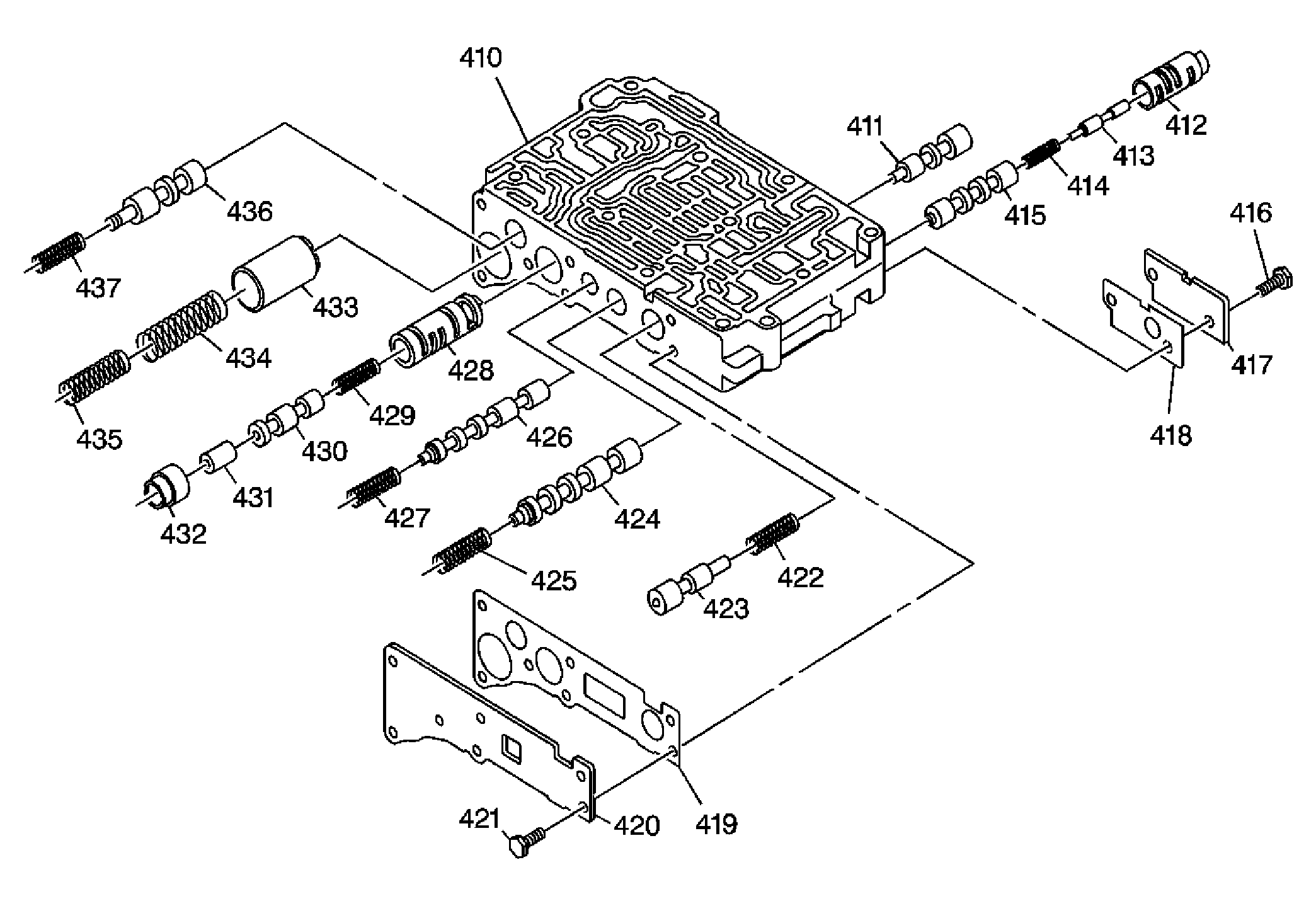

| 410 | Rear Control Valve Body |
| 411 | 1-2 Reverse Clutch (B5) Control Valve |
| 412 | Lock Up Relay Control Valve Sleeve |
| 413 | Lock Up Relay Control Valve Plunger |
| 414 | Lock Up Relay Valve Spring - Red |
| 415 | Lock Up Relay Valve |
| 416 | Rear Valve Body Cover Plate Bolt - Hexagon (M5 x 0.8 x 13) (2) |
| 417 | Rear Valve Body Cover Plate |
| 418 | Rear Valve Body Cover Plate Gasket |
| 419 | Rear Valve Body Cover Plate Gasket |
| 420 | Rear Valve Body Cover Plate |
| 421 | Rear Valve Body Cover Plate Bolt - Hexagon (M5 x 0.8 x 13) (7) |
| 422 | 3rd Gear Band (B4) Control Valve Spring - Orange |
| 423 | 3rd Gear Band (B4) Control Valve |
| 424 | Shift Pressure Relay Valve |
| 425 | Shift Pressure Relay Valve Spring - Light Green |
| 426 | M2 Shift Valve |
| 427 | M2 Shift Valve Spring - Light Blue |
| 428 | Shift Pressure Control Valve Sleeve |
| 429 | Shift Pressure Control Valve Spring - White |
| 430 | Shift Pressure Control Valve |
| 431 | Shift Pressure Control Valve Plunger |
| 432 | Shift Pressure Control Valve Plunger Sleeve |
| 433 | Line Pressure Control (SLT) Accumulator Piston |
| 434 | Line Pressure Control (SLT) Accumulator Piston Spring - Outer - Orange |
| 435 | Line Pressure Control (SLT) Accumulator Piston Spring - Inner - Orange |
| 436 | Secondary Regulator Valve |
| 437 | Secondary Regulator Valve Spring - Natural Color |
| Callout | Component Name |
|---|---|
| 353 | Accumulator Check Valve Assembly (2) |
| 353 | Accumulator Check Valve Assembly (2) |

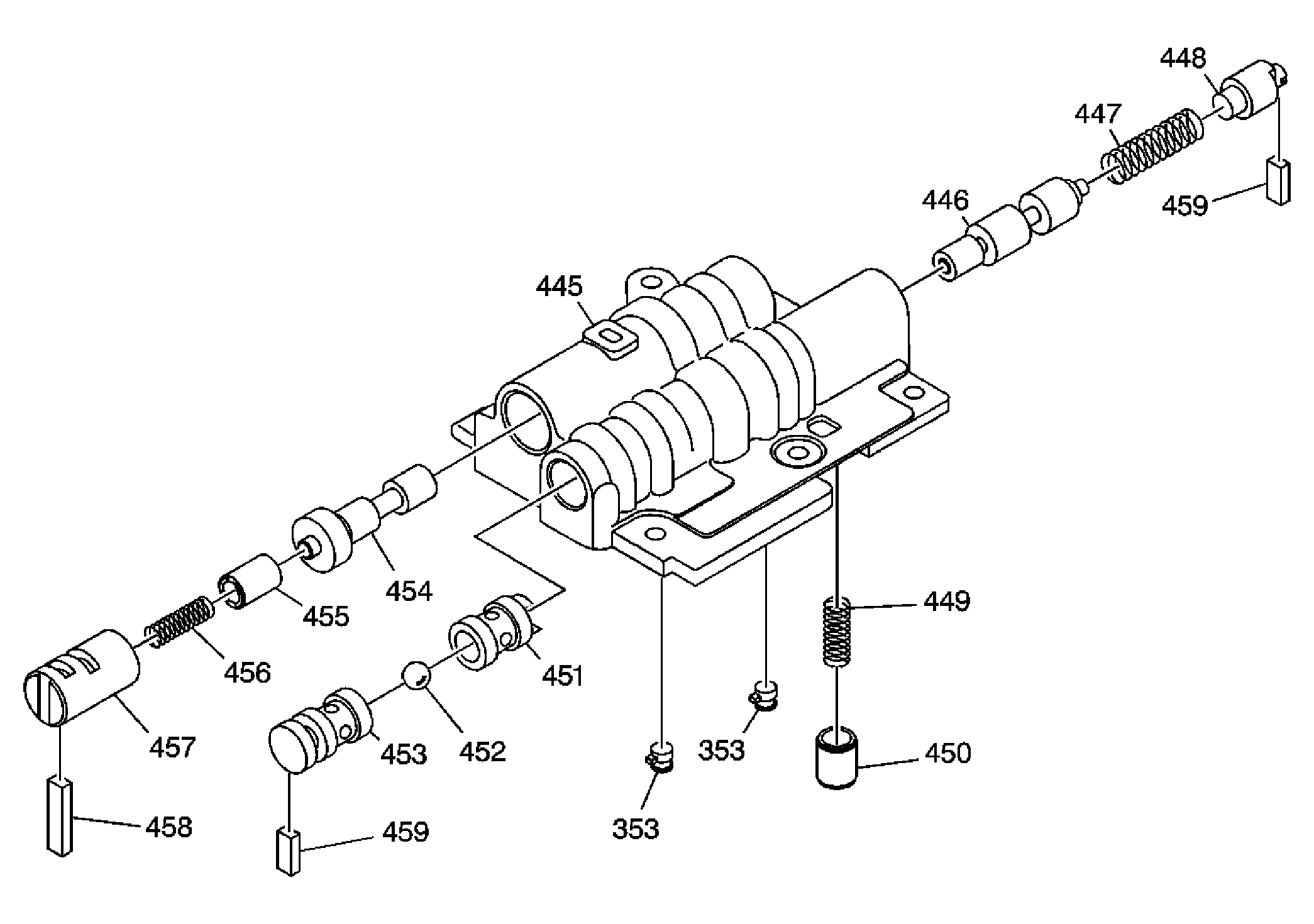

| 445 | No. 2 Rear Control Valve Body |
| 446 | 2nd Clutch (B2) Control Valve |
| 447 | 2nd Clutch (B2) Control Valve Spring - Natural Color |
| 448 | 2nd Clutch (B2) Control Valve Plug |
| 449 | TCC Check Valve Spring - Light Blue |
| 450 | TCC Check Valve |
| 451 | Reverse Shift Restrict Ball Check Valve Bushing - Inner |
| 452 | Reverse Shift Restrict Ball Check Valve |
| 453 | Reverse Shift Restrict Ball Check Valve Bushing - Outer |
| 454 | Lock Up Control Valve |
| 455 | Lock Up Control Valve Plunger |
| 456 | Lock Up Control Valve Spring - Yellow |
| 457 | Lock Up Control Valve Sleeve |
| 458 | Sleeve/Bore Plug Retainer (3.2 x 5 x 21.2) |
| 459 | Sleeve/Bore Plug Retainer (3.2 x 5 x 15) (2) |
| 459 | Sleeve/Bore Plug Retainer (3.2 x 5 x 15) (2) |
| Callout | Component Name |
|---|---|

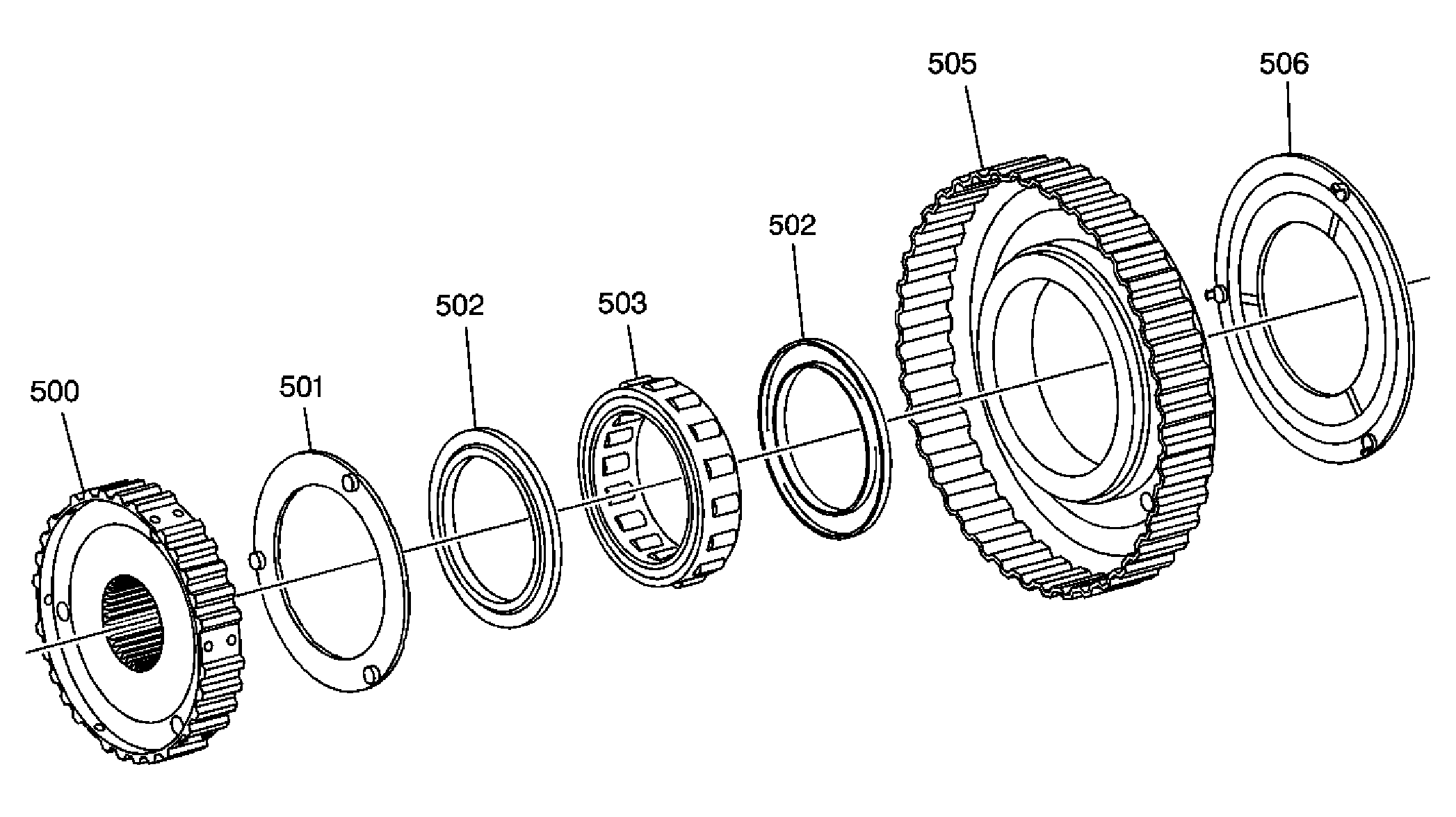

| 500 | Second Coast Clutch Hub |
| 501 | Coast Clutch Hub Thrust Washer |
| 502 | Second Clutch Sprag End Bearing (2) |
| 502 | Second Clutch Sprag End Bearing (2) |
| 503 | Second Clutch Sprag Assembly |
| 505 | Second Clutch Sprag Outer Race Assembly |
| 506 | Second Clutch Sprag Outer Race Thrust Washer |
| Callout | Component Name |
|---|---|

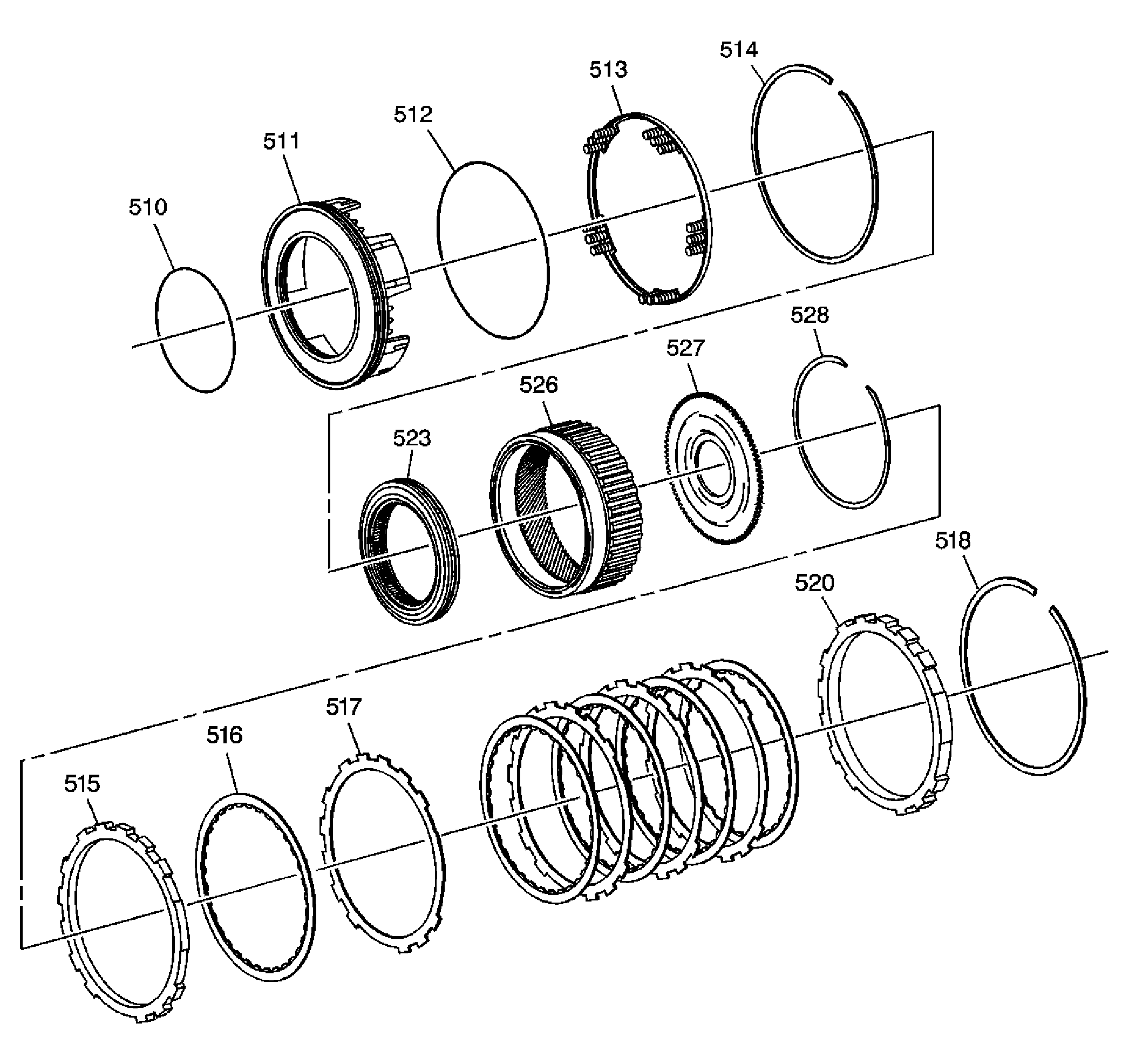

| 510 | Low and Reverse Clutch Piston Inner Seal |
| 511 | Low and Reverse Clutch Piston |
| 512 | Low and Reverse Clutch Piston Outer Seal |
| 513 | Low and Reverse Clutch Spring Assembly |
| 514 | Low and Reverse Clutch Spring Retaining Ring |
| 515 | Low and Reverse Clutch Apply Plate |
| 516 | Low and Reverse Clutch Plate Assembly - Fiber (5) |
| 517 | Low and Reverse Clutch Plate - Steel (4) |
| 518 | Low and Reverse Clutch Plate Retaining Ring |
| 520 | Low and Reverse Clutch Backing Plate |
| 523 | Overrun Roller Clutch Assembly |
| 526 | Front Internal Gear |
| 527 | Front Internal Gear Flange |
| 528 | Front Internal Gear Flange Retaining Ring |
| Callout | Component Name |
|---|---|

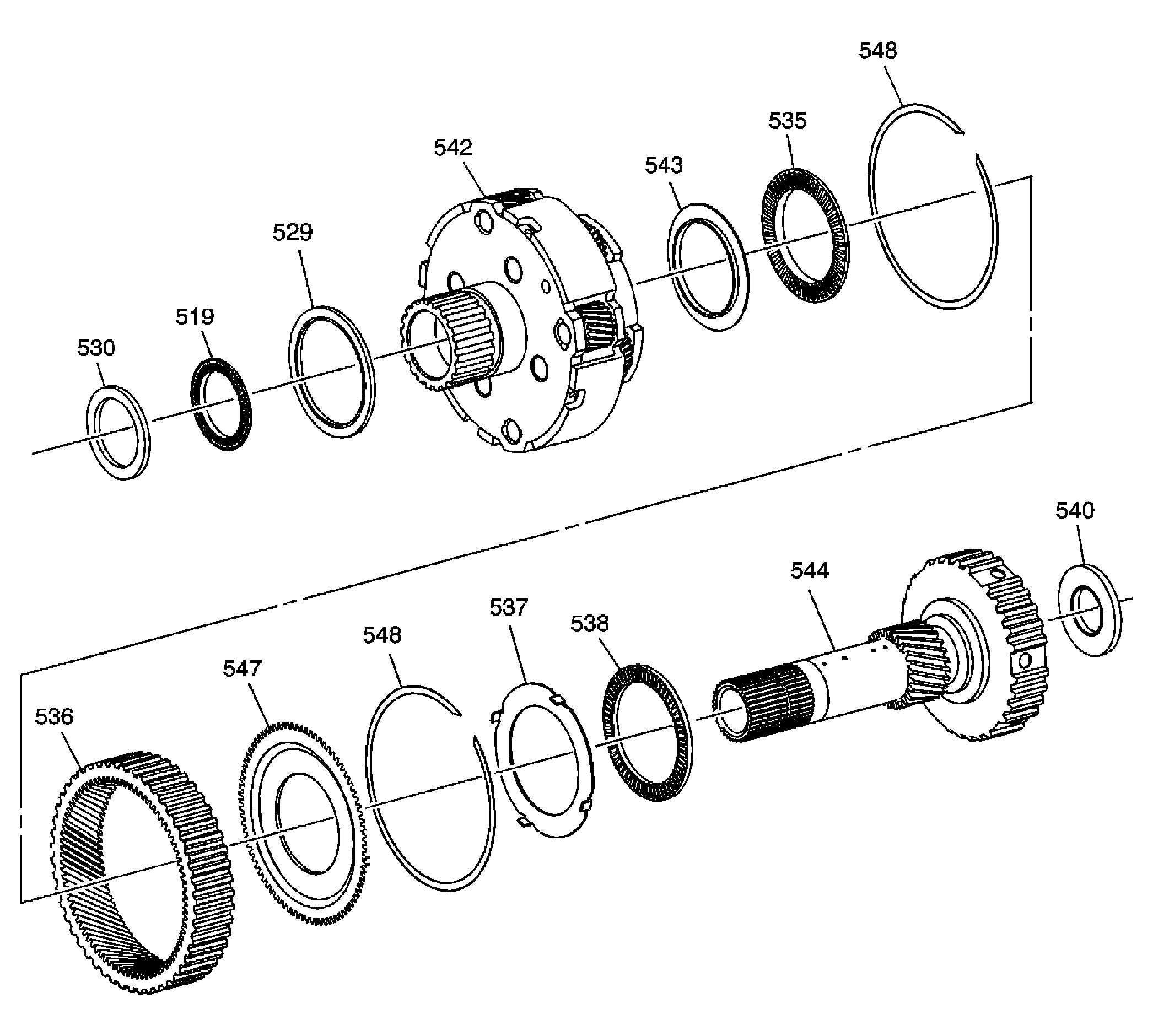

| 519 | Front Internal Gear Thrust Bearing Assembly |
| 529 | Front Internal Gear Thrust Bearing Assembly |
| 530 | Front Internal Gear Thrust Washer Race |
| 535 | Rear Internal Gear Thrust Bearing Assembly |
| 536 | Rear Internal Gear |
| 537 | Rear Sun Gear Thrust Bearing Race |
| 538 | Rear Sun Gear Thrust Bearing Assembly |
| 540 | Input Shaft Thrust Bearing Assembly |
| 542 | Front Carrier Assembly |
| 543 | Front Carrier Thrust Bearing Race |
| 544 | Front Sun Gear |
| 547 | Rear Internal Gear Flange |
| 548 | Rear Internal Gear Flange Retaining Ring (2) |
| Callout | Component Name |
|---|---|
| 550 | Forward Clutch Backing Plate Retaining Ring |
| 551 | Forward Clutch Backing Plate (Selective) |
| 552 | Forward Clutch Plate Assembly - Fiber (4) |
| 553 | Forward Clutch Plate - Steel (4) |
| 554 | Direct Clutch Backing Plate Retaining Ring |
| 555 | Direct Clutch Backing Plate (Selective) |
| 556 | Direct Clutch Plate Assembly - Fiber (4) |
| 557 | Direct Clutch Plate - Steel (4) |
| 558 | Direct Clutch Apply Plate |
| 559 | Direct Clutch Spring Retaining Ring |
| 560 | Direct Clutch Spring Assembly |
| 561 | Direct Clutch Piston Inner Seal |
| 562 | Direct Clutch Piston |
| 563 | Direct Clutch Piston Outer Seal |
| 564 | Forward Clutch Piston Inner Seal |
| 565 | Forward Clutch Piston |
| 566 | Forward Clutch Piston Outer Seal |
| 567 | Forward and Direct Clutch Housing Assembly - with Input Shaft |
| 568 | Forward Clutch Housing Thrust Bearing Race (Selective) |
| 569 | Forward Clutch Housing Thrust Bearing Assembly |
| 570 | Input Shaft O-ring Seal |
| 628 | Forward/Direct Clutch Housing Thrust Bearing Race |
| Callout | Component Name |
|---|---|

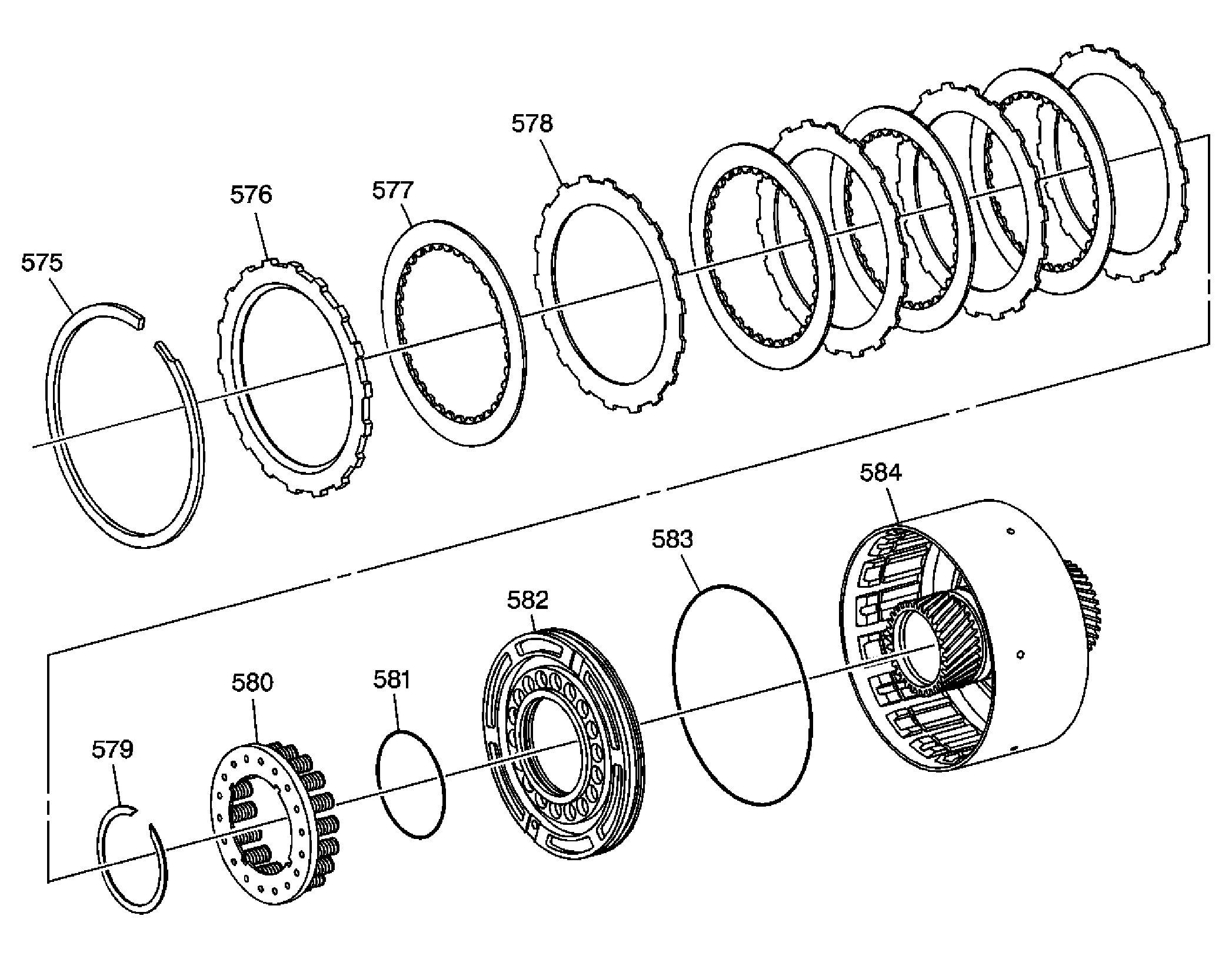

| 575 | 4-5 Clutch Backing Plate Retaining Ring |
| 576 | 4-5 Clutch Backing Plate (Selective) |
| 577 | 4-5 Clutch Plate Assembly - Fiber (4) |
| 578 | 4-5 Clutch Plate - Steel (4) |
| 579 | 4-5 Clutch Piston Return Spring Retaining Ring |
| 580 | 4-5 Clutch Piston Return Spring Assembly |
| 581 | 4-5 Clutch Piston Inner Seal |
| 582 | 4-5 Clutch Piston |
| 583 | 4-5 Clutch Piston Outer Seal |
| 584 | 4-5 Clutch Drum Assembly |
| Callout | Component Name |
|---|---|
| 18 | 1-2 Reverse Carrier Gear Assembly |
| 590 | 1-2 Reverse Carrier Thrust Washer (2) |
| 590 | 1-2 Reverse Carrier Thrust Washer (2) |
| 591 | 1-2 Reverse Carrier Gear Assembly |
| 593 | 1-2 Reverse Internal Gear Front Thrust Bearing Assembly |
| 594 | 1-2 Reverse Internal Gear |
| 595 | 1-2 Reverse Internal Gear Rear Thrust Bearing Assembly |
| 596 | 1-2 Reverse Internal Gear Shim - Selective |
| Callout | Component Name |
|---|---|

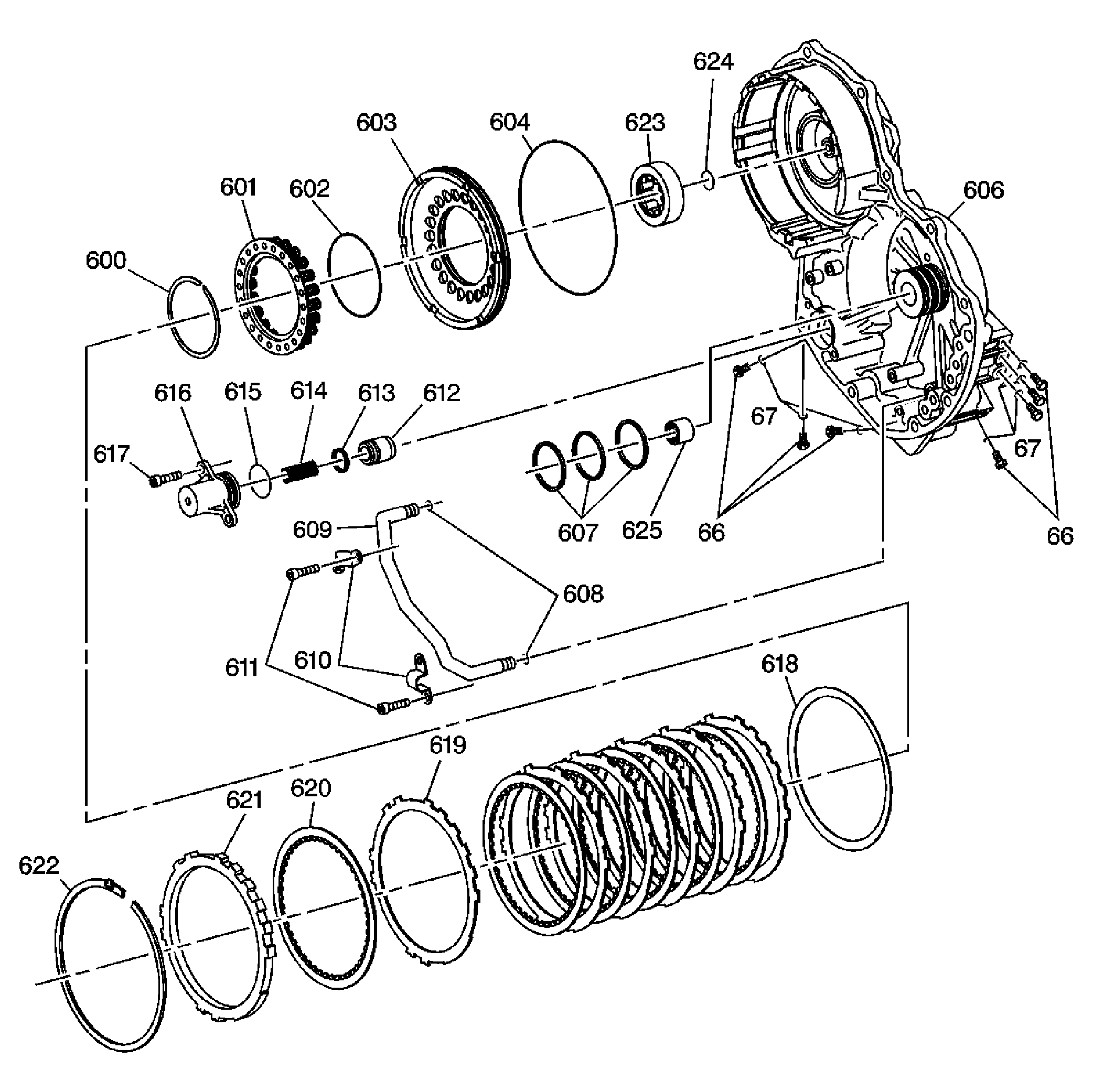

| 66 | Automatic Transmission Fluid Pressure Test Hole Plug (UNF 5/16-24-2A) (7) |
| 66 | Automatic Transmission Fluid Pressure Test Hole Plug (UNF 5/16-24-2A) (7) |
| 67 | Automatic Transmission Fluid Pressure Test Hole Plug O-ring Seal (7) |
| 67 | Automatic Transmission Fluid Pressure Test Hole Plug O-ring Seal (7) |
| 600 | 1-2 Reverse Clutch Piston Return Spring Retaining Ring |
| 601 | 1-2 Reverse Clutch Piston Return Spring Assembly |
| 602 | 1-2 Reverse Clutch Piston Inner Seal |
| 603 | 1-2 Reverse Clutch Piston |
| 604 | 1-2 Reverse Clutch Piston Outer Seal |
| 606 | Automatic Transmission Case Cover Assembly |
| 607 | Forward Clutch Housing Fluid Seal Ring (3) |
| 608 | 4-5 Clutch Apply Pipe Seal (2) |
| 609 | 4-5 Clutch Apply Pipe |
| 610 | 4-5 Clutch Apply Pipe Retainer (2) |
| 611 | 4-5 Clutch Apply Pipe Bolt/Screw (M5 x 0.8 x 12) (4) |
| 612 | Forward Clutch Accumulator Piston |
| 613 | Forward Clutch Accumulator Piston Fluid Seal Ring |
| 614 | Forward Clutch Accumulator Piston Spring - Natural Color |
| 615 | Forward Clutch Accumulator Cover Seal |
| 616 | Forward Clutch Accumulator Cover |
| 617 | Forward Clutch Accumulator Cover Bolt/Screw (M6 x 1.0 x 14.5) (2) |
| 618 | 1-2 Reverse Clutch Apply Plate |
| 619 | 1-2 Reverse Clutch Plate - Steel (6) |
| 620 | 1-2 Reverse Clutch Plate Assembly - Fiber (6) |
| 621 | 1-2 Reverse Clutch Backing Plate (Selective) |
| 622 | 1-2 Reverse Clutch Backing Plate Retaining Ring |
| 623 | Front Differential Transfer Drive Gear Assembly Rear Bearing Assembly |
| 624 | Front Differential Transfer Drive Gear Assembly Lube Seal Ring - Rear |
| 625 | Input Shaft Bearing |
| Callout | Component Name |
|---|---|

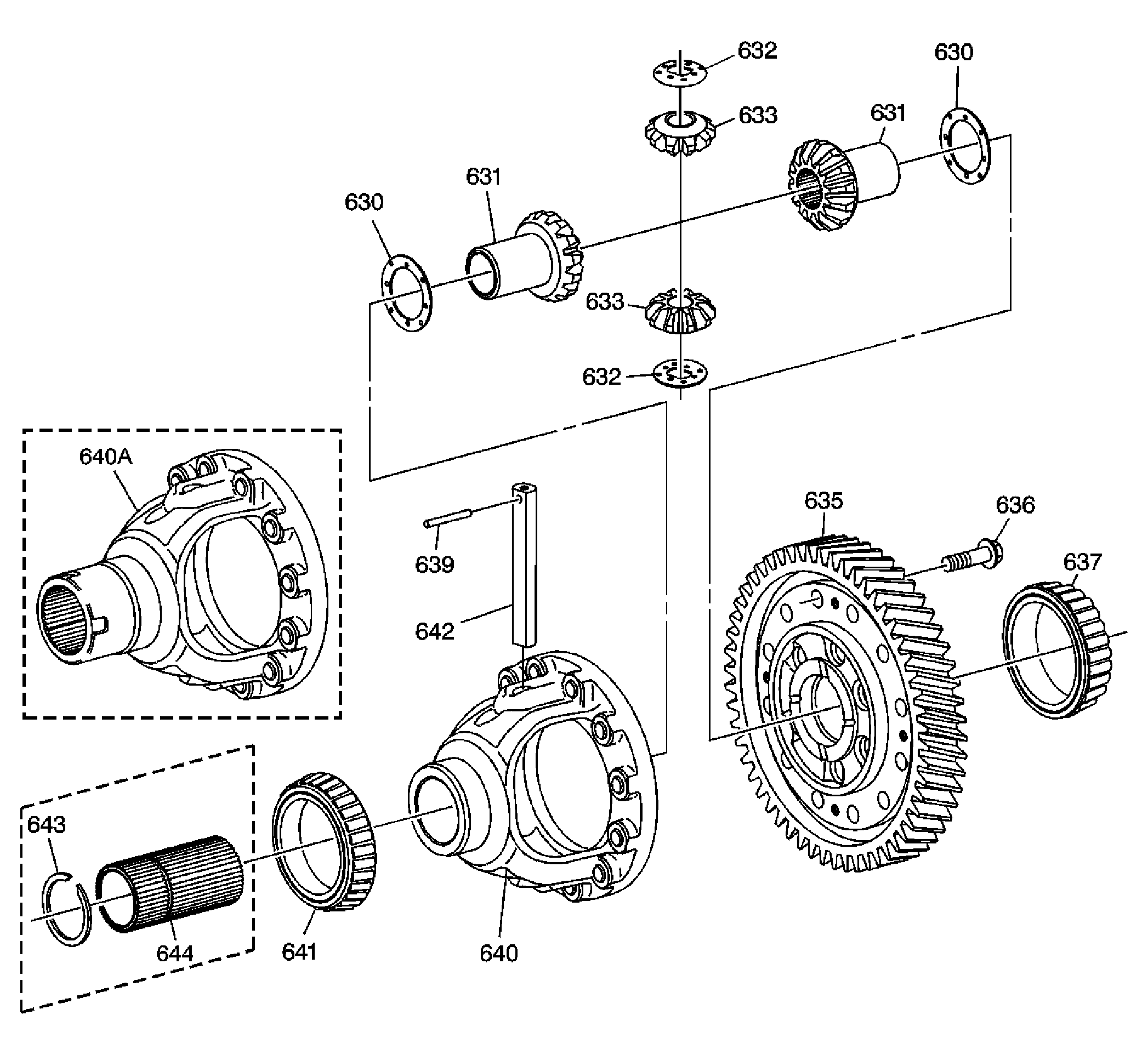

| 630 | Front Differential Side Gear Thrust Washer (2) (Selective) |
| 630 | Front Differential Side Gear Thrust Washer (2) (Selective) |
| 631 | Front Differential Side Gear (2) |
| 631 | Front Differential Side Gear (2) |
| 632 | Front Differential Pinion Shaft Thrust Washer (2) |
| 632 | Front Differential Pinion Shaft Thrust Washer (2) |
| 633 | Front Differential Pinion Gear (2) |
| 633 | Front Differential Pinion Gear (2) |
| 635 | Front Differential Ring Gear |
| 636 | Front Differential Ring Gear Mounting Bolt (M11 x 1.0 x 27) (12) |
| 637 | Front Differential Tapered Outer Roller Bearing (86 mm I.D.) |
| 639 | Front Differential Pinion Shaft Retaining Pin (6 mm x 38 mm) (1) |
| 640 | Front Differential Carrier Assembly - FWD |
| 640a | Front Differential Carrier Assembly - AWD |
| 641 | Front Differential Tapered Outer Roller Bearing (90 mm I.D.) |
| 642 | Front Differential Pinion Shaft (17.0 x 110.4) |
| 643 | Front Differential Pinion Shaft Retaining Ring - AWD |
| 644 | Splined Stub Shaft - AWD Only |

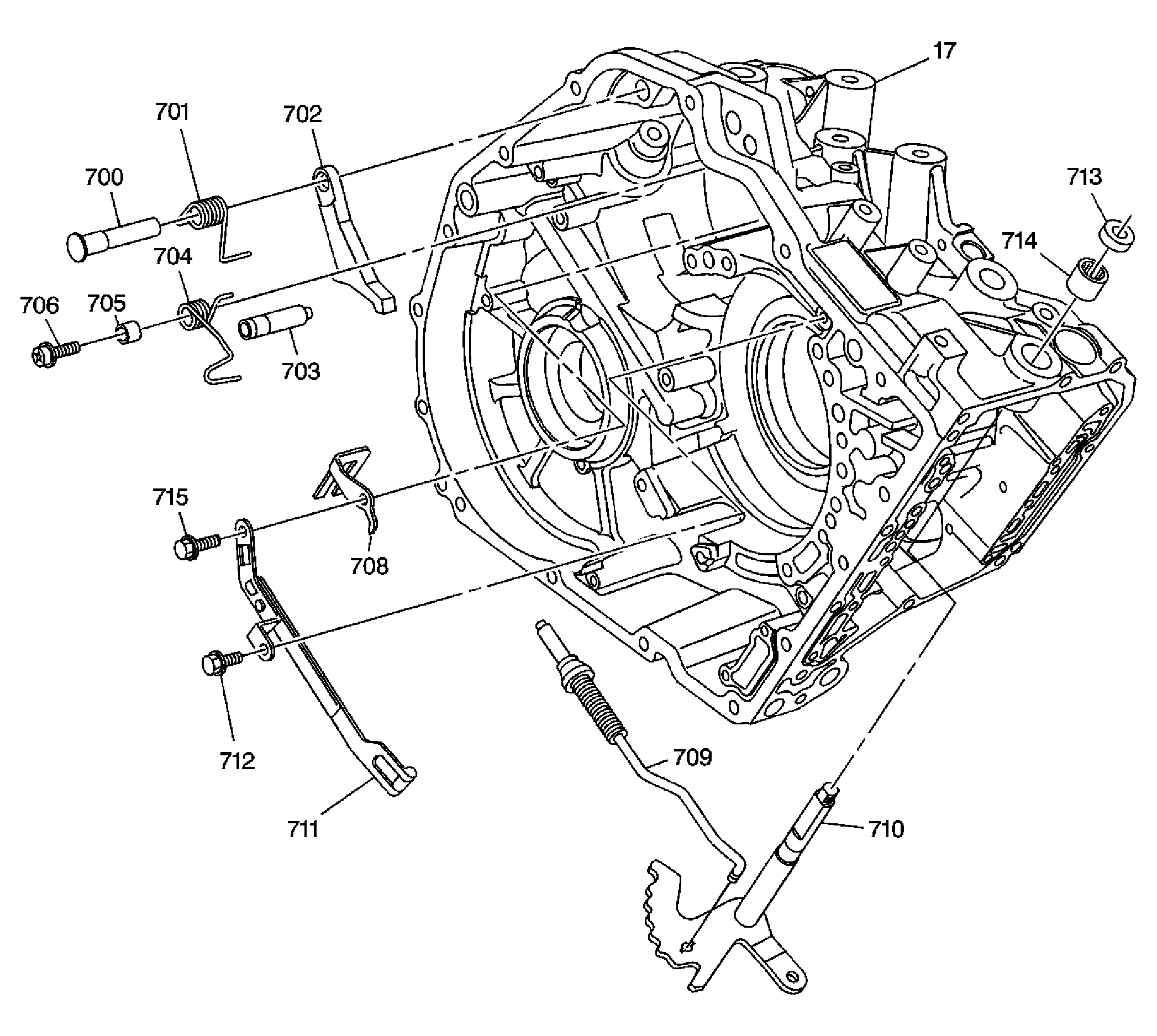

| Callout | Component Name |
|---|---|
| 17 | Automatic Transmission Case |
| 700 | Park Pawl Shaft |
| 701 | Park Pawl Spring - Return |
| 702 | Park Pawl |
| 703 | Park Pawl Spring Pin |
| 704 | Park Pawl Pin Spring |
| 705 | Park Pawl Pin Spring Guide Sleeve |
| 706 | Park Pawl Bolt/Screw (M6 x 1.0 x 25) |
| 708 | Park Pawl Actuator Bracket |
| 709 | Park Pawl Actuator Rod |
| 710 | Manual Shaft Detent Lever Assembly |
| 711 | Manual Shaft Detent Lever Spring |
| 712 | Manual Shaft Detent Spring Bolt/Screw (M6 x 1.0 x 14) and Washer |
| 713 | Manual Shift Shaft Seal Assembly |
| 714 | Manual Shift Shaft Bearing Assembly |
| 715 | Park Pawl Actuator Bracket Bolt/Screw (M6 x 1.0 x 16.7) and Washer |
