Engine Control Module




Component Connector End Views

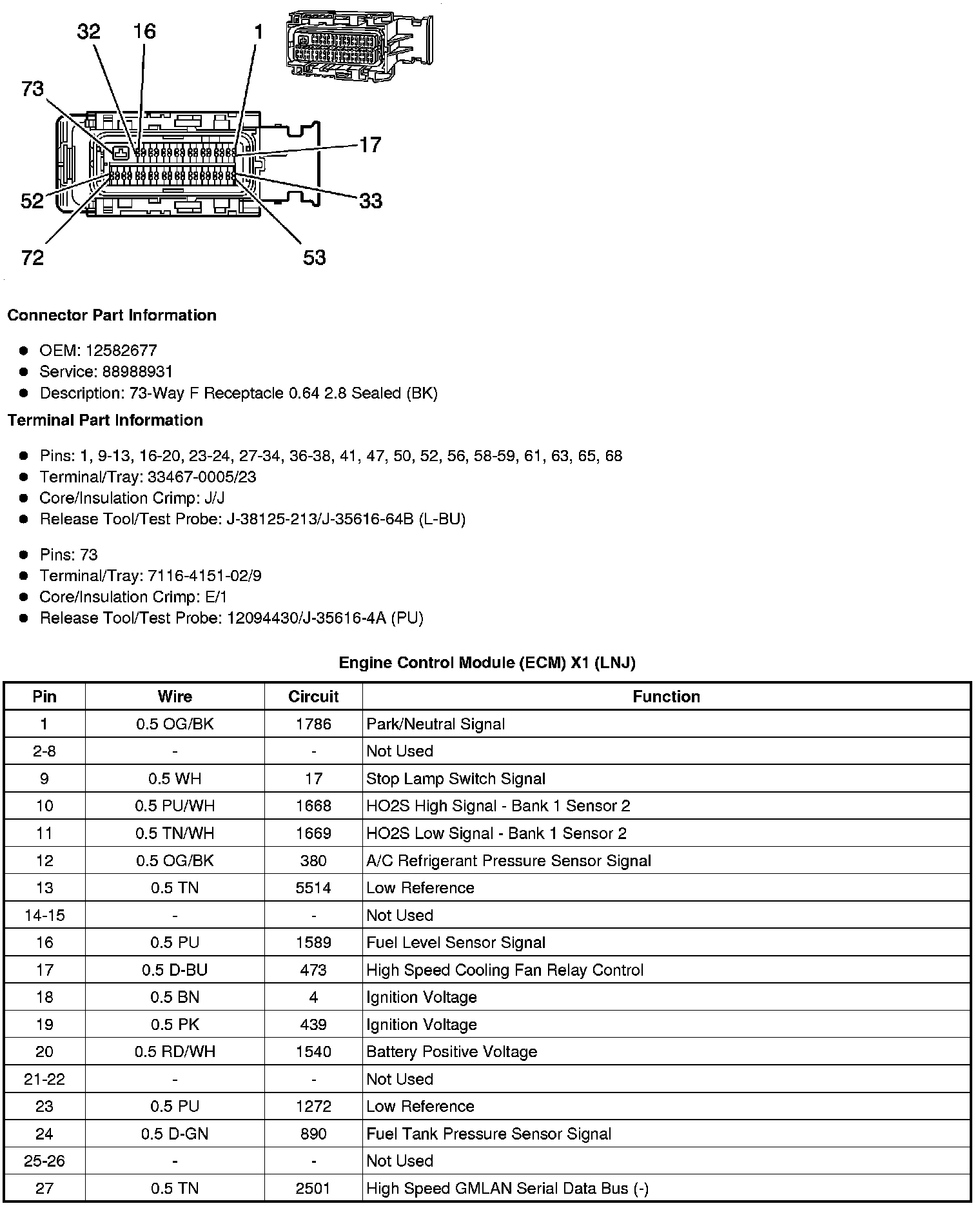

Engine Control Module (ECM) X1 (LNJ)

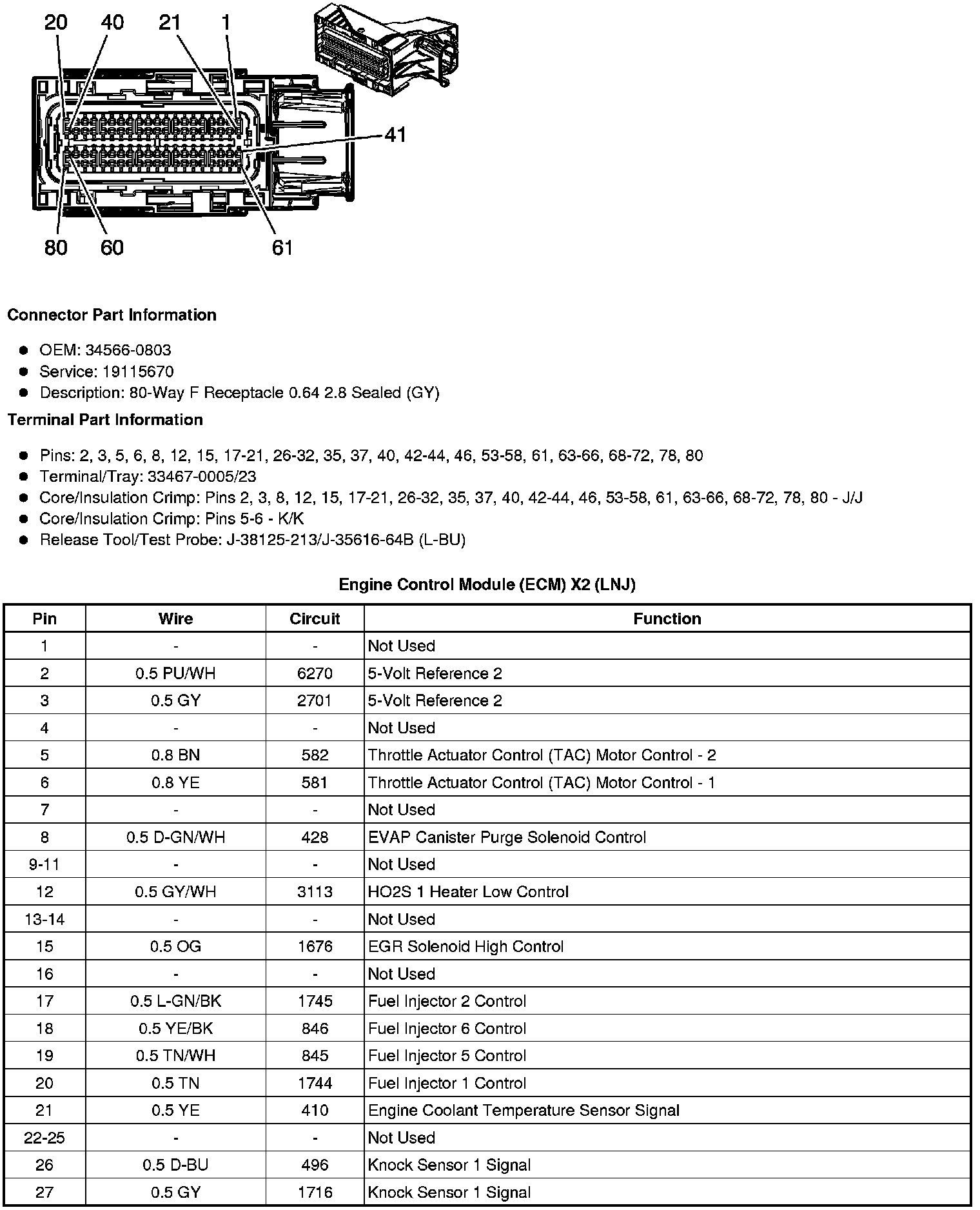

Engine Control Module (ECM) X2 (LNJ)
