Cruise Control Release Switch Replacement

Cruise Control Release Switch Replacement

Removal Procedure

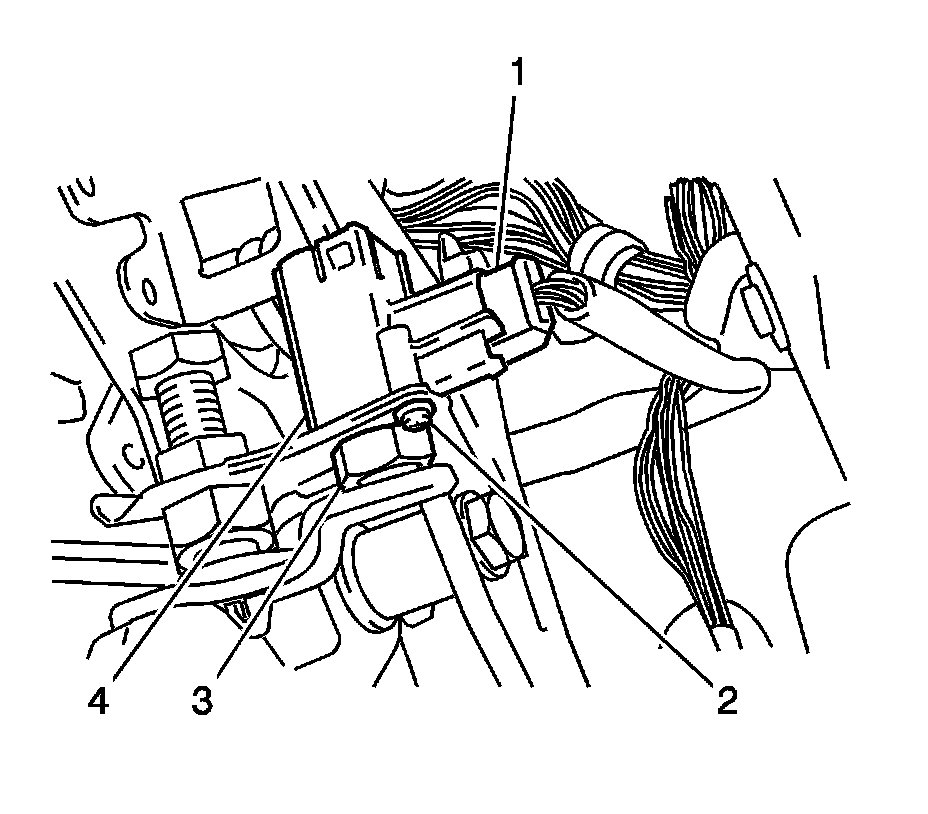

1. Disconnect the cruise control release switch electrical connector (1).
2. Loosen the cruise control release switch locknut (3) and disengage the pin (2).
3. Remove the locknut and the cruise control release switch (4) from the clutch pedal bracket.

Installation Procedure




1. Install the cruise control release switch (4) with the locknut (3) to the clutch pedal bracket.

Caution: Refer to Fastener Caution (Fastener Caution)

2. Engage the pin (2)

Tighten the locknut to 16 Nm (12 lb ft).

3. Connect the cruise control release switch electrical connector (1).
