Tire Pressure Module
Component Connector End Views

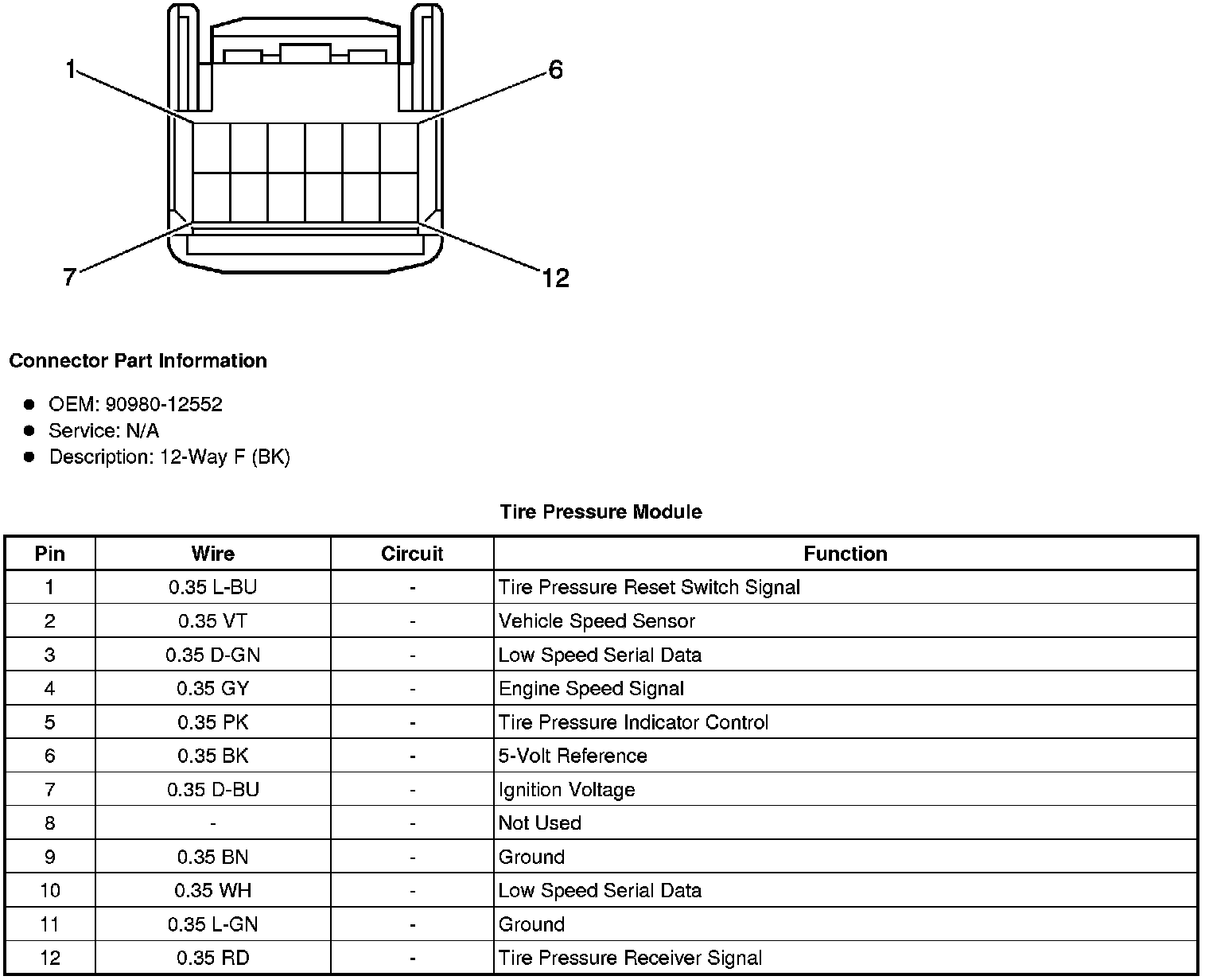

Tire Pressure Module

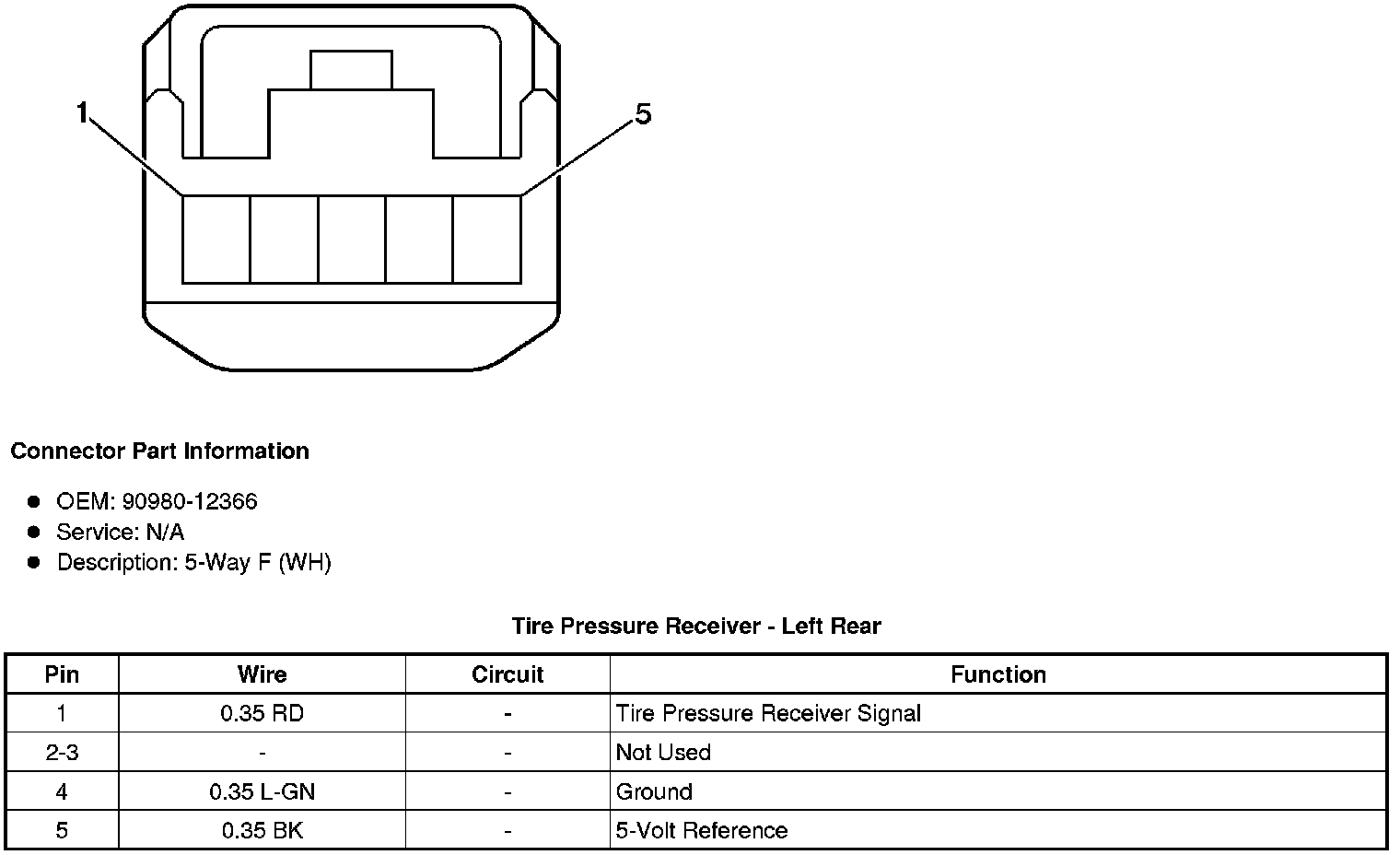

Tire Pressure Receiver - Left Rear
